200W 110V to 24V Isolated DC-DC Converter for Railway Onboard Equipment | MDB200-110S24

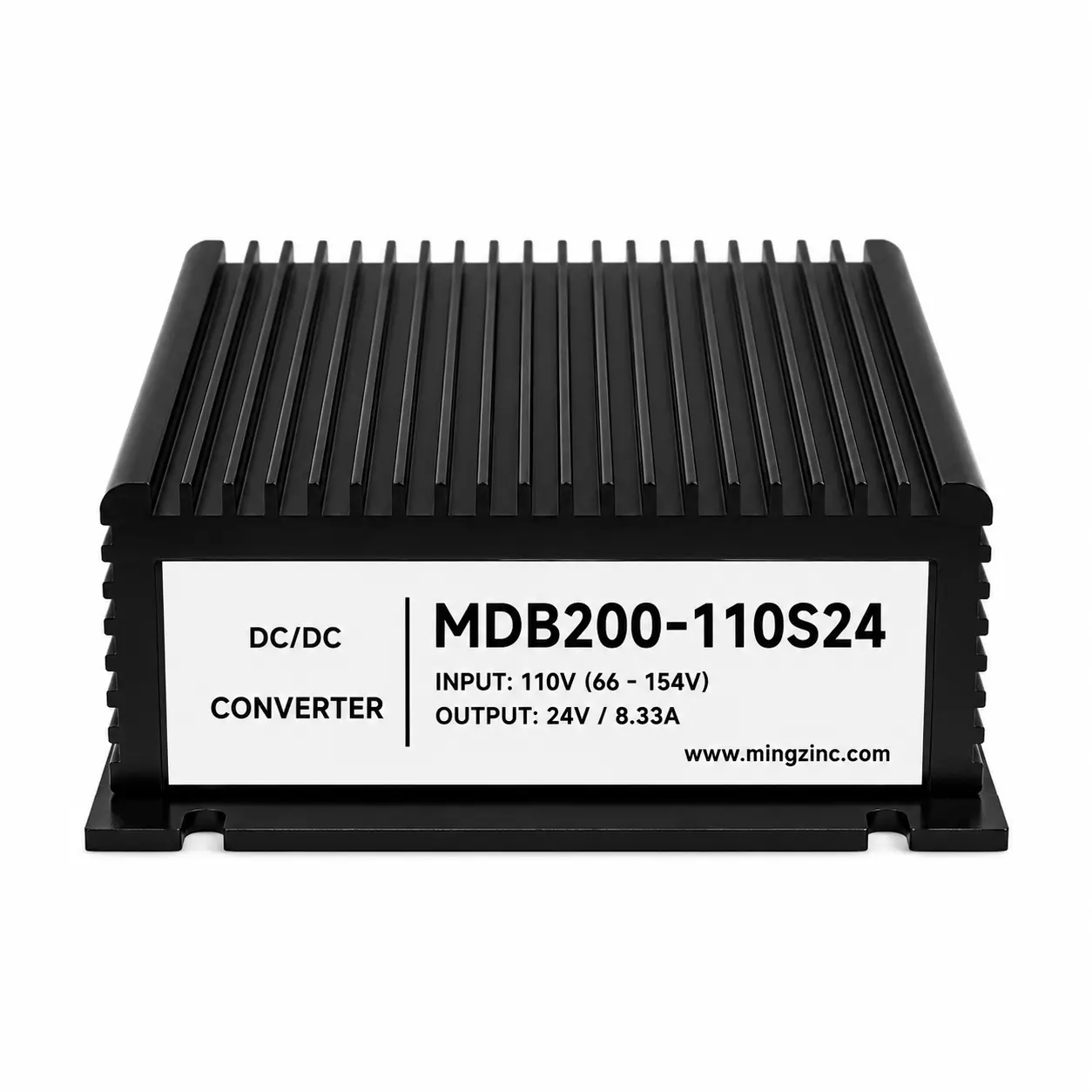

MDB200-110S24 200W Isolated DC-DC Converter

Input: 66–154VDC
Output: 24VDC / 8.33A
Rated Power: 200W
Application: Railway Onboard Auxiliary Equipment Power

The MDB200-110S24 is a 200W isolated DC-DC converter designed to convert a 110VDC railway power bus into stable 24VDC auxiliary power for onboard communication, monitoring and control electronics.

Its 66–154VDC wide input range accommodates practical voltage variations caused by battery charging, discharging and changing onboard loads.

Galvanic isolation creates electrical separation between the 110VDC input power domain and downstream 24V electronics, helping reduce interference coupling and supporting stable operation of communication gateways, monitoring devices, data acquisition units and controllers.

The 200W power capacity provides practical power for multiple 24V auxiliary loads in railway onboard systems.

Typical Applications:

Railway Onboard Equipment
Railway Communication Equipment
Railway Monitoring Systems
Communication Gateways
Data Acquisition Units
Railway Controllers
24V Auxiliary Electronics

Video Description

I. MODELS LIST

Single Channels Output

Only the typical models are listed. If you need another models, please inform the power,Input and output voltage,then feel free to call us.

II. FEATURES

Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load

III. INPUT CHARACTERISTIC

IV. OUTPUT CHARACTERISTIC

V. PROTECTIVE CHARACTERISTIC

GENERAL CHARACTERISTIC

lsolation Voltage

Environmental Characteristics

VI. MECHANICAL DRAWING AND PIN DEFINITION

Stable 24V Auxiliary Power for Railway Onboard Equipment

Railway vehicles may use a 110VDC power architecture, while onboard communication, monitoring, data acquisition and control electronics often require stable 24VDC auxiliary power.

The MDB200-110S24 converts a 66–154VDC input into regulated 24VDC/8.33A output, creating a dedicated isolated auxiliary power path between the railway power bus and sensitive downstream electronics.

Its wide input range helps accommodate voltage variations caused by battery conditions, charging, discharging and changing onboard loads, while galvanic isolation helps reduce electrical interference between the 110VDC main power domain and sensitive 24V electronics.

With 200W output power, the converter provides practical capacity for multiple auxiliary devices and helps engineers simplify the 110VDC-to-24VDC onboard power architecture.

Typical Power Architecture

110VDC Railway Battery / Power Bus
↓
66–154VDC Input
↓
MDB200-110S24 Isolated DC-DC Converter
↓
Stable 24VDC Auxiliary Power
↓
Communication Gateway / Monitoring / Data Acquisition / Controller / Auxiliary Electronics

Why MINGZINC?

MINGZINC develops industrial isolated DC-DC power solutions around actual equipment operating conditions rather than voltage conversion alone.

For railway and onboard equipment projects, we support:

* Wide input voltage customization
* Customized output voltage and power
* Galvanic isolation
* EMI/EMC-resistant power design
* Stable output under load changes
* Thermal and cooling optimization
* Customized interfaces and mounting
* OEM/ODM engineering support

For Power Supply Distributors, DC-DC Converter Suppliers, Railway Equipment Suppliers, System Integrators and Railway Equipment OEMs, MDB200-110S24 can complement existing railway power portfolios with an isolated 24V auxiliary power solution for 110VDC systems.

Need a customized 110VDC-to-24VDC isolated power solution for railway onboard equipment? Contact MINGZINC for technical specifications, sample evaluation and OEM/ODM support.
