1000W 600V to 110V Isolated Waterproof DC-DC Converter for Railway Traction Power Systems

As modern urban rail transit, metro, light rail, tram, and electric locomotive systems continue to develop toward higher intelligence and automation, onboard electrical systems demand increasingly stable and highly reliable auxiliary power supplies.

In most railway traction applications, the primary DC bus typically uses 600VDC or 750VDC overhead catenary power. While this high-voltage DC power is suitable for traction motors and braking systems, critical onboard subsystems require a stable 110VDC auxiliary power supply.

These systems include:

• Train Control and Management System (TCMS)
• Passenger Information System (PIS)
• onboard surveillance systems
• driver cabin instrumentation
• door control systems
• lighting controllers
• signal communication equipment
• data acquisition modules
• sensors and safety systems

To safely convert high-voltage traction power into stable low-voltage control power, a high-power isolated DC-DC converter is essential.

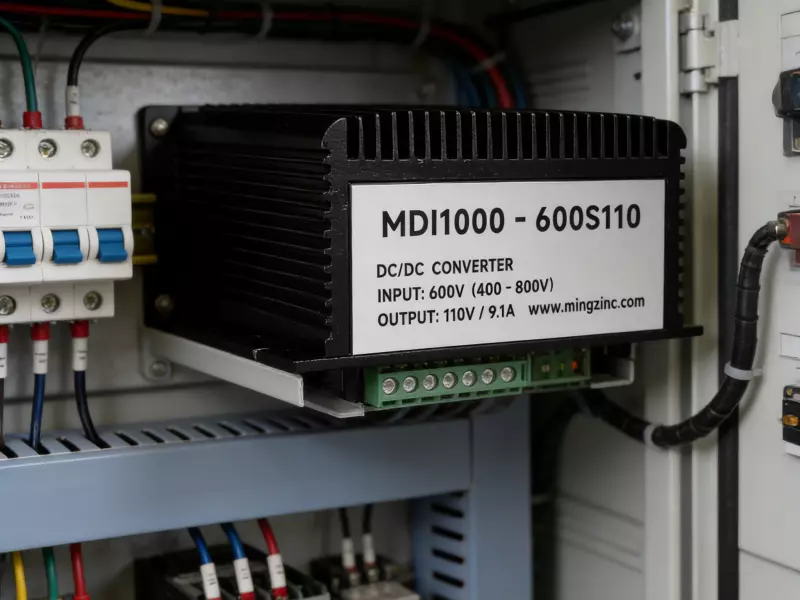

The MDI1000-600S110 from Mingzinc Technology is a 1000W 600V to 110V isolated waterproof DC-DC power module, specifically engineered for railway and rail transit power conversion environments.

Its fully sealed aluminum alloy housing, high-voltage isolation design, IP65 protection, and excellent EMI resistance make it ideal for demanding railway onboard applications.

Why Railway Systems Need 600V / 750V to 110V DC-DC Power Conversion

Railway traction systems commonly operate with:

600VDC / 750VDC traction bus → 110VDC auxiliary systems

However, high-voltage traction lines often experience:

• voltage fluctuations
• surge transients
• regenerative braking spikes
• EMI noise from motors
• vibration shock
• harsh temperature changes

Without proper isolated conversion, these disturbances may cause:

• TCMS faults
• communication failures
• system reboot
• signal interruption
• equipment damage

Therefore, the standard solution is to use a:

600V to 110V isolated DC-DC converter module

to ensure safe, stable, and interference-resistant auxiliary power.

Typical Railway Applications of MDI1000-600S110

The MDI1000-600S110 is widely used in:

Metro & Light Rail Systems

Converts traction DC bus power into stable 110VDC for:

• TCMS
• PIS displays
• CCTV systems
• driver console
• door controllers
• HVAC control units

Electric Locomotives & Rail Engineering Vehicles

Provides isolated auxiliary power for:

• control electronics
• signal units
• communication systems
• instrumentation modules

Trackside Signal & Communication Equipment

Supplies stable 110VDC to:

• signal control cabinets
• communication repeaters
• monitoring systems

Core Electrical Specifications

Optional versions available:

• input voltage: 18V–800V
• power range: 600W–1000W
• single / multi-output customization

Key Technical Advantages

Wide Input Voltage Range for Railway Power Fluctuation

Supports 400–800VDC wide input, fully compatible with:

• 600VDC rail systems
• 750VDC rail systems
• voltage drop
• regenerative spikes
• cable losses

This ensures stable 110VDC output under dynamic rail operating conditions.

High Isolation for Maximum Equipment Safety

The module adopts high-voltage electrical isolation between input and output, effectively suppressing:

• surge interference
• voltage spikes
• common-mode noise
• electromagnetic disturbance

This protects sensitive train control electronics.

Excellent Thermal Performance

The fully sealed aluminum housing with cooling fins provides:

• excellent heat dissipation
• fanless natural cooling
• long-term full-load stability

Suitable for:

• electrical cabinets
• vehicle chassis installation
• compact enclosed spaces

Low Ripple and Low Noise Output

Built-in wide-band noise filtering helps ensure clean power for:

• communication systems
• control processors
• signal modules
• onboard displays

This significantly improves system stability.

Comprehensive Protection Features

The MDI1000-600S110 includes:

• input undervoltage protection
• input overvoltage protection
• overtemperature protection
• output overcurrent protection
• output short circuit protection

These protection mechanisms maximize equipment lifespan and operational safety.

IP65 Waterproof and Dustproof Design

Railway environments are extremely harsh, often involving:

• high humidity
• metal dust
• vibration shock
• oil mist
• outdoor exposure

With IP65 protection and full potting encapsulation, this converter is suitable for:

• roof-mounted systems
• undercarriage installations
• trackside cabinets
• outdoor rail equipment

Flexible Custom Power Solutions

Mingzinc Technology provides extensive customization options:

• 18V–800V custom input
• 600W–1000W custom power
• multi-output versions
• special mounting dimensions
• reinforced EMI/EMC design

OEM / ODM service available.

About Guangdong Mingzinc Technology Co., Ltd.

Guangdong Mingzinc Technology Co., Ltd. specializes in:

• railway power supplies
• industrial DC-DC converters
• high-voltage isolated power modules
• new energy power solutions

With strong R&D capabilities and strict quality control, our products are widely used in:

• rail transit
• industrial automation
• renewable energy
• communication equipment
• smart manufacturing

Get the MDI1000-600S110 Datasheet

If you are looking for a 600V / 750V to 110V 1000W isolated waterproof DC-DC converter for railway traction systems, metro trains, or electric locomotives, contact Mingzinc engineers today for datasheets and technical support.
