With the continuous development of railway transportation, metro systems, and light rail networks, onboard electronic subsystems are becoming increasingly intelligent and interconnected. As a result, power modules used in railway environments must meet higher requirements for stability, electrical isolation, vibration resistance, and electromagnetic interference protection.

Many railway platforms operate using 110VDC onboard power architecture, while subsystems such as signal processing units, communication modules, monitoring systems, sensors, and control electronics require stable 12VDC auxiliary power.

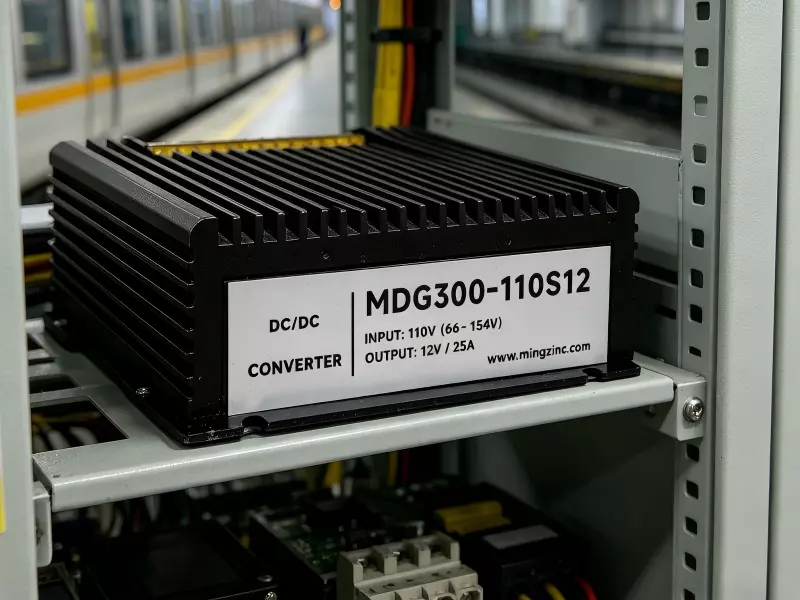

The MINGZINC MDG300-110S12 is a 300W isolated 110VDC to 12VDC IP65 waterproof DC-DC converter specifically designed for railway onboard auxiliary power systems. It delivers stable output performance in harsh rail environments and ensures reliable operation of critical train electronics.

Why Railway Systems Require an Isolated 110VDC to 12VDC Converter

Typical railway onboard architecture:

110VDC main power system
→ auxiliary subsystem conversion
→ stable 12VDC control electronics supply

12V subsystems typically include:

train communication modules
signal acquisition equipment
monitoring electronics
sensor systems
control interfaces
embedded processors

During railway operation, events such as:

traction switching
regenerative braking
electromagnetic interference
voltage fluctuation across DC bus

can introduce surge spikes and noise interference.

Using a non-isolated converter may cause:

communication instability
sensor failure
controller reset
signal processing interruption

Therefore, railway onboard systems should adopt:

isolated 110VDC to 12VDC DC-DC converters for safe auxiliary power distribution

Typical Applications of MDG300-110S12 in Rail Transit Systems

The MDG300-110S12 is widely used in:

train onboard control electronics
railway signal acquisition modules
metro communication systems
light rail auxiliary power systems
train monitoring platforms
rail sensor interfaces
rail embedded processors
industrial AI railway subsystems

Its fast dynamic response ensures stable 12V output during load switching and voltage disturbances in railway environments.

Key Electrical Specifications

Model: MDG300-110S12
Rated Power: 300W
Input Voltage: 110VDC
Input Range: 66–154VDC
Output Voltage: 12VDC
Output Current: 25A
Isolation Type: Input-output electrical isolation
Protection Level: IP65 Waterproof
Housing: Fully sealed aluminum enclosure
Cooling Method: Natural convection cooling
Dimensions: 180 × 110 × 39 mm

Optional configurations:

200W–300W power range available
single-output or dual-output versions available
high-voltage input options available

Core Technical Advantages for Railway Applications

Wide Input Voltage Range for Railway DC Bus Stability

Supports 66–154VDC wide input range, ensuring compatibility with:

railway onboard voltage fluctuation
traction switching disturbance
cable voltage drop conditions

Dual Electrical Isolation Protection for System Safety

The module provides:

input-to-output electrical isolation
enhanced system safety protection
human safety assurance in rail environments

ensuring reliable operation of onboard electronics.

Low Ripple and Noise Output for Sensitive Rail Electronics

Integrated filtering suppresses:

surge voltage
spike interference
EMI disturbance

supporting stable performance of railway communication and control modules.

Fully Sealed Aluminum Housing with Excellent Thermal Performance

The aluminum enclosure provides:

efficient heat dissipation
fanless operation
compact installation flexibility
long operational lifespan

Superior Environmental Resistance for Railway Conditions

Internal thermal insulation potting structure enables:

anti-vibration protection
anti-moisture performance
anti-dust protection
anti-corrosion resistance

ideal for harsh rail transit environments.

Fast Dynamic Response During Load Switching Events

Maintains stable output during:

traction transitions
power switching
communication system load changes

ensuring uninterrupted subsystem operation.

Comprehensive Protection Features

The MDG300-110S12 includes:

input undervoltage protection
output overvoltage protection
output overcurrent protection
short circuit protection
overtemperature protection
input-output isolation protection

ensuring safe long-term railway operation.

IP65 Waterproof Protection for Harsh Rail Environments

Railway electronics typically operate in:

sealed onboard cabinets
vibration-intensive platforms
dust-heavy tunnel environments
humid outdoor rail infrastructure

The fully sealed structure ensures IP65 environmental protection, improving long-term reliability.

Flexible Integration Across Multiple Industries

Besides rail transit systems, the MDG300-110S12 is also suitable for:

artificial intelligence equipment
medical electronics
solar auxiliary control systems
industrial embedded platforms
communication infrastructure

providing flexible integration across multiple engineering applications.

Compliance with International Safety Standards

Designed according to:

UL1950
IEC950

supporting equipment manufacturers in passing global compliance requirements.

About Guangdong Mingzinc Technology Co., Ltd.

Guangdong Mingzinc Technology Co., Ltd., located in Dongguan, China, specializes in AC-DC modules, DC-DC converters, railway power supplies, industrial control power modules, and renewable energy power solutions used in rail transit, automation, AI equipment, and medical systems worldwide.

Get the MDG300-110S12 Datasheet

If you are designing railway onboard electronics, signal acquisition platforms, communication modules, or metro auxiliary control systems, contact MINGZINC engineers today to obtain the MDG300-110S12 datasheet and integration support.
