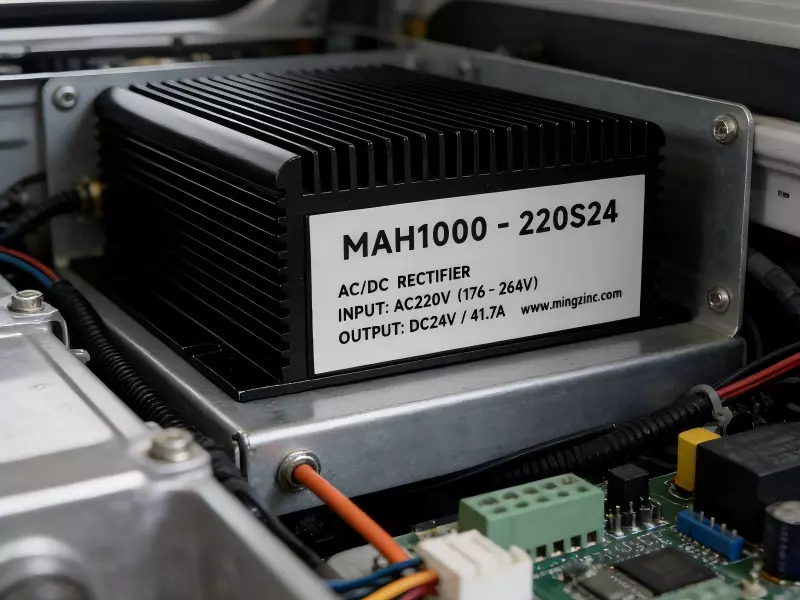

MAH1000-220S24 1000W 220VAC to 24VDC AC-DC Power Module for Commercial Electric Vehicles and Special Vehicle Systems

Modern commercial electric vehicles and special-purpose vehicles require stable and reliable 24V DC auxiliary power systems to support onboard control electronics, communication platforms, monitoring equipment, and actuator subsystems.

The MAH1000-220S24 AC-DC power module from Guangdong Mingzinc Technology converts 176–264VAC input into stable 24VDC output, providing high-efficiency power conversion, electrical isolation protection, and IP65 environmental durability for demanding vehicle applications.

Why Commercial EV Systems Require Reliable 24V AC-DC Power Modules

Commercial EV platforms typically require:

Auxiliary control system power supply
Vehicle communication module power
Onboard monitoring system power
Vehicle terminal controller power
Auxiliary actuator system power

The MAH1000-220S24 ensures stable and reliable DC output for these critical vehicle subsystems.

Key Specifications of MAH1000-220S24

Model: MAH1000-220S24
Rated Power: 1000W
Input Voltage: 176–264VAC
Output Voltage: 24VDC
Output Current: 41.6A
Cooling Method: Natural Cooling with Aluminum Heat Sink Housing
Protection Level: IP65
Safety Standards: UL1950 / IEC950
Dimensions: 240 × 182 × 81 mm

Optional power range available:

600W–1000W
Multi-output customization supported

Typical Applications in Electric Vehicle Systems

The MAH1000-220S24 is widely used in:

Commercial electric vehicles
Special-purpose electric vehicles
Onboard control electronics
Vehicle communication systems
Vehicle monitoring systems
Auxiliary vehicle subsystems

Key Technical Advantages

Wide AC Input Voltage Range

Supports 176–264VAC input range

Ensures stable operation under varying external power conditions.

Inrush Current Suppression Circuit

Reduces startup surge current

Improves system reliability

Extends equipment lifetime

Low Ripple and Noise Output

Integrated EMI filtering improves stability of onboard electronic control systems.

High Electrical Isolation Protection

Protects downstream vehicle electronics

Improves safety performance of EV auxiliary systems

Protection Features

Input undervoltage protection
Over-temperature protection
Output overcurrent protection
Short circuit protection

Ensures reliable long-term operation.

IP65 Aluminum Housing for Vehicle Installation

Fully sealed aluminum enclosure provides:

Dust protection
Moisture resistance
Water spray protection

Suitable for harsh vehicle operating environments.

Customization Support from Mingzinc Technology

We provide:

Voltage customization
Power level customization
Mechanical structure customization
Multi-output configuration
OEM / ODM services

Contact Mingzinc Technology for Datasheet

If you are designing auxiliary power systems for commercial electric vehicles or special-purpose vehicles and require a reliable 1000W 24V AC-DC power module, contact Mingzinc Technology for technical support and datasheets.
