Railway signaling systems operate in some of the most demanding environments imaginable. Extreme temperature swings from -40°C to +85°C, constant vibration from passing trains, and severe electromagnetic interference from traction power systems all conspire to disrupt sensitive control electronics. Engineers face critical challenges:
- Wide voltage fluctuations in railway battery systems (9–36VDC) demand converters that can handle 2:1 input ranges without output drift
- Galvanic isolation is mandatory to prevent ground loops between high-voltage traction power and low-voltage signaling circuits
- Space constraints in trackside cabinets and control panels require compact, high-density power solutions
- Reliability must be absolute — a single power failure can halt train operations across an entire corridor

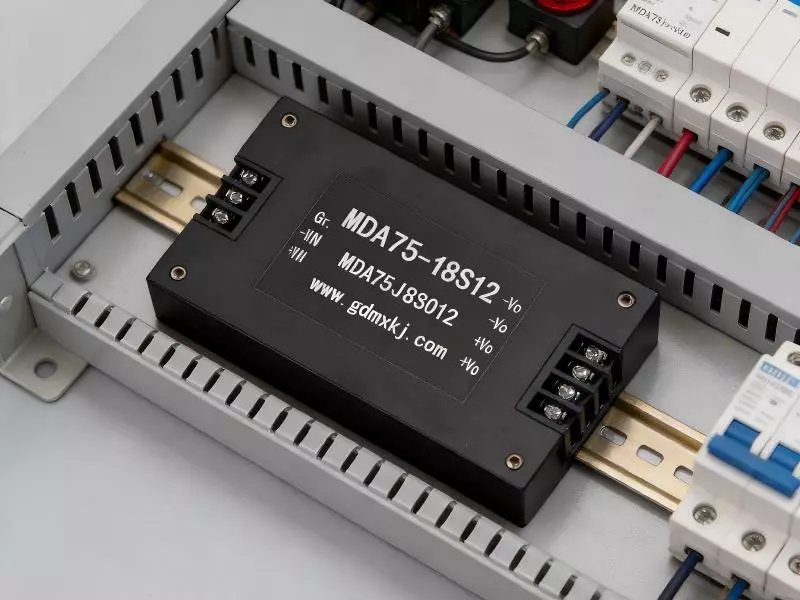

The MDA75-18S12 is a 75W isolated DC-DC converter purpose-built for demanding industrial and transportation applications.
| Parameter |
Specification |
| Model |
MDA75-18S12 |
| Nominal Input Voltage |
18 VDC |
| Input Voltage Range |
9–36 VDC (2:1 wide range) |
| Output Voltage |
12 VDC |
| Output Current |
6.25 A |
| Output Power |
75 W |
| Ripple & Noise (PK-PK) |
120 mV |
| Efficiency (Typ) |
83% |
| Isolation (Input-Output) |
>1500 VDC |
| Isolation (Input-Case) |
>1050 VDC |
| Isolation (Output-Case) |
>500 VDC |
| Operating Temperature |
-25°C to +85°C (Industrial) / -40°C to +85°C (Military I) / -55°C to +85°C (Military II) |
| Dimensions |
116.4 × 65 × 22 mm |
| Protections |
Input under/over voltage, over temperature, output over current, output short circuit |
| Switching Frequency |
100–200 KHz |
In railway signaling infrastructure, the MDA75-18S12 directly addresses the core power challenges. Its 9–36VDC wide input range accommodates the voltage swings common in 24V railway battery banks during charging and discharge cycles, ensuring stable 12V output for signal controllers, track circuits, and interlocking systems.
The >1500VDC input-output isolation creates a critical safety barrier between the traction power domain and sensitive signaling electronics, eliminating ground loops and suppressing common-mode noise that could cause false signal indications. With five comprehensive protection functions — input under/over voltage, over temperature, output over current, and short circuit — the converter self-protects against the electrical transients and surges that are routine in railway environments.
The converter's compact metal case with dual-side pin-out enables easy installation in space-constrained trackside cabinets and signal housings, while the military-grade temperature options (-55°C to +85°C) ensure reliable operation from arctic winters to desert summers.
- π-type input filter for superior EMI performance in electrically noisy environments
- High power density in a compact, shielded metal enclosure
- 2:1 wide input voltage range covering standard 18V battery systems
- High reliability, long lifetime design for mission-critical railway applications
- Dual-side pin-out for simplified PCB integration and maintenance
The MDA75-18S12 combines 75W isolated power conversion, 2:1 wide input range, and >1500VDC galvanic isolation in a compact, rugged package — making it an ideal power solution for railway signaling systems that demand absolute reliability under the harshest operating conditions.
