1000W 600V to 24V Isolated DC-DC Converter for New Energy Electric Vehicles
As new energy electric vehicles, commercial EVs, and special electric vehicles continue to evolve toward higher voltage platforms, 600VDC battery bus systems have become increasingly common.
However, critical onboard electronic systems typically require stable 24VDC auxiliary power, including:
- BMS modules
- vehicle control units
- AI computing systems
- communication modules
- sensors
- cameras
- LiDAR
- relay controls

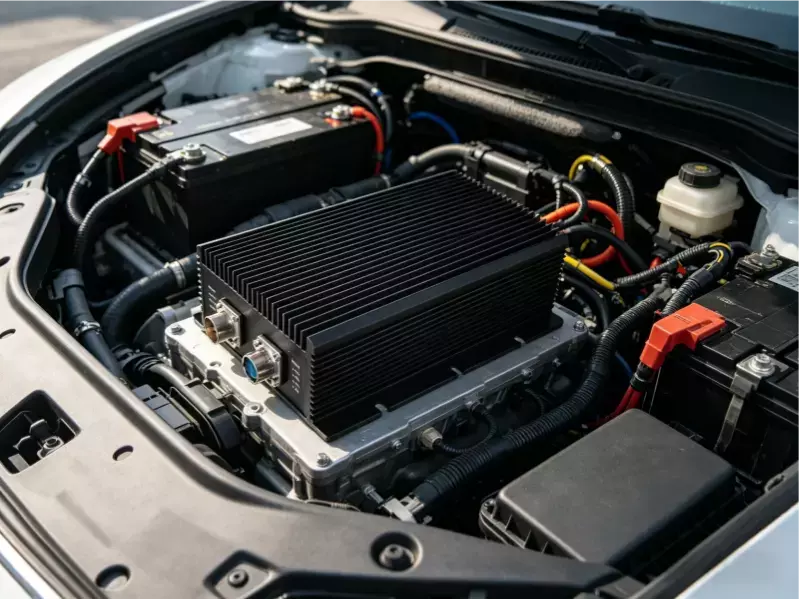

The MDI-H1000-600S24 from Mingzinc Technology is a 1000W 600V to 24V isolated waterproof DC-DC converter, specifically designed for electric vehicle high-voltage auxiliary power systems.
Its fully sealed aluminum housing, IP65 protection, low ripple output, and dual electrical isolation make it highly suitable for demanding EV environments.
Key Specifications
| Parameter | Specification |
|---|---|
| Model | MDI-H1000-600S24 |
| Rated Power | 1000W |
| Input Voltage | 600VDC |
| Input Range | 400–800VDC |
| Output Voltage | 24VDC |
| Output Current | 41.6A |
| Protection | IP65 |
| Cooling | Natural cooling |
| Size | 240×182×81mm |
Optional input ranges:
- 18–36VDC
- 36–72VDC
- 66–154VDC
- 400–800VDC
Power options:
- 600W
- 800W
- 1000W
Why EV Systems Need 600V to 24V Isolated Conversion
In electric vehicle systems, high-voltage bus disturbances such as:
- regenerative spikes
- switching surge
- motor EMI
- battery fluctuation
can directly affect low-voltage control systems.
An isolated DC-DC converter effectively protects downstream electronics and improves system reliability.
Typical Applications
Suitable for:
- electric buses
- commercial EVs
- logistics vehicles
- AGV platforms
- autonomous driving systems
- onboard AI controllers
- battery auxiliary power systems
Technical Advantages
- wide 400–800VDC input
- dual electrical isolation
- 24V 41.6A high current output
- low ripple noise
- anti-surge protection
- IP65 waterproof design
- vibration resistance
- long service life
About Mingzinc Technology
Guangdong Mingzinc Technology Co., Ltd. specializes in industrial power supplies, DC-DC converters, railway power modules, and EV auxiliary power solutions, serving automation, transportation, and new energy industries worldwide.
