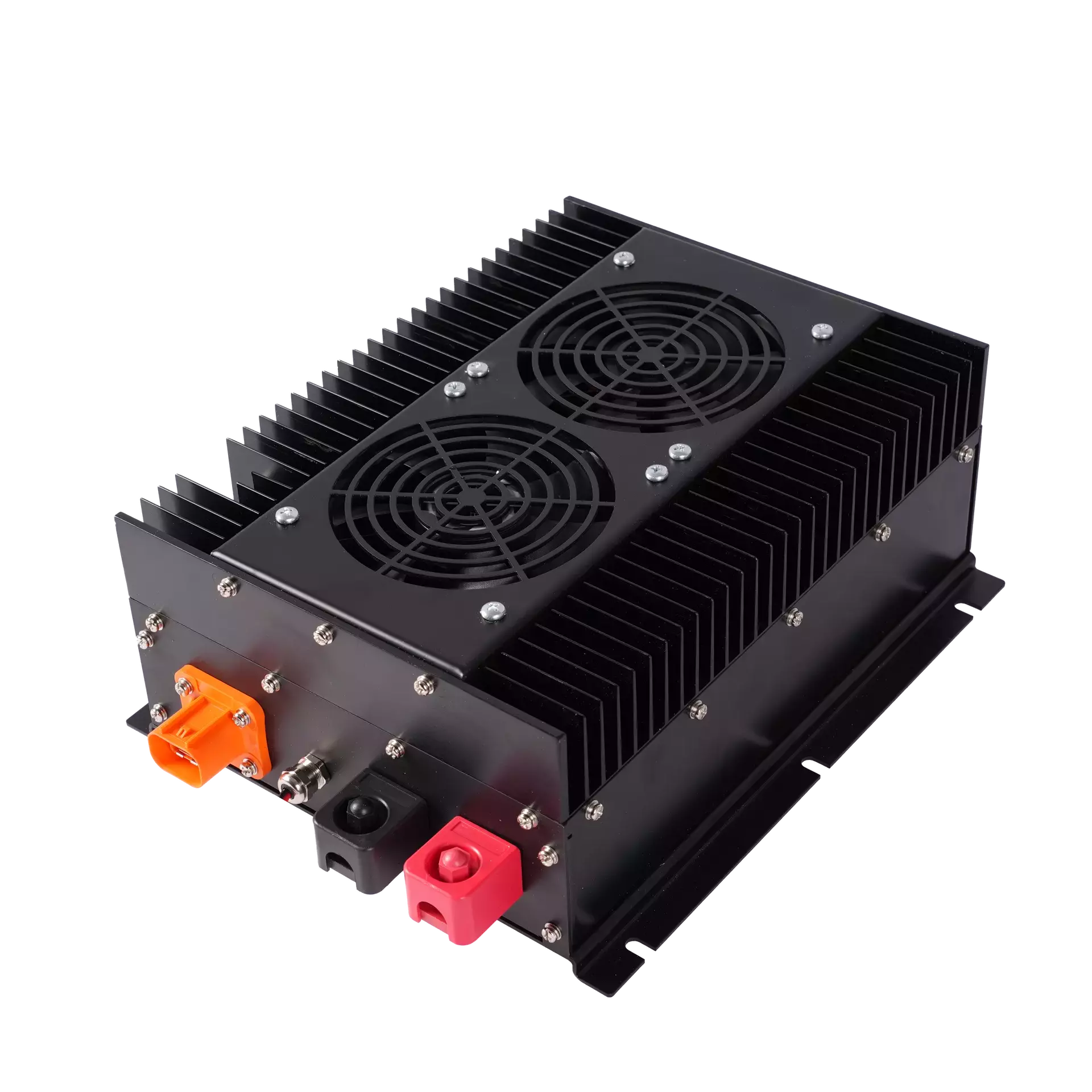

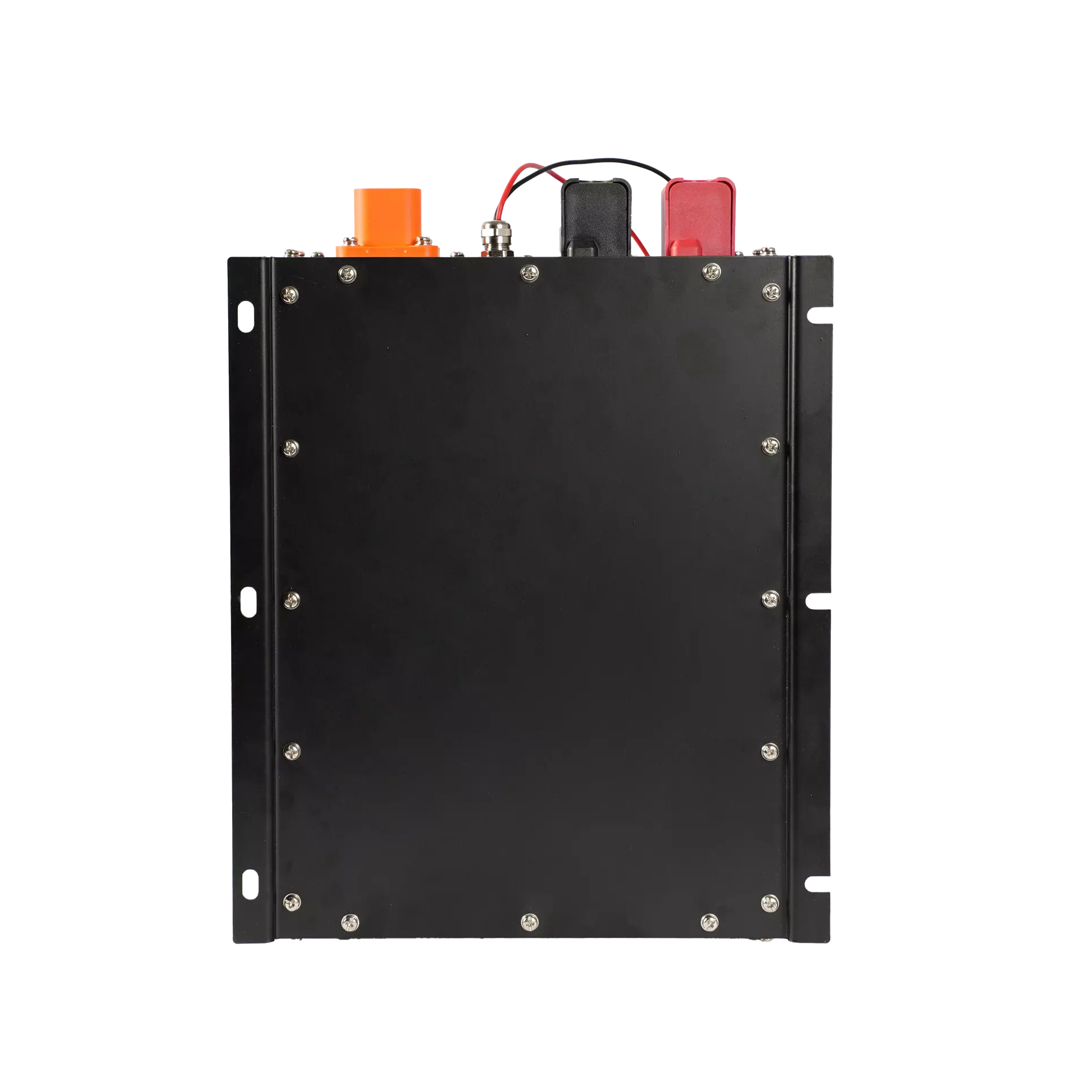

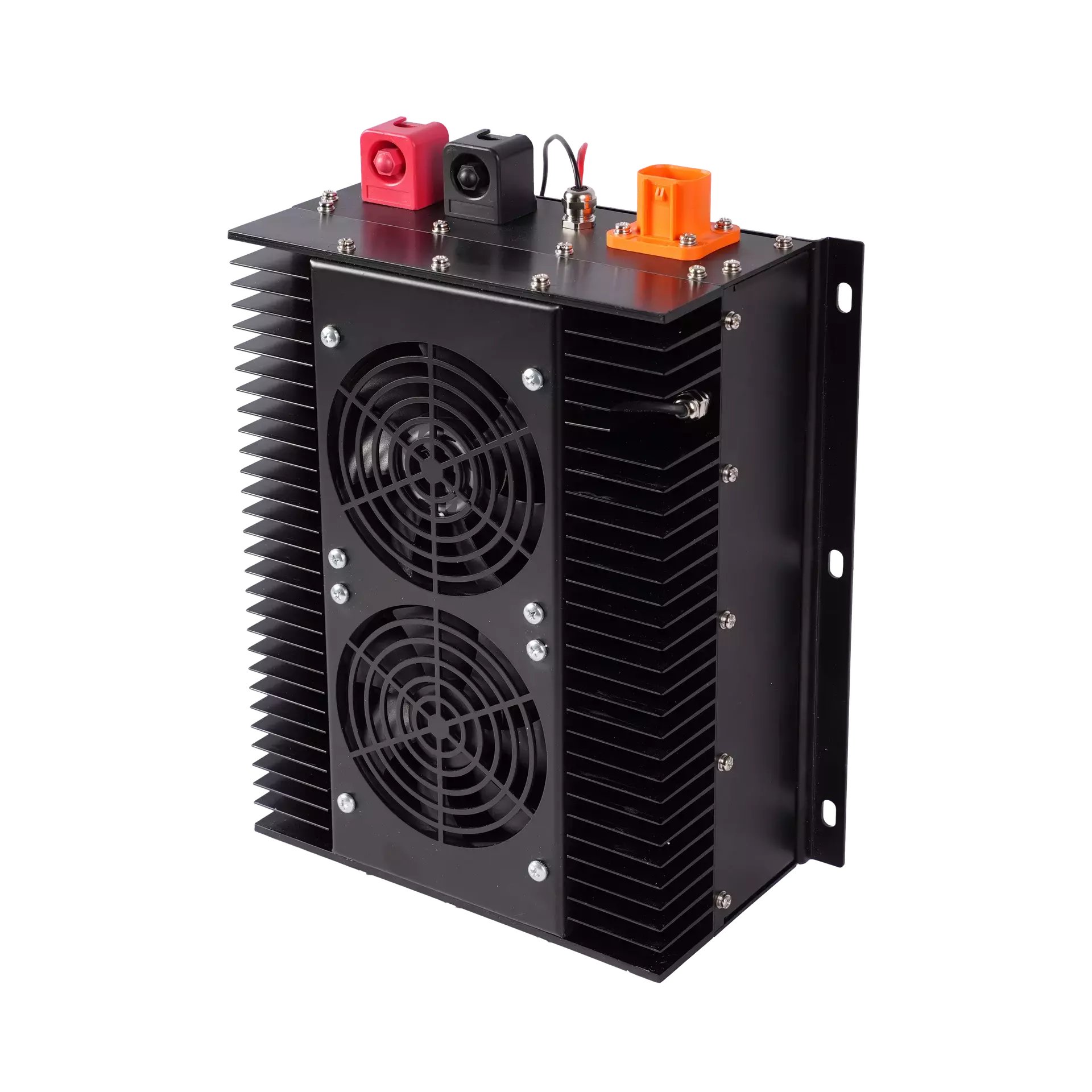

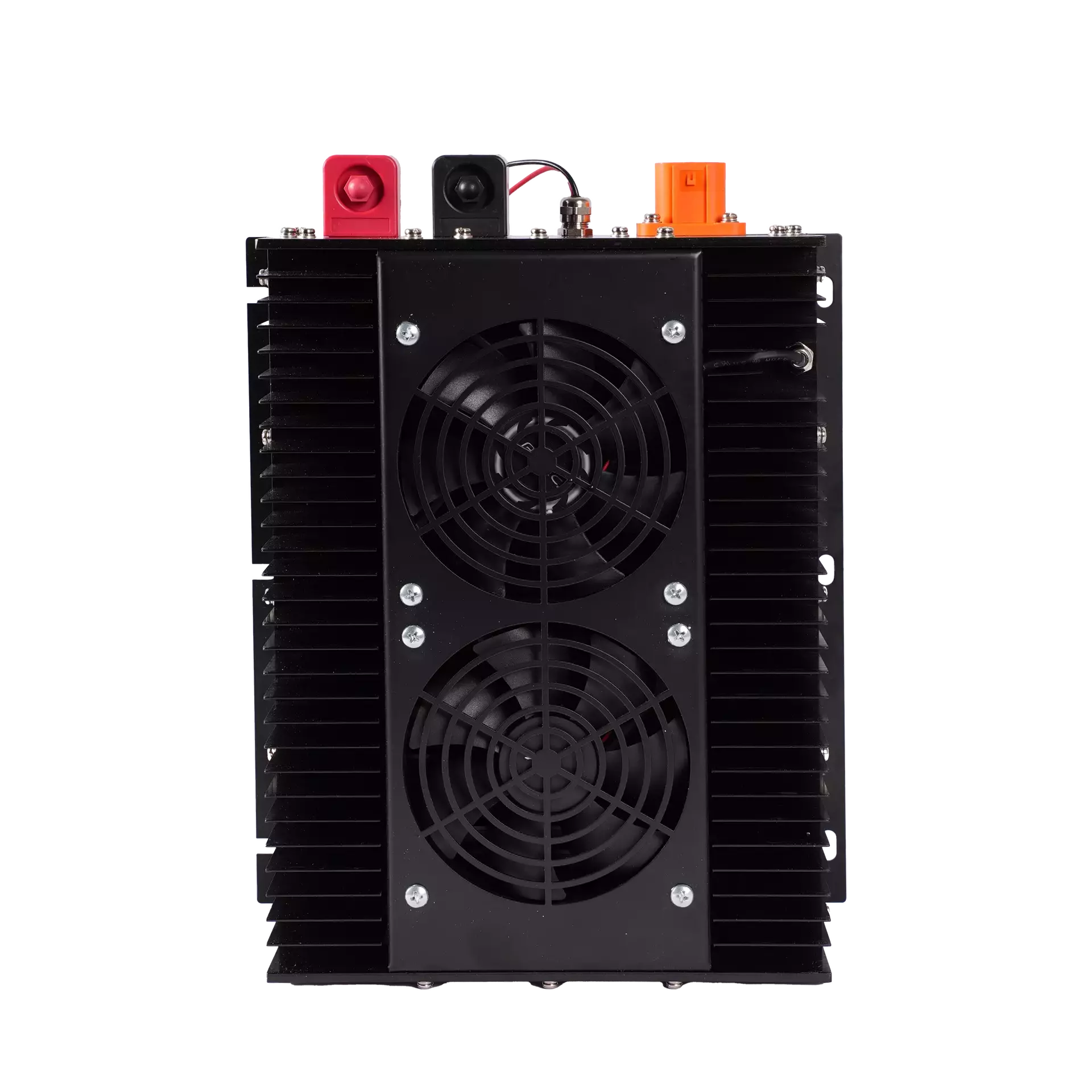

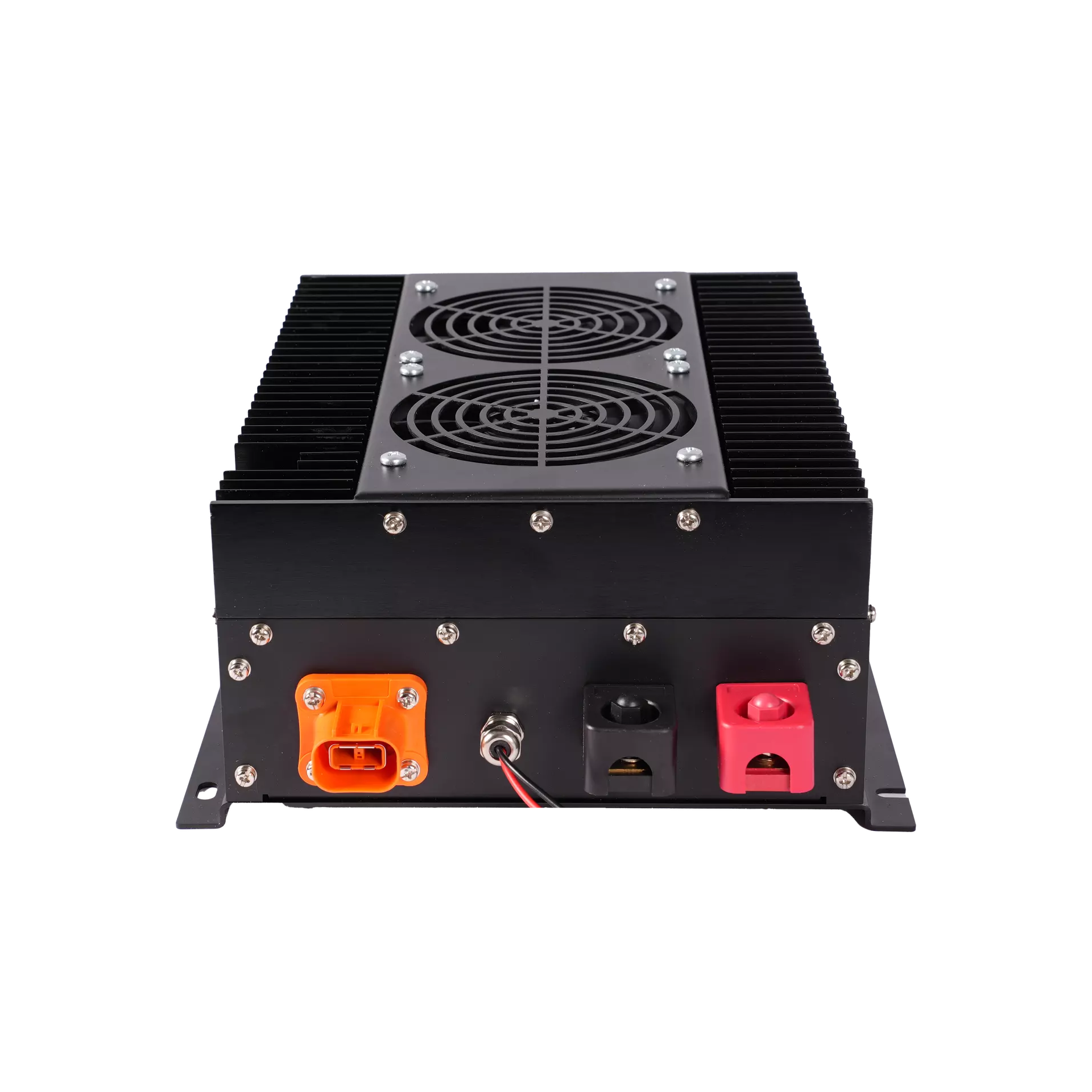

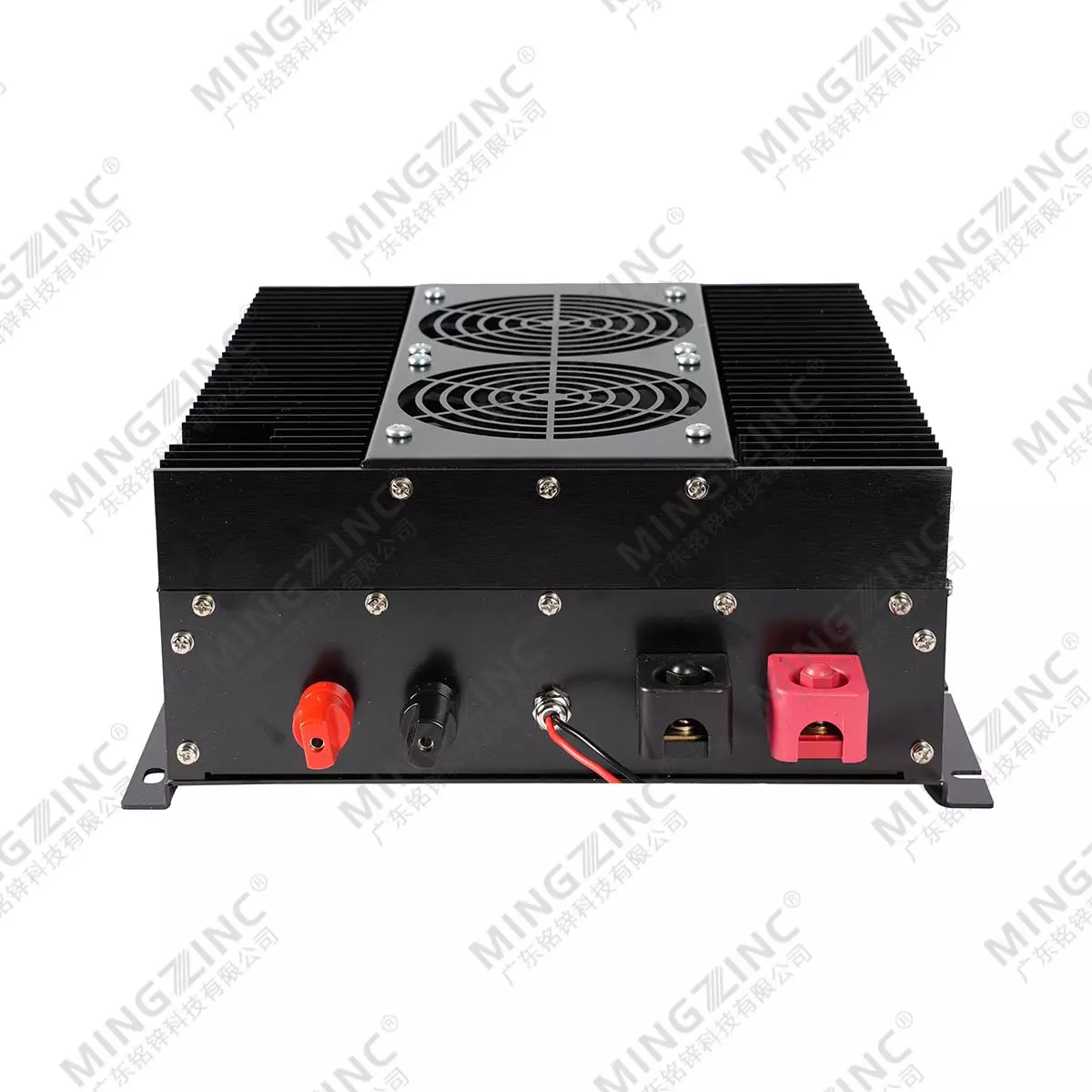

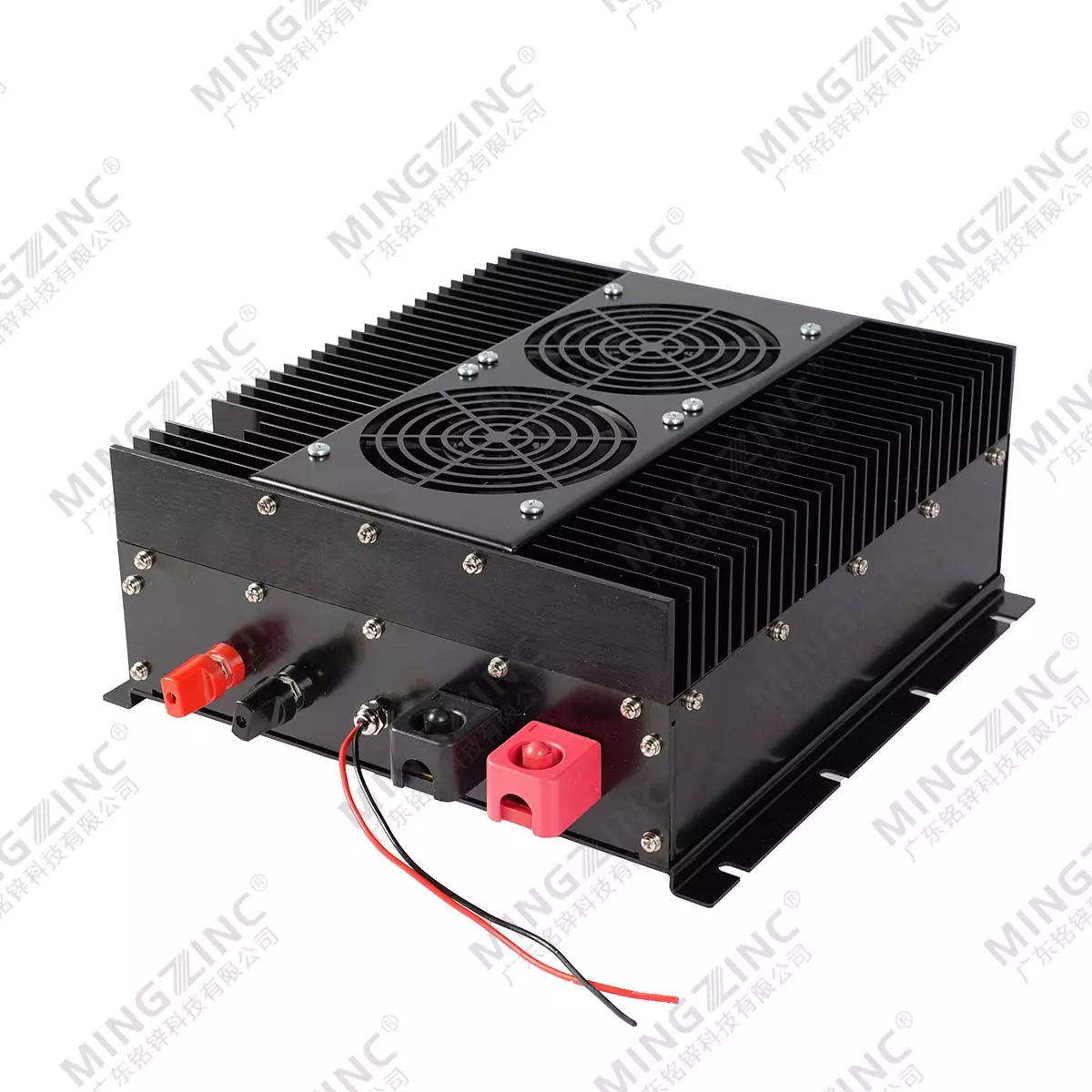

MDO 8000-12000W Series Isolated DC-DC Converters Modules
Products
Latest News
Video Description
I. MODELS LIST
Single Channels Output
|
Model |
Input Voltage(VDC) |
Input Voltage Range(VDC) |
Output Voltage(VDC) |
Output Current(A) |
Output Power(W) |
Ripple And Noise(mv) |
Efficiency (Typ) |
|
MDO8000-360S27.5 |
360VDC |
280-500VDC |
27.5VDC |
290A |
8000W |
400 |
92% |
|
MDO8000-360S48 |
360VDC |
280-500VDC |
48VDC |
166A |
8000W |
400 |
92% |
|
MDO8000-360S58 |
360VDC |
280-500VDC |
58VDC |
137A |
8000W |
400 |
92% |
|
MDO8000-360S72 |
360VDC |
280-500VDC |
72VDC |
111A |
8000W |
400 |
92% |
|
MDO12000-360S96 |
360VDC |
280-500VDC |
96VDC |
125A |
12000W |
400 |
93% |
|
MDO12000-360S144 |
360VDC |
280-500VDC |
144VDC |
83.3A |
12000W |
400 |
93% |
|
MDO12000-360S200 |
360VDC |
280-500VDC |
200VDC |
60A |
12000W |
600 |
93% |
|
MDO12000-360S300 |
360VDC |
280-500VDC |
300VDC |
40A |
12000W |
700 |
93% |
|
MDO12000-360S400 |
360VDC |
280-500VDC |
400VDC |
30A |
12000W |
800 |
93% |
|
MDO8000-560S27.5 |
560VDC |
350-750VDC |
27.5VDC |
290A |
8000 |
400 |
92% |
|
MDO8000-560S48 |
560VDC |
350-750VDC |
48VDC |
166A |
8000 |
400 |
92% |
|
MDO8000-560S58 |
560VDC |
350-750VDC |
58VDC |
137A |
8000 |
400 |
92% |
|
MDO8000-560S72 |
560VDC |
350-750VDC |
72VDC |
111A |
8000 |
400 |
92% |
|
MDO12000-560S96 |
560VDC |
350-750VDC |
96VDC |
125A |
12000 |
400 |
93% |
|
MDO12000-560S144 |
560VDC |
350-750VDC |
144VDC |
83.3A |
12000 |
400 |
93% |
|
MDO12000-560S200 |
560VDC |
350-750VDC |
200VDC |
60A |
12000 |
600 |
93% |
|
MDO12000-560S300 |
560VDC |
350-750VDC |
300VDC |
40A |
12000 |
700 |
93% |
|
MDO12000-560S400 |
560VDC |
350-750VDC |
400VDC |
30A |
12000 |
800 |
93% |
|
MDO8000-580S27.5 |
580VDC |
400-850VDC |
27.5VDC |
290A |
8000 |
400 |
92% |
|
MDO8000-580S48 |
580VDC |
400-850VDC |
48VDC |
166A |
8000 |
400 |
92% |
|
MDO8000-580S58 |
580VDC |
400-850VDC |
58VDC |
137A |
8000 |
400 |
92% |
|
MDO8000-580S72 |
580VDC |
400-850VDC |
72VDC |
111A |
8000 |
400 |
92% |
|
MDO12000-580S96 |
580VDC |
400-850VDC |
96VDC |
125A |
12000 |
400 |
93% |
|
MDO12000-580S144 |
580VDC |
400-850VDC |
144VDC |
83.3A |
12000 |
400 |
93% |
|
MDO12000-580S200 |
580VDC |
400-850VDC |
200VDC |
60A |
12000 |
600 |
93% |
|
MDO12000-580S300 |
580VDC |
400-850VDC |
300VDC |
40A |
12000 |
700 |
93% |
|
MDO12000-580S400 |
580VDC |
400-850VDC |
400VDC |
30A |
12000 |
800 |
93% |
|
MDO8000-850S27.5 |
850VDC |
600-1100VDC |
27.5VDC |
290A |
8000 |
400 |
92% |
|
MDO8000-850S48 |
850VDC |
600-1100VDC |
48VDC |
166A |
8000 |
400 |
92% |
|
MDO8000-850S58 |
850VDC |
600-1100VDC |
58VDC |
137A |
8000 |
400 |
92% |
|
MDO8000-850S72 |
850VDC |
600-1100VDC |
72VDC |
111A |
8000 |
400 |
92% |
|
MDO12000-850S96 |
850VDC |
600-1100VDC |
96VDC |
125A |
12000 |
400 |
93% |
|
MDO12000-850S144 |
850VDC |
600-1100VDC |
144VDC |
83.3A |
12000 |
400 |
93% |
|
MDO12000-850S200 |
850VDC |
600-1100VDC |
200VDC |
60A |
12000 |
600 |
93% |
|
MDO12000-850S300 |
850VDC |
600-1100VDC |
300VDC |
40A |
12000 |
700 |
93% |
|
MDO12000-850S400 |
850VDC |
600-1100VDC |
400VDC |
30A |
8000 |
800 |
93% |
|
MDO8000-1200S27.5 |
1200VDC |
900-1500VDC |
27.5VDC |
290A |
8000 |
400 |
92% |
|
MDO8000-1200S48 |
1200VDC |
900-1500VDC |
48VDC |
166A |
8000 |
400 |
92% |
|
MDO8000-1200S58 |
1200VDC |
900-1500VDC |
58VDC |
137A |
8000 |
400 |
92% |
|
MDO8000-1200S72 |
1200VDC |
900-1500VDC |
72VDC |
111A |
8000 |
400 |
92% |
|
MDO12000-1200S96 |
1200VDC |
900-1500VDC |
96VDC |
125A |
12000 |
400 |
93% |
|
MDO12000-1200S144 |
1200VDC |
900-1500VDC |
144VDC |
83.3A |
12000 |
400 |
93% |
|
MDO12000-1200S200 |
1200VDC |
900-1500VDC |
200VDC |
60A |
12000 |
600 |
93% |
|
MDO12000-1200S300 |
1200VDC |
900-1500VDC |
300VDC |
40A |
12000 |
700 |
93% |
|
MDO12000-1200S400 |
1200VDC |
900-1500VDC |
400VDC |
30A |
12000 |
800 |
93% |
Only the typical models are listed. If you need another models , please inform the power,input and output voltage,then feel free to call us.
II. FEATURES
|
1 |
Ultra-high voltage input |
|
2 |
High power ,fan cooling |
|
3 |
High efficiency，high reliability,long service life design |
| 4 |
CAN communication |
|
5 |
Various protection functions |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
360VDC |
280-500 VDC |
|
560VDC |
350-750 VDC |
|
580VDC |
400-850 VDC |
|
850VDC |
600-1100 VDC |
|
1200VDC |
900-1500 VDC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
8000-12000W |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current |
30-290A |
|
Output Voltage |
27.5-400VDC |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Output Current Limiting |
0.5-1A greater than the rated output current. |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
lsolation Resistance |
50MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>3000VDC |
|
Input-Case |
>2000VDC |
|
Output-Case |
>750VDC |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-40~ +50℃ |
|
Storage Temperature |
Industry |
-45 ~ +105℃ |

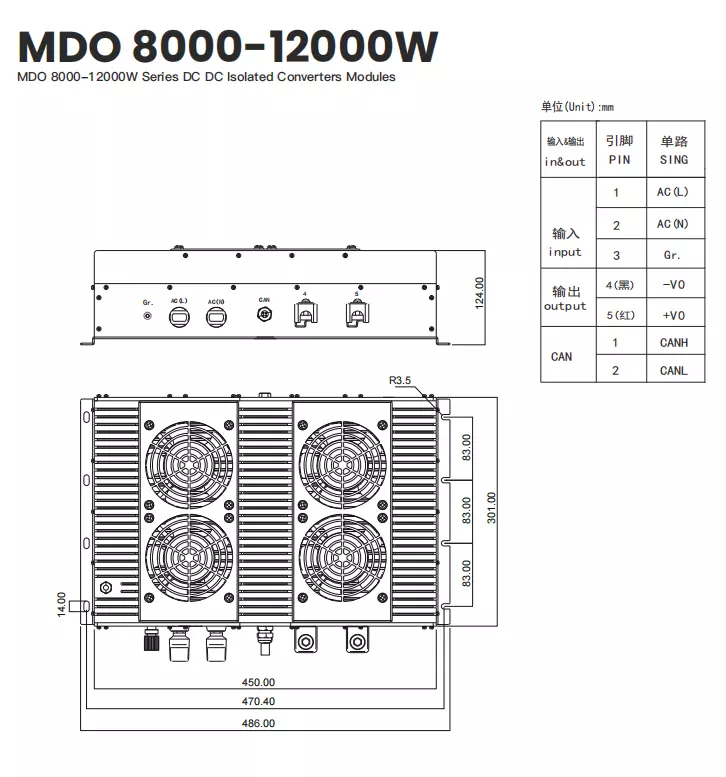

VI. MECHANICAL DRAWING AND PIN DEFINITION
