75W Dual Output Isolated DC-DC Converter for Industrial Vision Inspection Systems
Products
Latest News

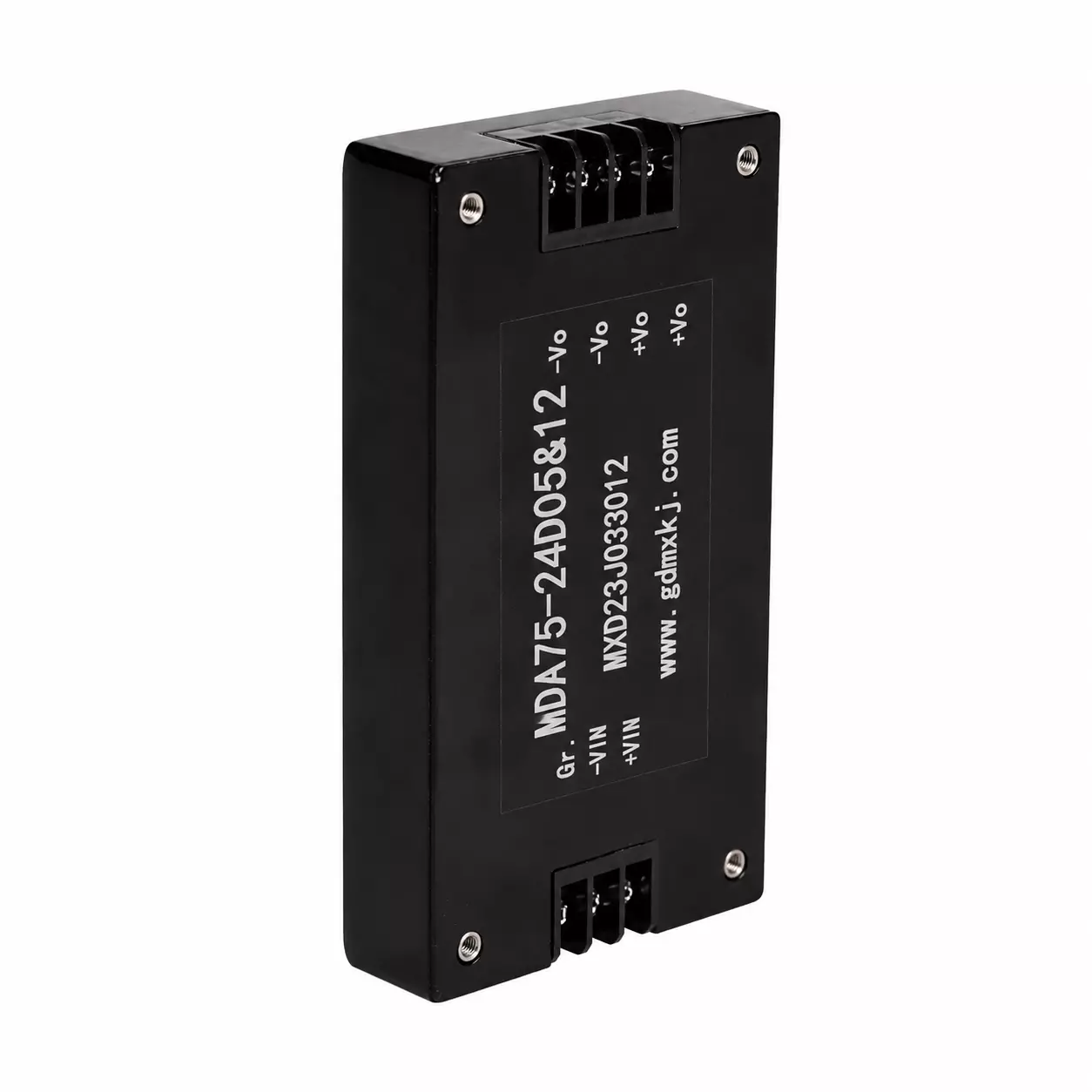

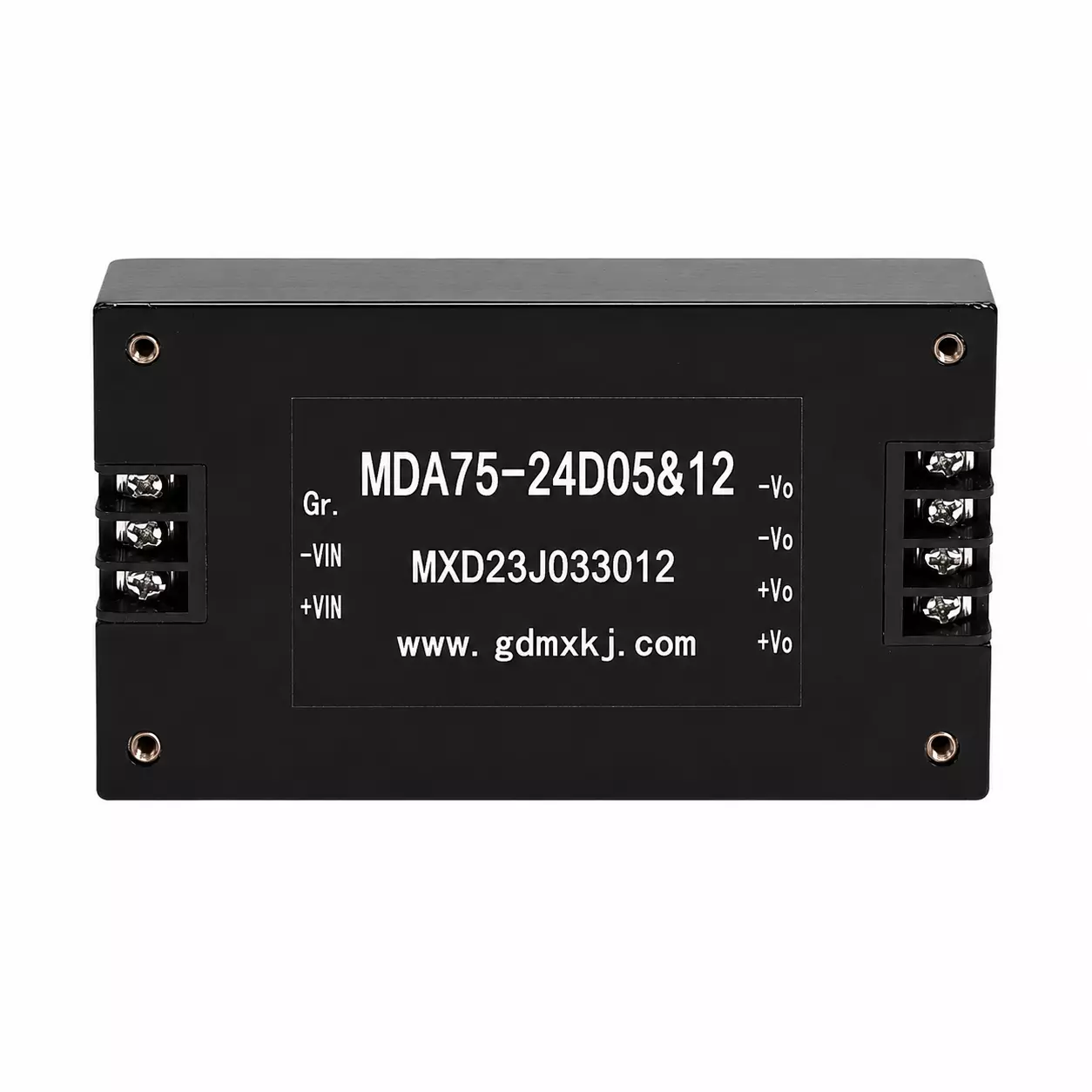

The MDA75-24D05&12 is a 75W dual output isolated DC-DC converter featuring a wide 18–36VDC input and regulated 5VDC + 12VDC dual outputs, specifically designed for industrial vision inspection systems, industrial cameras, image processing boards, embedded controllers and AI vision equipment.
With galvanic isolation, dual-output architecture, EMI resistance, fully potted construction and industrial-grade protection, it delivers stable power for multiple devices from a single module while reducing cabinet space and wiring complexity.
OEM/ODM customization is available for voltage, power, output configuration and mechanical integration.
Video Description
I. MODELS LIST
Single Channels Output
|
Model |
Input Voltage (VDC) |
Input Voltage Range(VDC) |
Output voltage(VDC) |
Output Current(A) |
Output Power(W) |
Ripple And Noise（mv） |
Efficiency (Typ) |
|
MDA75-24D05&12 |
24VDC |
18-36VDC |
05&12VDC |
3&4A |
100W |
80&120 |
82% |
II. FEATURES
|
1 |
Π type input filter |
|
2 |
High power density |
|
3 |
2times 4times voltage input |
|
4 |
Design for high reliability, long lifetime |
|
5 |
Easy installation, dual side pin out |
|
6 |
Attractive outline design |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
24VDC |
18-36 VDC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
100 W |
|
Output Voltage |
05&12VDC |
| Output Current | 3&4A |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
Switching Frequency |
100-200KHz |
|
lsolation Resistance |
200MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military |
-55 – +105℃ |
|
VI. MECHANICAL DRAWING AND PIN DEFINITION
Product Highlights
Wide 18–36VDC input range
Dual regulated 5VDC + 12VDC outputs
Galvanic isolation for enhanced electrical safety
Dual-output design reduces wiring and cabinet space
EMI/EMC optimized for industrial vision systems
Fully potted construction for moisture, dust and vibration resistance
UVP / OVP / OCP / SCP / OTP protection
OEM & ODM customization available
Recommended Applications
Ideal for:
Industrial Cameras
Vision Controllers
Image Processing Boards
Embedded Controllers
AI Vision Systems
Automated Optical Inspection (AOI) Equipment
Distributor / OEM Section
Looking for a Reliable Dual Output DC-DC Converter Manufacturer?
MINGZINC is more than a DC-DC converter manufacturer. We support power distributors, OEM manufacturers, system integrators and industrial equipment suppliers with application-oriented isolated power solutions.
Whether you need a standard dual-output converter or a custom-designed power module, our engineering team helps shorten development time, simplify system integration and improve long-term reliability.
