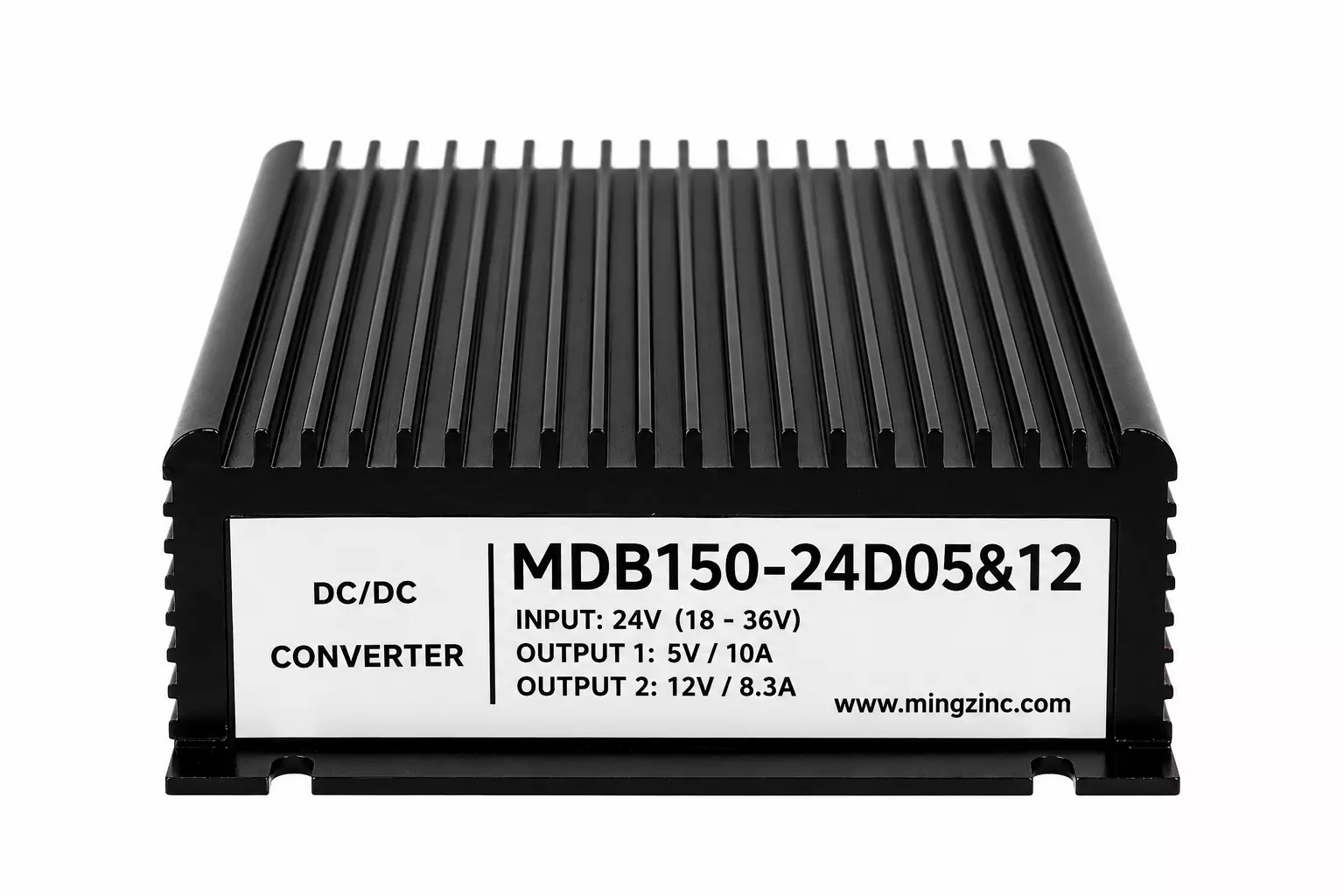

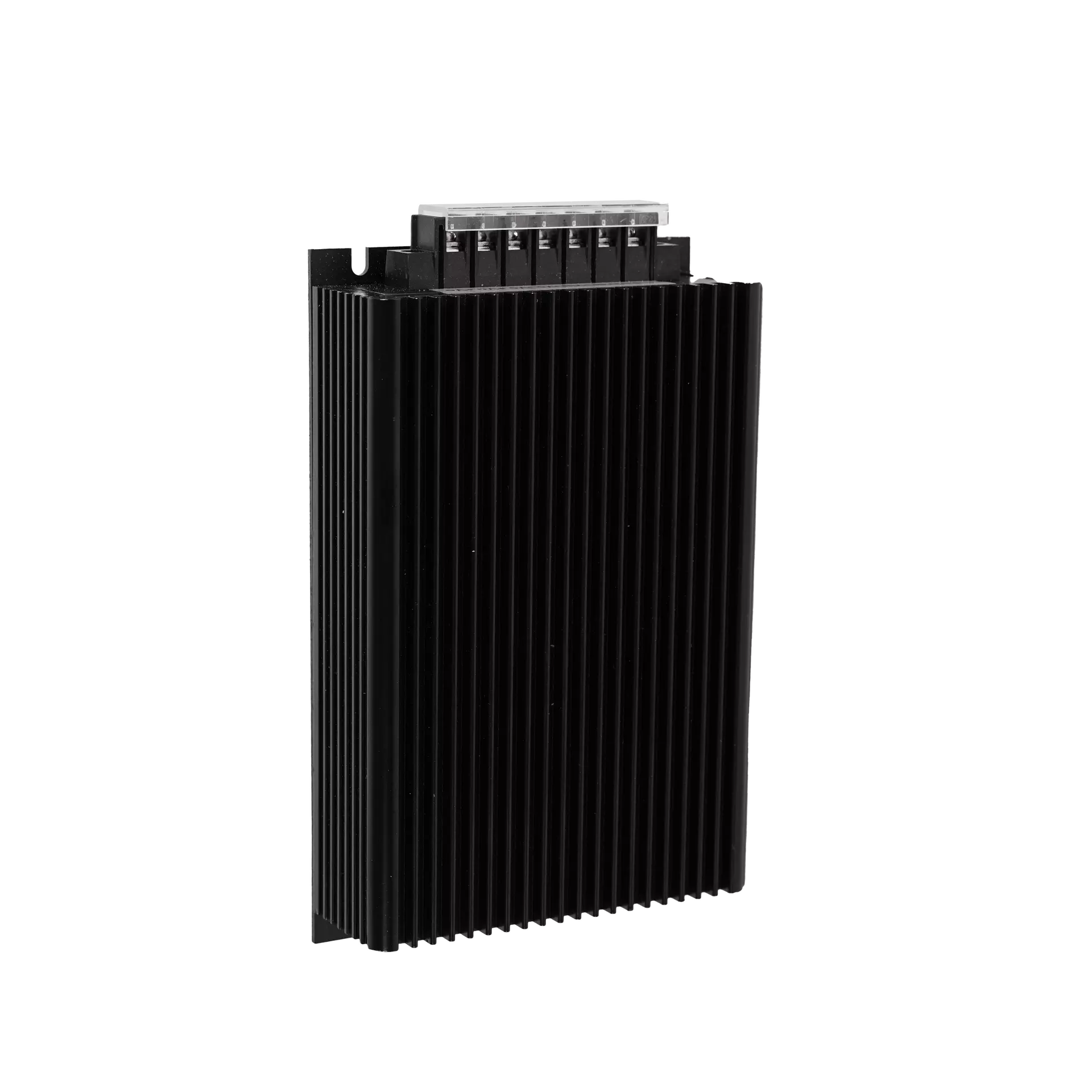

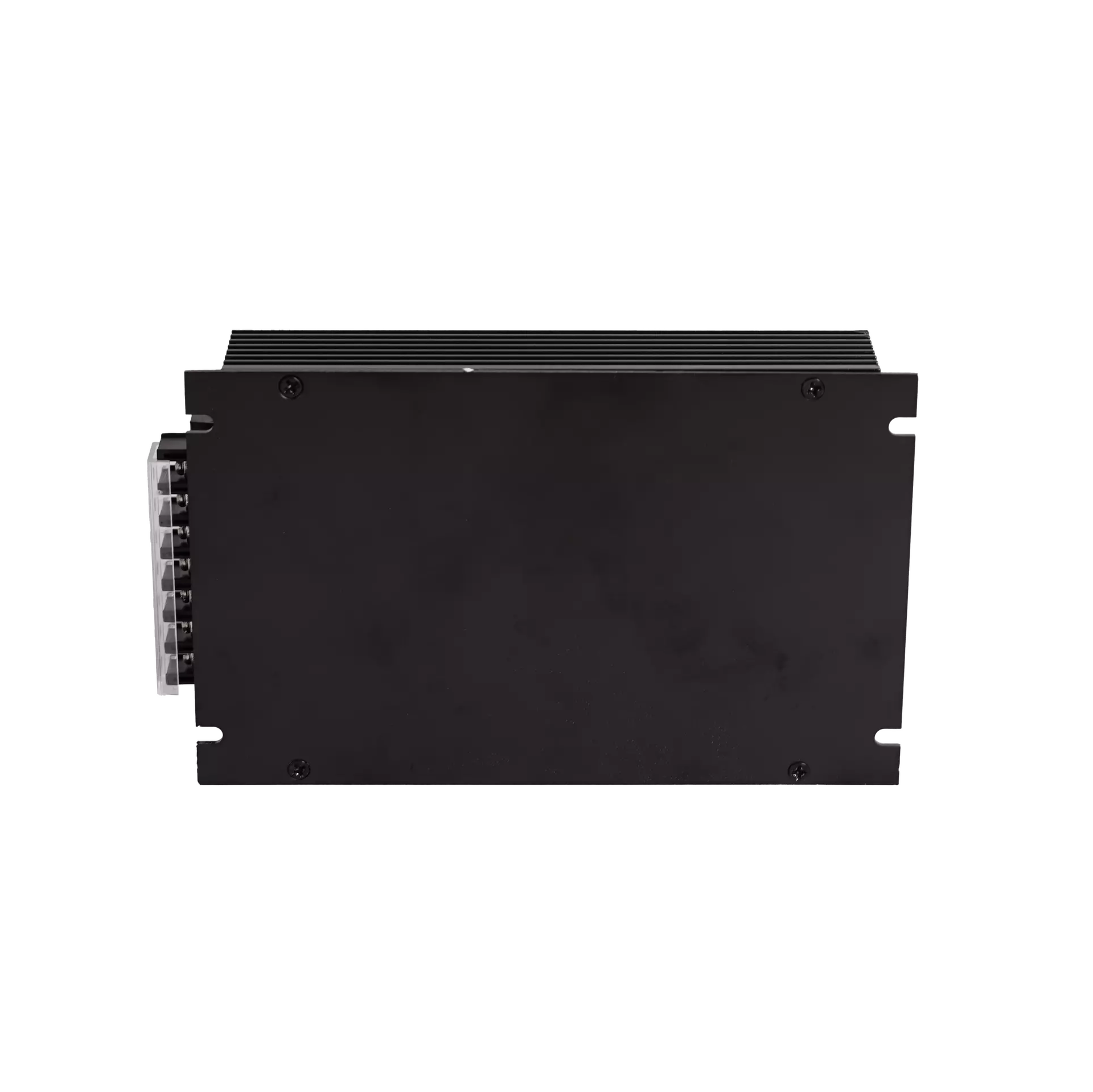

MDB150-24D05&12
150W Dual Output Isolated DC-DC Converter for Machine Vision System Auxiliary Power
The MDB150-24D05&12 is a high-performance 150W dual output isolated DC-DC converter that converts an 18–36VDC input into regulated 5VDC and 12VDC outputs simultaneously for industrial cameras, image processing boards, embedded controllers, FPGA control boards and machine vision systems.
Designed for demanding industrial automation environments, the dual-output architecture allows one converter to power multiple subsystems, reducing wiring complexity and cabinet space. With input-to-output galvanic isolation, fanless natural cooling and comprehensive protection functions, it provides reliable power conversion for continuous machine vision applications.
Ideal for industrial inspection and automation equipment, the MDB150-24D05&12 helps improve system stability, minimize camera resets and simplify machine vision power distribution.
Key Features
150W dual output isolated DC-DC converter
Wide 18–36VDC input
Regulated 5VDC and 12VDC outputs
Input-to-output galvanic isolation
Fanless natural cooling
High reliability for continuous industrial operation
UVP / OVP / OCP / SCP / OTP protection
OEM & ODM customization available
Video Description
I. MODELS LIST
Single Channels Output
|
Model |
Input Voltage (VDC) |
Input Voltage Range (VDC) |
Output voltage (VDC) |
Output Current(A) |
Output Power(W) |
Ripple And Noise(mv) |
Efficiency (Typ) |
|
MDB150-24D05&12 |
24VDC |
18-36VDC |
5&12VDC |
10&8.33A |
150W |
100&120 |
82% |
Only the typical models are listed. If you need another models, please inform the power,Input and output voltage,then feel free to call us.
II. FEATURES
|
1 |
High and low voltage input for option |
|
2 |
Good heat dissipation with beautiful appearance |
|
3 |
Natural cooling |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
48 VDC |
36-72 VDC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
200W |
|
Output Voltage |
48VDC |
|
Output Current |
8.3A |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
Switching Frequency |
100-200KHz |
|
lsolation Resitstance |
200MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military |
-55 – +105℃ |
|
VI. MECHANICAL DRAWING AND PIN DEFINITION
Typical Applications
The MDB150-24D05&12 is widely used in:
Industrial Cameras
Image Processing Boards
Vision Controllers
Embedded Controllers
FPGA Control Boards
Automated Optical Inspection (AOI) Equipment
Machine Vision Inspection Systems
Why Choose MINGZINC?
MINGZINC develops application-oriented isolated DC-DC power solutions for industrial automation and machine vision applications.
We provide:
DC-DC power solutions from 30W to 20KW
Custom input/output voltage and dual-output configurations
Galvanic isolation for enhanced electrical safety
Natural cooling or forced-air cooling options
Customized interfaces, mounting and mechanical structures
OEM/ODM engineering support and fast project customization
Customer Benefits
With the MDB150-24D05&12, engineers can:
Power 5V and 12V subsystems from one converter
Reduce wiring complexity and cabinet space
Minimize camera resets and processing-board reboots
Improve continuous inspection reliability
Lower maintenance costs with fanless cooling
Accelerate machine integration and commissioning
Increase the reliability of machine vision systems
