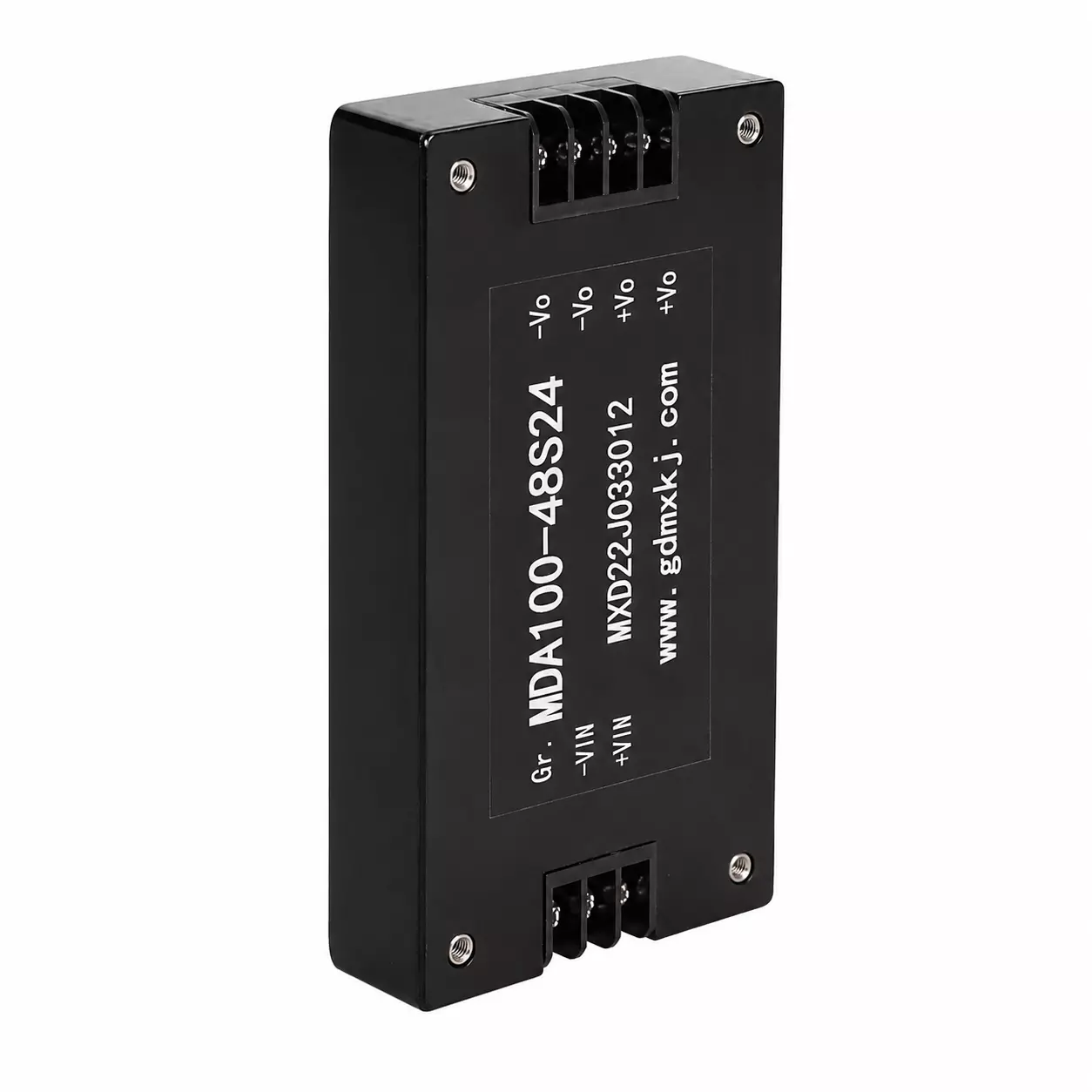

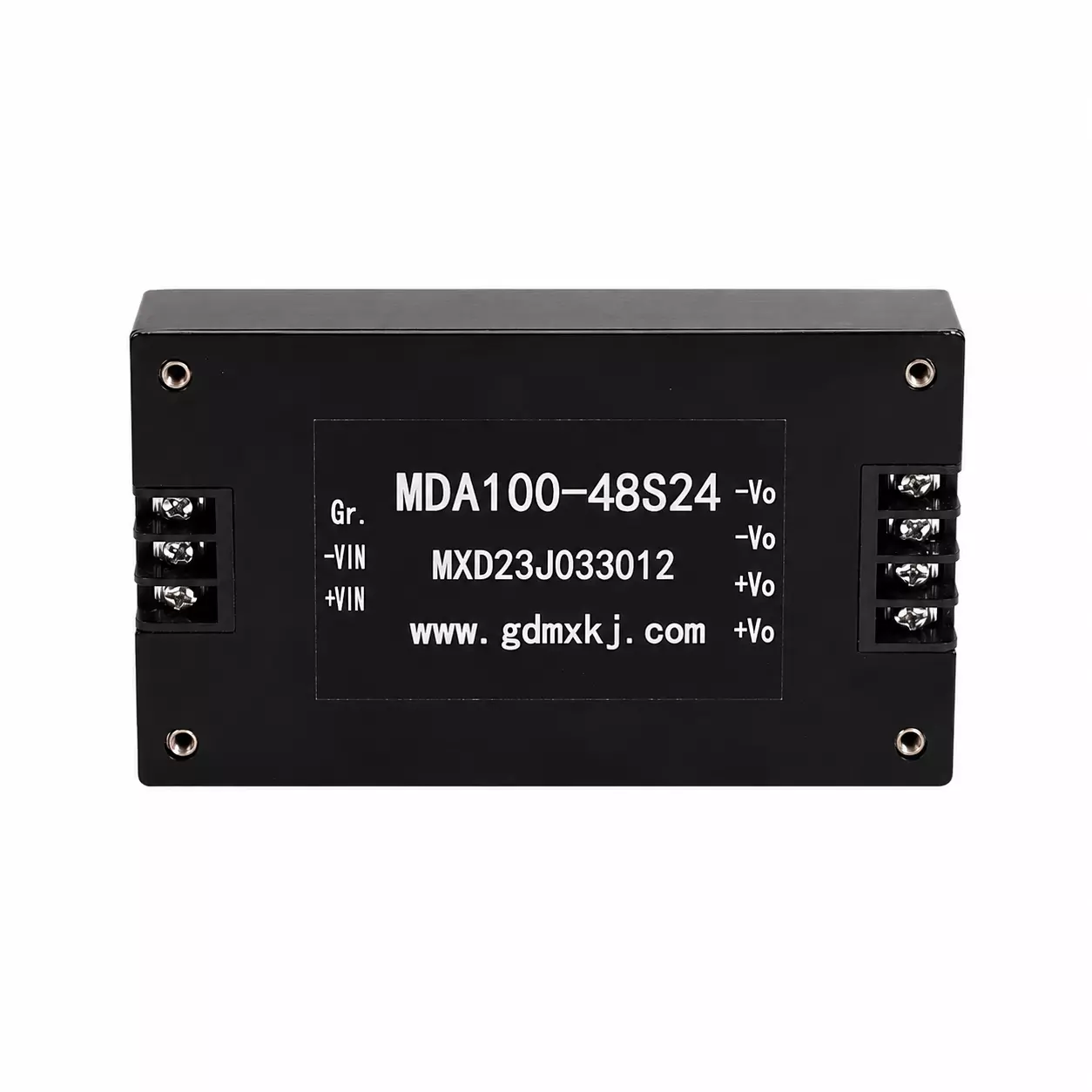

100W 36–72VDC to 24VDC Isolated DC-DC Converter for Industrial Ethernet Switches & Edge Gateways | MDA100-48S24
Products
Latest News
The MINGZINC MDA100-48S24 is a 100W isolated DC-DC converter designed to provide reliable 24VDC auxiliary power for Industrial Ethernet switches, Edge Gateways, Remote I/O systems, industrial IPCs and industrial communication controllers.
Featuring a wide 36–72VDC input, regulated 24VDC output, galvanic isolation, EMI-resistant design, and comprehensive industrial protection, it delivers stable power for communication equipment operating in demanding environments with voltage fluctuations, electrical noise, vibration, dust and temperature changes.
As a professional DC-DC converter manufacturer, MINGZINC supplies high-reliability industrial power modules for industrial networking, IIoT, factory automation and intelligent control systems. We work closely with power distributors, OEM manufacturers and system integrators, providing OEM power supply, ODM power supply and custom power supply solutions that meet diverse industrial communication requirements.
Product Highlights
100W Industrial Isolated DC-DC Converter
Wide 36–72VDC Input Voltage
Stable Regulated 24VDC Output
Galvanic Isolation Design
High EMI Immunity
Fully Potted Construction
Excellent Moisture & Vibration Resistance
UVP / OVP / OCP / SCP / OTP Protection
High Reliability for Continuous Industrial Networking
OEM & ODM Customization Available
Recommended Applications
Ideal for:
Industrial Ethernet Switches
Edge Gateways
Remote I/O Systems
Industrial IPCs
Industrial Communication Controllers
IIoT Equipment
Industrial IoT Gateways
Factory Automation Networks
Industrial Network Cabinets
Smart Manufacturing Systems
Distributed Control Systems (DCS)
Video Description
I. MODELS LIST
Single Channels Output
|
Model |
Input Voltage (VDC) |
Input Voltage Range(VDC) |
Output voltage(VDC) |
Output Current(A) |
Output Power(W) |
Ripple And Noise（mv） |
Efficiency (Typ) |
|
MDA100-48S24 |
48VDC |
36-72VDC |
24VDC |
4.16A |
100W |
200 |
86% |
II. FEATURES
|
1 |
Π type input filter |
|
2 |
High power density |
|
3 |
2times 4times voltage input |
|
4 |
Design for high reliability, long lifetime |
|
5 |
Easy installation, dual side pin out |
|
6 |
Attractive outline design |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
48VDC |
36-72 VDC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
100 W |
|
Output Voltage |
24VDC |
| Output Current | 4.16A |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
Switching Frequency |
100-200KHz |
|
lsolation Resistance |
200MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military |
-55 – +105℃ |
|
VI. MECHANICAL DRAWING AND PIN DEFINITION
