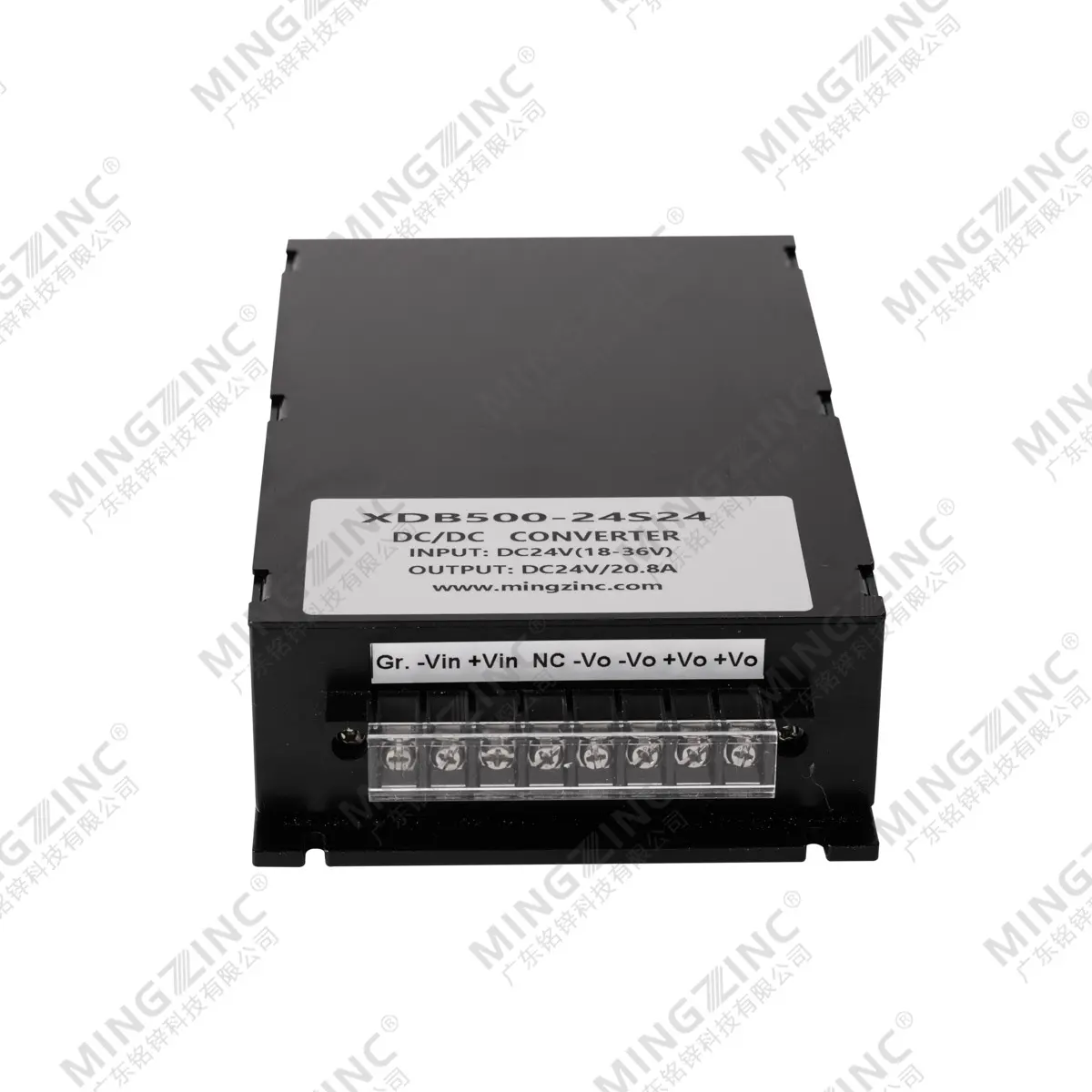

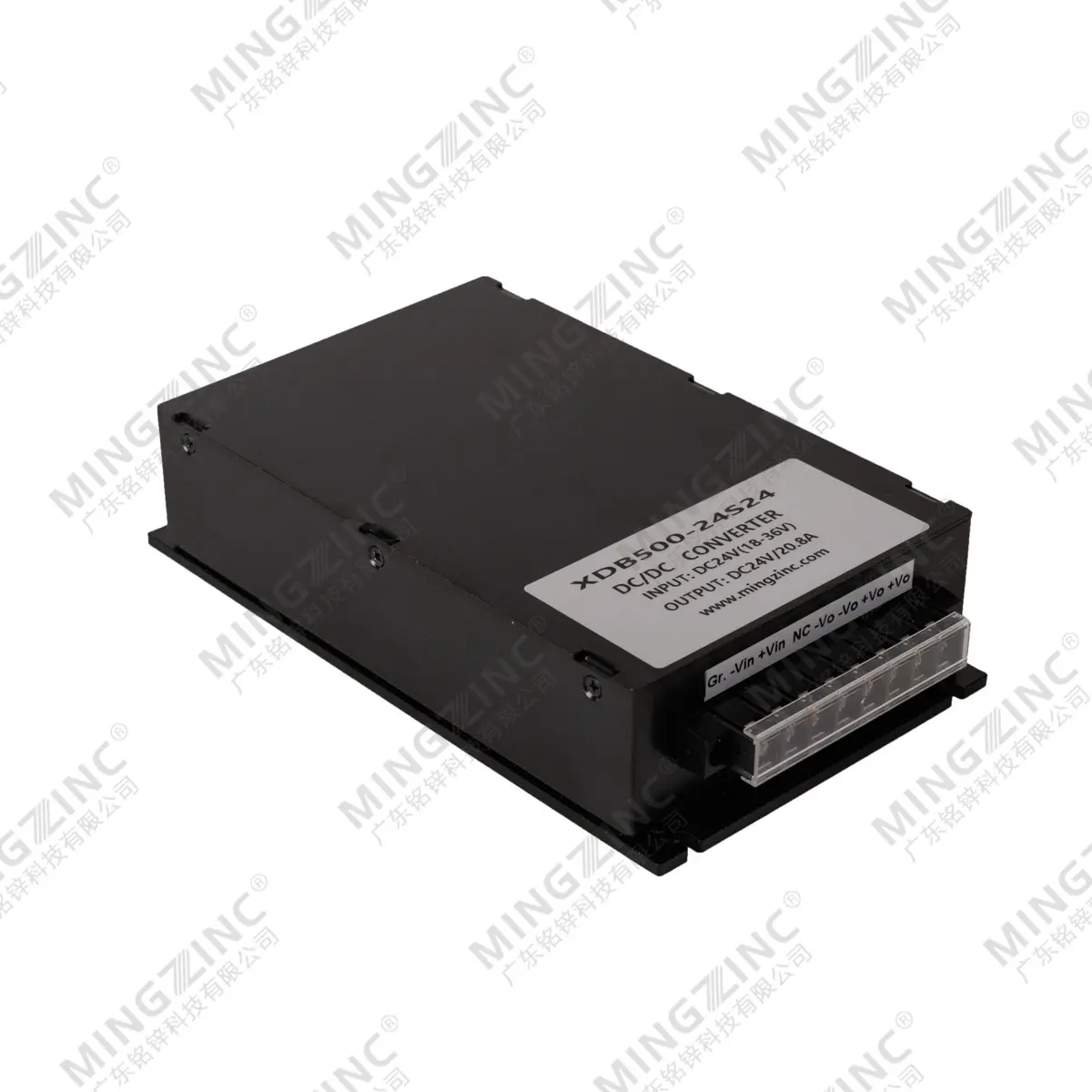

XDB 350-500W New Energy Batteries Power Series DC-DC Isolated Converters
Products
Video Description
IMODELS LIST
Single Channels Output
|
Models |
Input Voltage Range |
Input Voltage Rating |
Output Voltage |
Output Current |
Output Power |
Efficiency (Typ) |
|
XDB350-24S12 |
18-36VDC |
24VDC |
12VDC |
29.1A |
350W |
89% |
|
XDB500-24S24 |
18-36VDC | 24VDC |
24VDC |
20.8A |
500W |
89% |
|
XDB500-48S24 |
36-72VDC | 48VDC |
24VDC |
20.8A |
500W |
88% |
|
XDB500-110S24 |
66-154VDC | 110VDC |
24VDC |
20.8A |
500W |
89% |
|
XDB500-600S24 |
400-800VDC | 600VDC |
24VDC |
20.8A |
500W |
89% |
|
XDB500-600S48 |
400-800VDC | 600VDC |
48VDC |
10.4A |
500W |
84% |
|
XDB500-600S110 |
400-800VDC | 600VDC |
110VDC |
4.5A |
500W |
84% |
Only the typical models are listed. If you need other models,please inform the power ,input voltage and output voltage,then feel free to call us.
II. FEATURES
|
1 |
High and low voltage input is for option |
|
2 |
2X，voltage input |
|
3 |
Output short circuit protection |
|
4 |
Iag Easy installation |
|
5 |
Design for high reliability ,long lifetime |
INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
12VDC |
9-18VDC |
|
24VDC |
18-36VDC |
|
48VDC |
36-72VDC |
|
110V DC |
66-154VDC |
|
600VDC |
400-800VDC |
IV. OUTPUT CHARACTERISTIC
|
Power |
350-500W |
|
Output Current |
5-40A |
|
Output Voltage |
5-48VDC |
|
Voltage Set-point Accuracy |
±2% |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
rate of change of temperature |
±0.01%/℃ |
|
Output Current Limting |
120%(Typ) |
|
response time |
400μs |
GENERAL CHARACTERISTIC
|
Switching Frequency |
100-200KHz |
|
Isolation Resistance |
200MΩ |
|
MTBF |
>500000 h |
lsolation Voltage
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military l |
-55 – +105℃ |

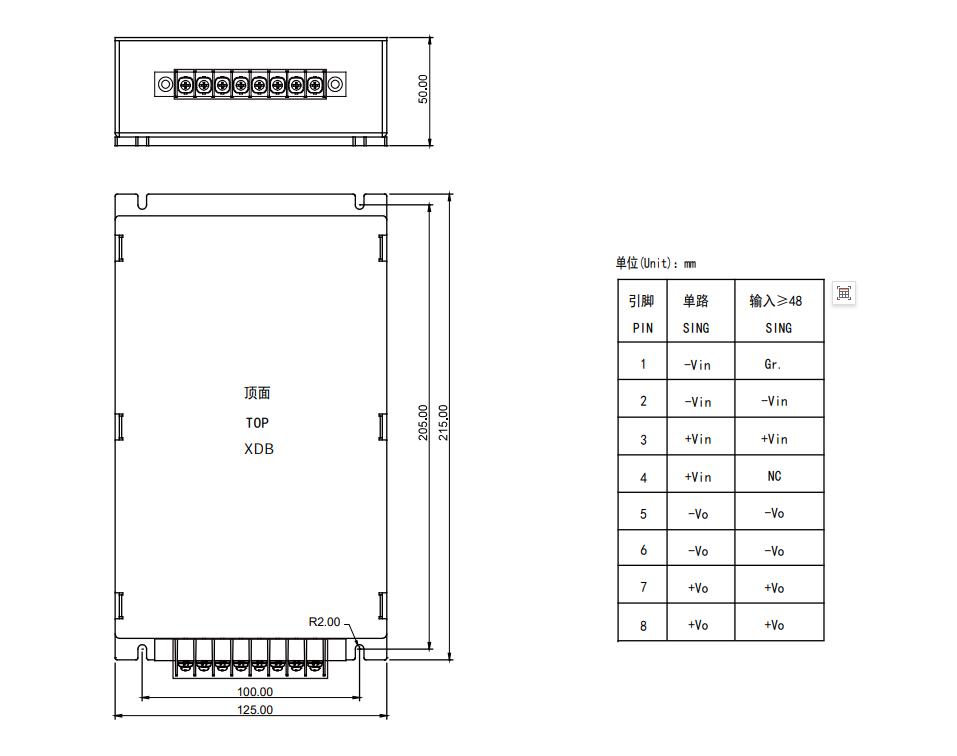

MECHANICAL DRAWING AND PIN DEFINITION
