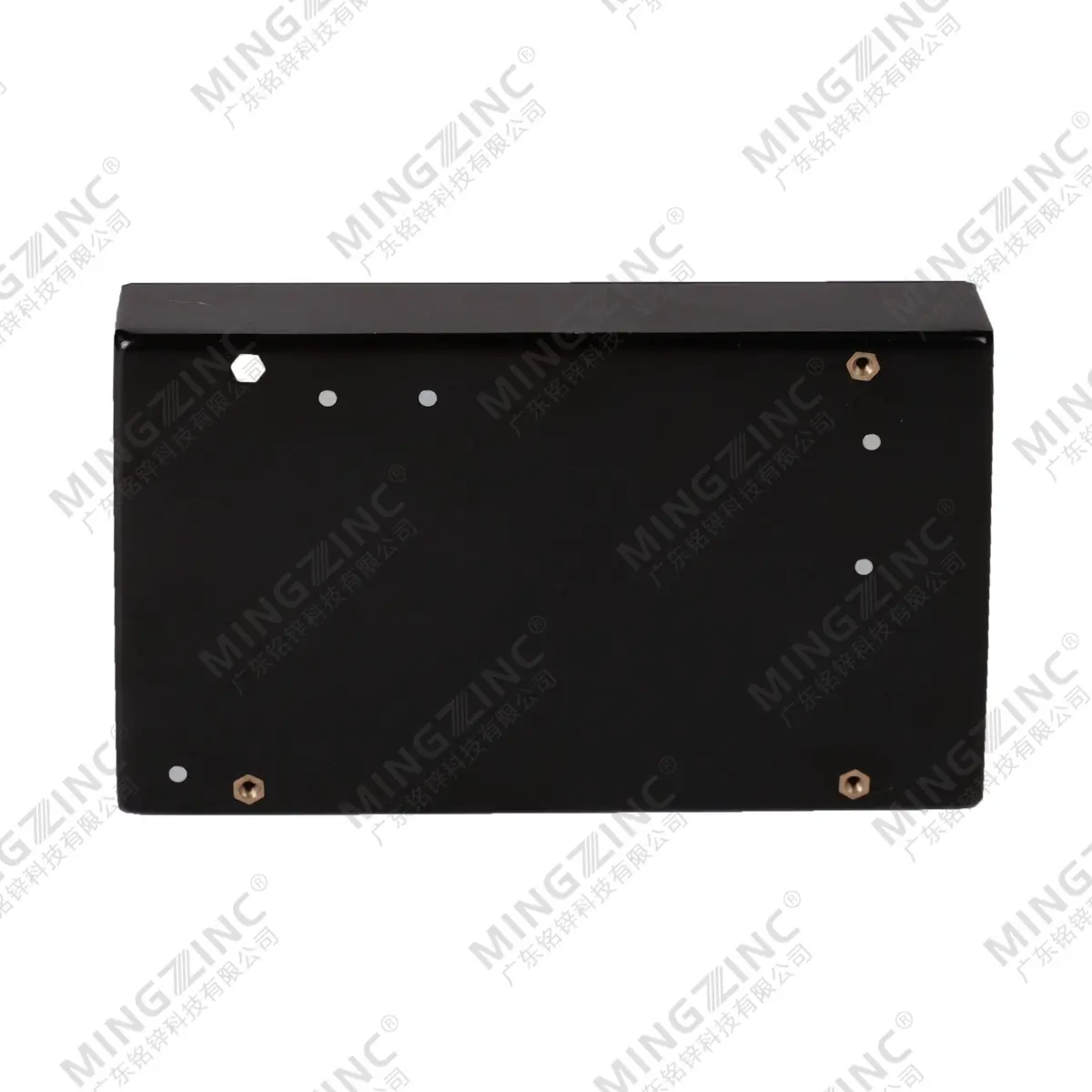

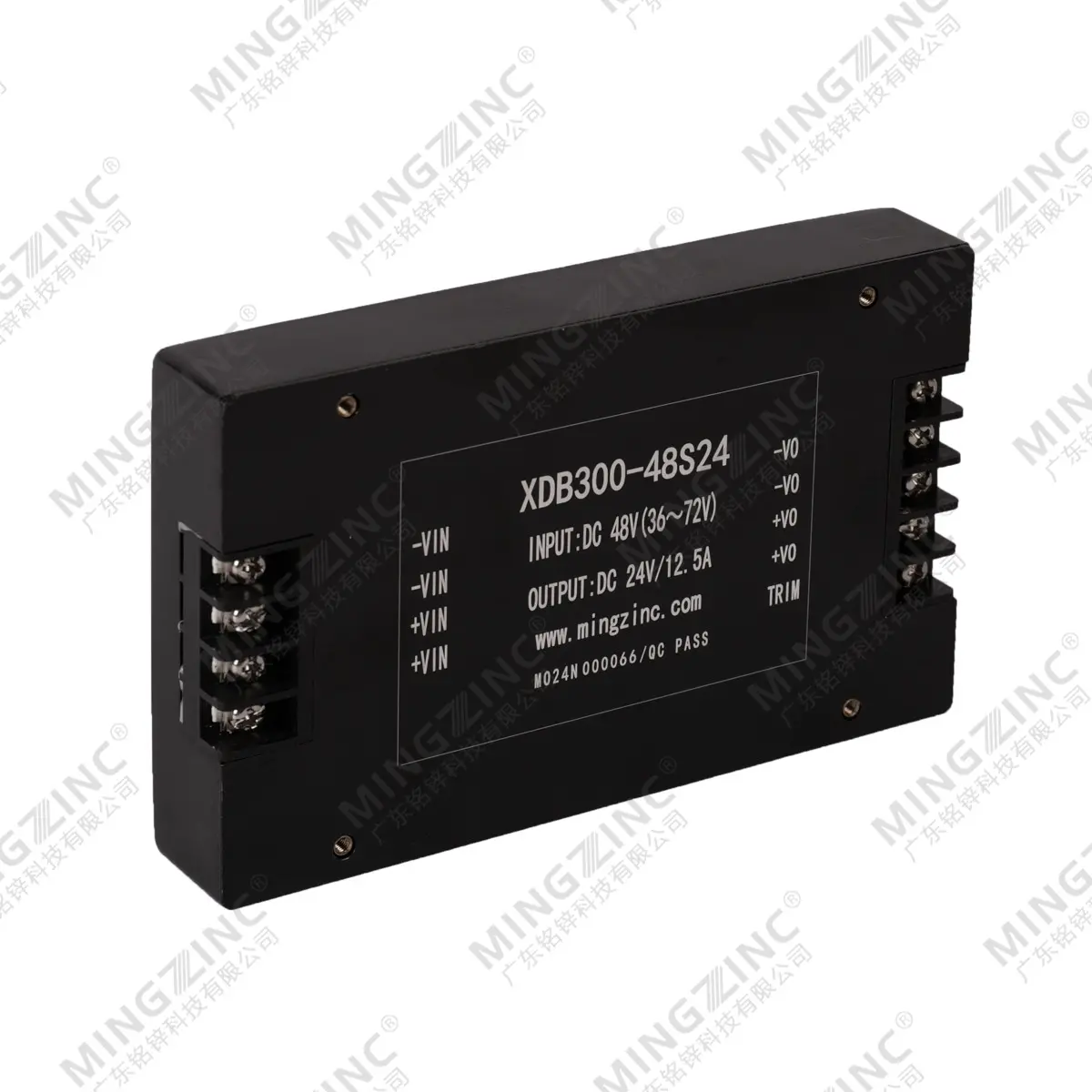

XDB 100-300W New Energy Batteries Power Series DC-DC Isolated Converters
Products
Video Description
I.MODELS LIST
Single Channels Output
|
Models |
Input voltage Range |
Input voltage Rating |
Output Voltage |
Output Current |
Output Power |
Efficiency (Typ) |
|
XDB100-12S12 |
9-18VDC |
12VDC |
12VDC |
8.3A |
100W |
83% |
|
XDB100-12S24 |
9-18VDC | 12VDC | 24VDC |
4.16A |
100W |
85% |
|
XDB200-24S28 |
18-36VDC | 24VDC | 28VDC |
7.14A |
200W |
88% |
|
XDB240-24S48 |
18-36VDC | 24VDC | 48VDC |
5A |
240W |
89% |
|
XDB200-24S12 |
18-36VDC | 24VDC |
12VDC |
16.7A |
200W |
89% |
| XDB200-48S28 |
36-72VDC |
48VDC |
28VDC |
7.14A |
200W |
89% |
|

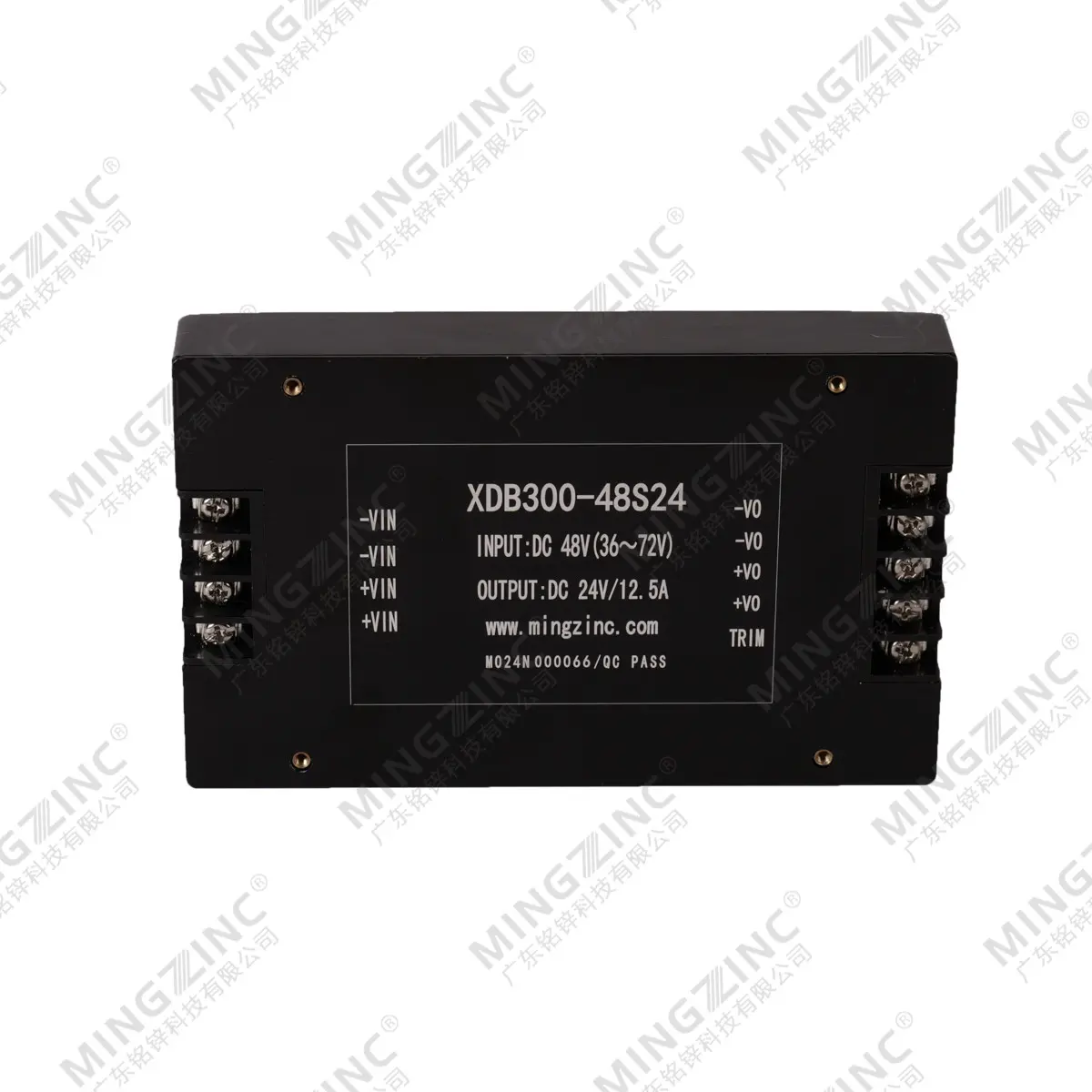

XDB300-48S24 |
36-72VDC | 48VDC | 24VDC |
12.5A |
300W |
89% |
|
XDB100-18S12 |
9-36VDC | 18VDC | 12VDC |
8.3A |
100W |
82% |
|
XDB120-18S24 |
9-36VDC | 18VDC | 24VDC |
5A |
120W |
83% |
Dual Channels Output
|
Model No. |
Input voltage Range |
Input voltage Rating |
Output voltage |
Output Current |
Output Power |
Efficiency (Typ) |
|
XDB150-24D12&24 |
18-36VDC |
24VDC |
12&24 VDC |
10A&2A |
150W |
82% |
|
XDB170-48D05&12 |
36-72VDC | 48VDC |
05&12 VDC |
10A&10A |
170W |
82% |
Only the typical models are listed. If you need other models,please inform the power ,input voltage and output voltage,then feel free to call us.
II. FEATURES
|
1 |
II type input filter |
|
2 |
2X，4X voltage input |
|
3 |
Output short circuit protection |
|
4 |
IagEasy installation ,single side pin out |
|
5 |
Best case attaching mode |
|
6 |
Design for high reliability,longlifetime |
INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
12VDC (Rating) |
9-18VDC |
|
24VDC (Rating) |
18-36VDC |
|
48VDC (Rating) |
36-72VDC |
|
18VDC (Rating) Quadruple Inputs |
9-36VDC |
IV. OUTPUT CHARACTERISTIC
|
Power |
100-300W |
|
Output Current |
3-15A |
|
Output Voltage |
5-48VDC |
| Voltage Set-point Accuracy |
±1% |
|
Line Regulation |
±0.2% |
|
Load Regulation |
±0.4% |
|
rate of change of temperature |
±0.01%/℃ |
|
Output Current Limting |
120% (Typ) |
|
response time |
400μs |
GENERAL CHARACTERISTIC
|
Switching Frequency |
160-200KHz |
|
Isolation Resistance |
200MΩ |
|
MTBF |
>500000 h |
lsolation Voltage
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military l |
-55 – +105℃ |

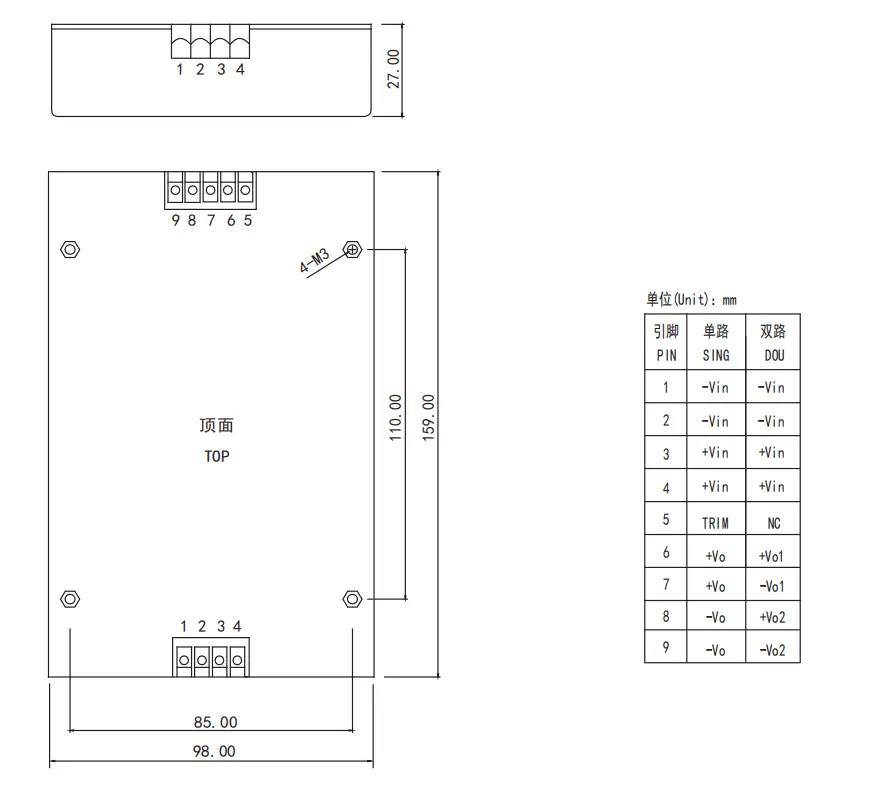

MECHANICAL DRAWING AND PIN DEFINITION
