XDB 480-1000W New Energy Batteries Power Series DC-DC Isolated Converters

Brand: MINGZINC

MOQ: 5 Pieces

Delivery time: 25 Day

Design: Isolated Converter

Power: 480-1000 (W )

Output Voltage: 5-48 （VDC）

Output Current: 5-40（A)

Voltage Set-point Accuracy: ±2%

Response time: 400μs

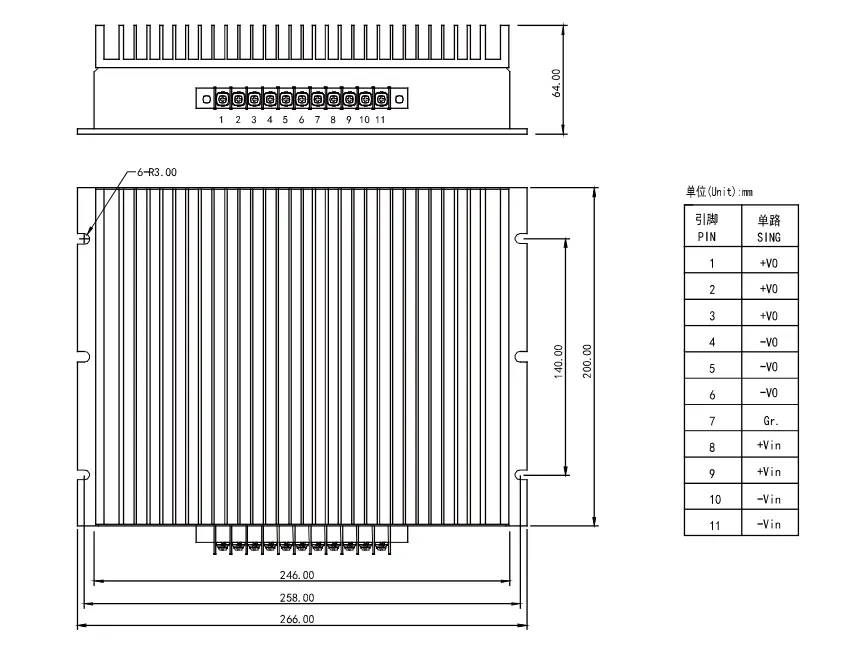

Size: 266*200*64 (MM)

NW: 2.5(KG)

If you can't find the right specifications to meet your needs, we will provide a customized service for different types of DC-DC solutions. Contact us now! Whatever and whenever you ask us , it won't cost you a penny, but an opportunity for both of us.

Social Connect:

Products

Isolated AC-DC converter module

Isolated DC-DC converter module

Solar photovoltaic power series

New energy battery power series

Latest News

Understand the working principle of ACDC module power supply

Application areas of ACDC module power supply

DCDC power module is a common power module

Product Details

Video Description

I.MODELS LIST

Single Channels Output

Model	Input Voltage Range	Input Voltage Ranting	Output Voltage	Output Current	Output Power	Efficiency (Typ)
XDB480-12S12	18-36VDC	24VDC	12VDC	40A	480W	83%
XDB480-24S24	18-36VDC	24VDC	24VDC	20A	480W	85%
XDB560-24S28	18-36VDC	24VDC	28VDC	20A	560W	88%
XDB480-24S48	18-36VDC	24VDC	48VDC	10A	480W	88%
XDB480-48S12	36-72VDC	48VDC	12VDC	40A	480W	83%
XDB720-48S24	36-72VDC	48VDC	24VDC	30A	720W	88%
XDB480-48S48	36-72VDC	48VDC	48VDC	10A	480W	88%
XDB480-110S12	66-154VDC	110VDC	12VDC	40A	480W	82%
XDB720-110S24	66-154VDC	110VDC	24VDC	30A	720W	83%

Only the typical models are listed. If you need other models,please inform the power ,input voltage and output voltage, then feel free to call us.

II. FEATURES

1	II type input filter
2	High and low voltage input is for option
3	2X，voltage input
4	Output short circuit protection
6	Iag Easy installation
5	Design for high reliability ,long lifetime

INPUT CHARACTERISTIC

Rated value(VDC)	Voltage Range(VDC)
12VDC	9-18VDC
24VDC	18-36VDC
48VDC	36-72VDC
110V DC	66-154VDC

IV. OUTPUT CHARACTERISTIC

Power	480-1000W
Output Current	5-40A
Output Voltage	5-48VDC
Voltage Set-point Accuracy	±2%
Line Regulation	±0.5%
Load Regulation	±0.5%
rate of change of temperature	±0.01%/℃
Output Current Limting	120%(Typ)
response time	400μs

GENERAL CHARACTERISTIC

Switching Frequency	160-200KHz
Isolation Resistance	200MΩ
MTBF	>500000 h

lsolation Voltage

Input-Output	>1500VDC
Input-Case	>1050VDC
Output-Case	>500VDC

Environmental Characteristics

Case Temperature	Industry	-25 ~ +85℃
	Military l	-40 ~ +85℃
	Military II	-55 ~ +85℃
Storage Temperature	Industry	-45 ~ +105℃
Storage Temperature	Military l	-55 ~ +105℃
