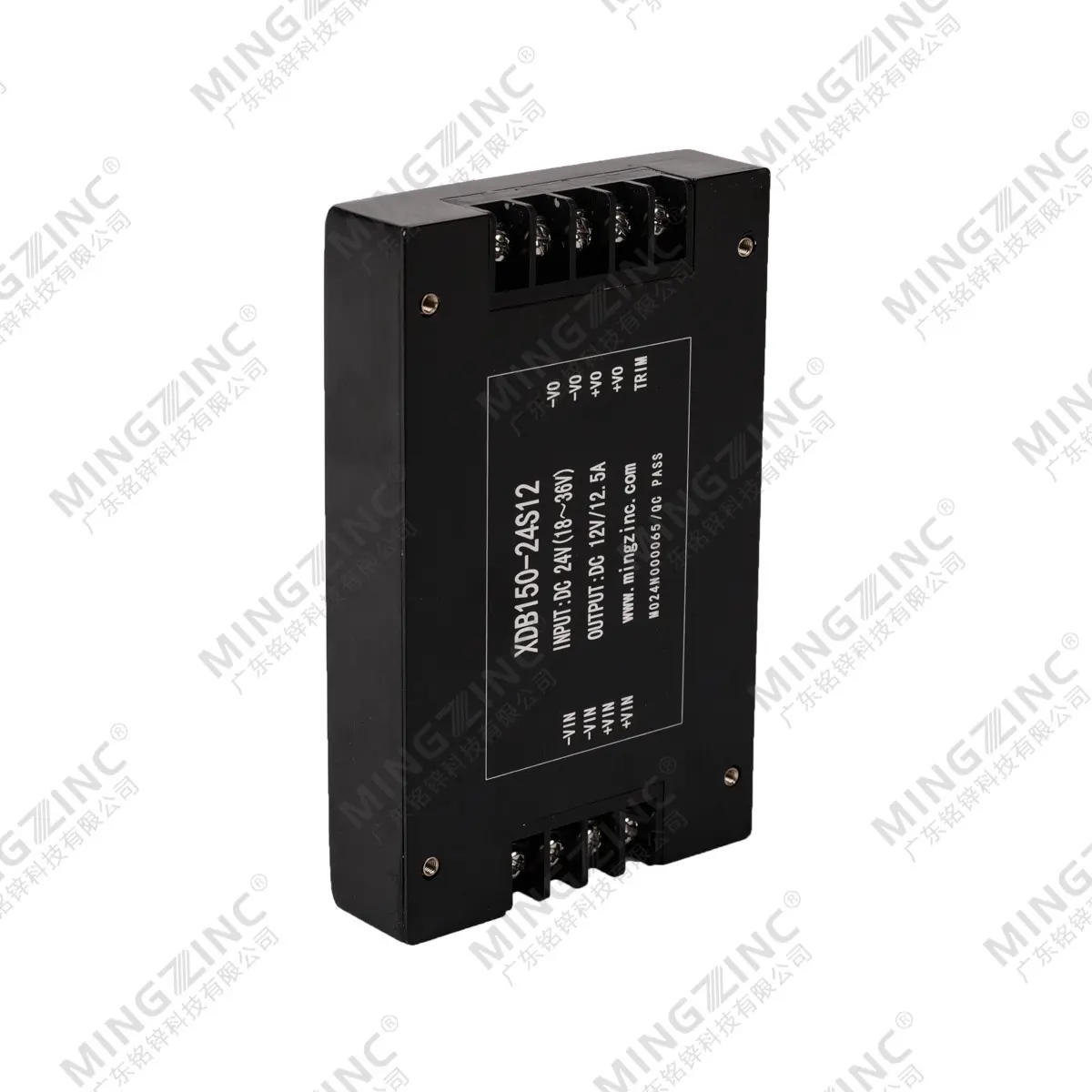

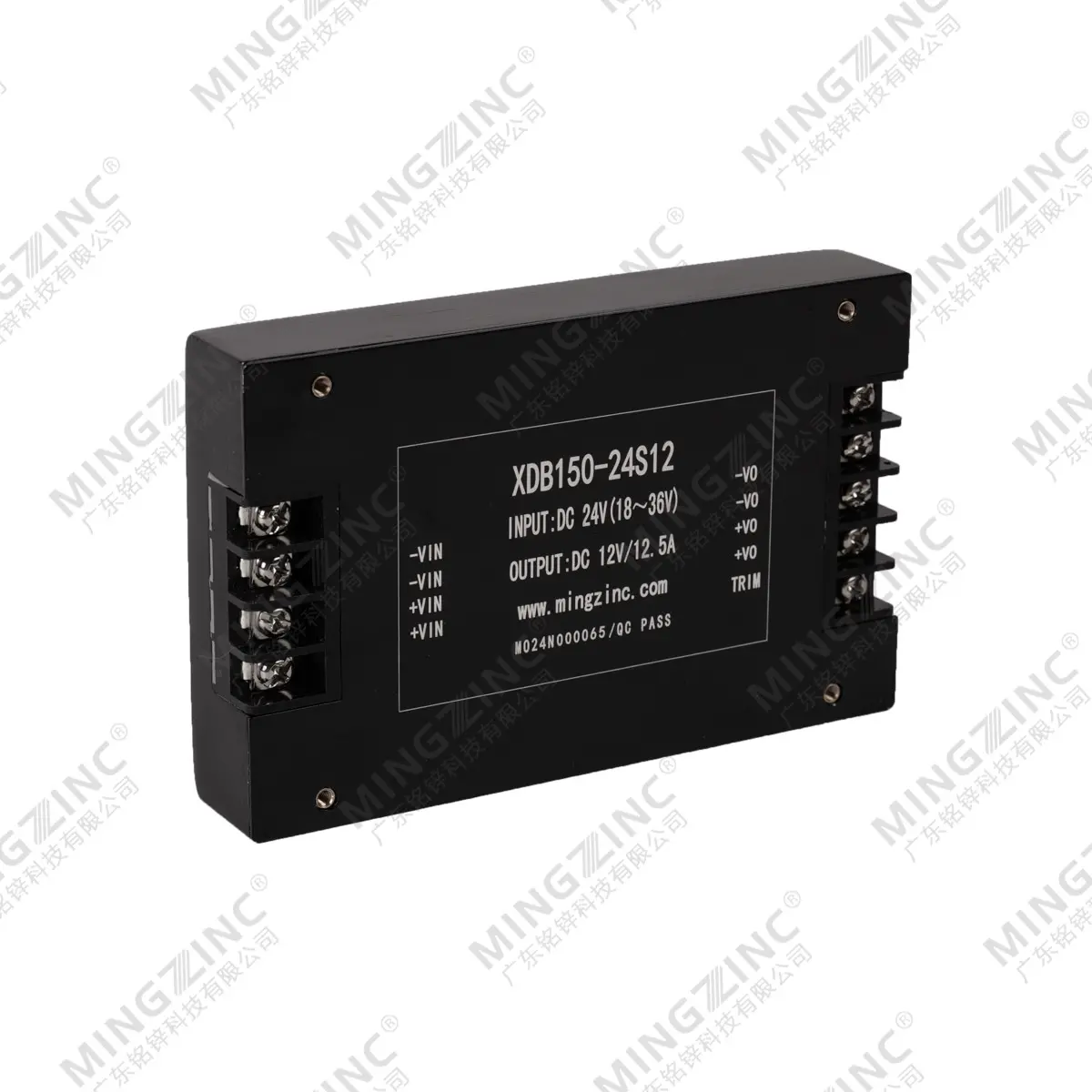

XDB100-150W New Energy Batteries Power series DC-DC Isolated Converters
Products
Video Description
I.MODELS LIST
Single Channels Output
|
Model |
Input Voltage Range |
Input Voltage Rating |
Output Voltage |
Output Current |
Output Power |
Efficiency (Typ) |
|
XDB100-12S05 |
9-18VDC |
12VDC |
05VDC |
20A |
100W |
82% |
|
XDB100-12S12 |
9-18VDC |
12VDC |
12VDC |
8.33A |
100W |
82% |
|
XDB150-12S13.8 |
9-18VDC |
12VDC |
13.8VDC |
10.87A |
150W |
82% |
|
XDB100-24S05 |
18-36VDC |
24VDC |
05VDC |
20A |
100W |
85% |
|
XDB150-24S12 |
18-36VDC |
24VDC |
12VDC |
12.5A |
150W |
82% |
|
XDB150-24S15 |
18-36VDC |
24VDC |
15VDC |
10A |
150W |
83% |
|
XDB100-48S05 |
36-72VDC |
48VDC |
05VDC |
20A |
100W |
85% |
|
XDB150-48S12 |
36-72VDC |
48VDC |
12VDC |
12.5A |
150W |
86% |
|
XDB150-110S24 |
66-154VDC |
110VDC |
24VDC |
6.25A |
200 |
85% |
Dual Channels Output
|
Model |
Input Voltage Range |
Input Voltage Rating |
Output Voltage |
Output Current |
Output Power |
Efficiency (Typ) |
|
XDB50-12D05&05 |
9-18VDC |
12VDC |
05&05 VDC |
05A&05A |
50W |
82% |
|
XDB100-12D05&12 |
9-18VDC |
12VDC |
05&12 VDC |
15A&2.1A |
100W |
83% |
|
XDB75-24D12&12 |
18-36VDC |
24VDC |
12&12 VDC |
3.13A&3.13A |
75W |
83% |
|
XDB150-24D15&15 |
18-36VDC |
24VDC |
15&15 VDC |
8A&2A |
150W |
87% |
|
XDB132-24D24&12 |
18-36VDC |
24VDC |
24&12 VDC |
4A&3A |
132W |
85% |
|
XDB100-48D05&12 |
36-72VDC |
48VDC |
05&12 |
15A&2A |
100W |
88% |
|
XDB120-48D12&24 |
36-72VDC |
36-72VDC |
12&24 |
8A&1A |
120W |
85% |
Only the typical models are listed. If you need other models,please inform the power ,input voltage and output voltage,then feel free to call us.
II. FEATURES
|
1 |
II type input filter |
|
2 |
2X，4X voltage input |
|
3 |
Output short circuit protection |
|
4 |
iag Easy installation ,single side pin out |
|
5 |
Best case attaching mode |
|
6 |
Design for high reliability,longlifetime |
INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
12VDC |
9-18VDC |
|
24VDC |
18-36VDC |
|
48VDC |
36-72VDC |
|
110VDC |
66-154VDC |
|
|
|
IV. OUTPUT CHARACTERISTIC
|
Power |
100-150W |
|
Output Current |
3-15A |
|
Output Voltage |
2-30VDC |
|
Voltage Set-point Accuracy |
±1% |
|
Line Regulation |
±0.2% |
|
Load Regulation |
±0.4% |
|
rate of change of temperature |
±0.01%/℃ |
|
Output Current Limting |
120%(Typ) |
|
response time |
400μs |
GENERAL CHARACTERISTIC
|
Switching Frequency |
160-200KHz |
|
Isolation Resistance |
200MΩ |
|
MTBF |
>500000 h |
lsolation Voltage
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Case Temperature |
Industry |
-25 ~ +85℃ |
|
Military l |
-40 ~ +85℃ |
|
|
Military II |
-55 ~ +85℃ |
|
|
Storage Temperature |
Industry |
-45 ~ +105℃ |
|
Military l |
-55 ~ +105℃ |

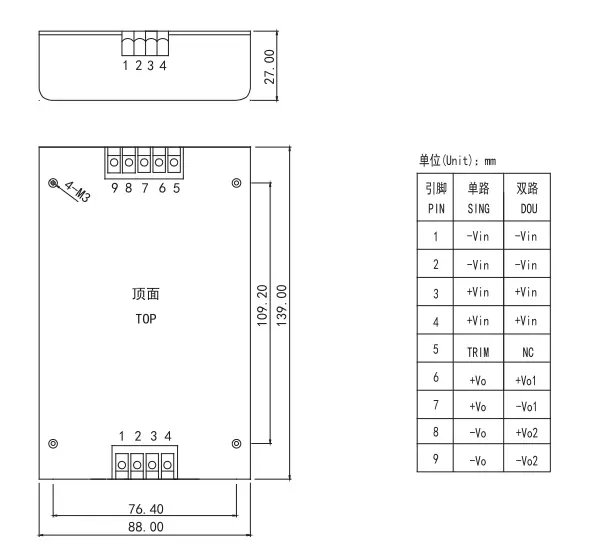

MECHANICAL DRAWING AND PIN DEFINITION
