36/48 12V 10A 120W DC-DC converter, non-isolated module
Products
Latest News
√（Full power）
√（100% aging test）
√（Efficiency up to 95%）
√（Direct cooling）
√（2-year warranty）
√（Easy to install）
√（IP68 waterproof, sealed, dust proof, anti vibration）
1、Input Characteristic
Input voltage range: 30-60V
Stable output voltage: 12V
Maximum output current: 10A
Suggested long-term working current: Adaptive for 7A and below
2、Product Information
|
P/N |
MB10-3648-12A |
|
Effciency |
95% |
|
Input Voltage |
30-60VDC |
|
Output Voltage |
12VDC |
|
Output Current |
10A |
|
Ripple |
200mVp |
|
Line Regulation |
±0.2% |
|
Load Regulation |
±0.2% |
|
Voltage Accuracy |
±1.5% |
|
Enclosures |
IP68 |
|
Dimension |
74*74*32mm |
|
Net Weight |
0.3kg |
|
OperatingTemperature |
-40~85℃ |
|
Warranty |
2 year |
The above parameters were tested in an indoor temperature of 25degrees Celsius
3、General Characteristic
√ Overcurrent protection: When the output current exceeds the set value, the output voltage gradually decreases until there is no voltage output
√ Over temperature protection: When the working environment temperature of theshell is -40-85 ℃ ≥ 85 ℃, the power converter stops working and the current decreases
√ Low voltage protection: When the input voltage is lower than the set value, the output voltage gradually decreases until there is no voltage output
√ Output short circuit protection: Under normal use, the positive and negative terminals of the output end are instantly short circuited, which will not cause damage to the power converter

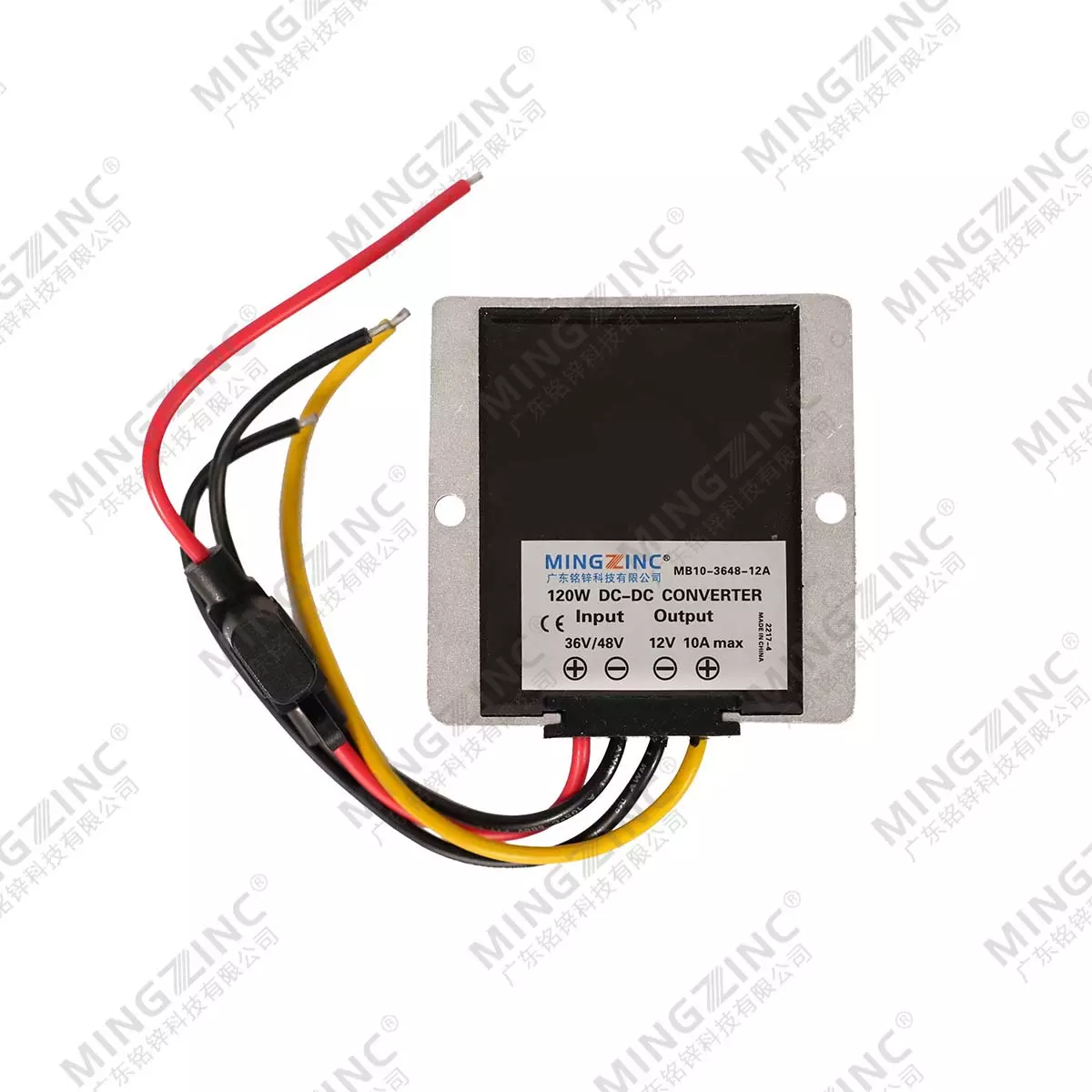

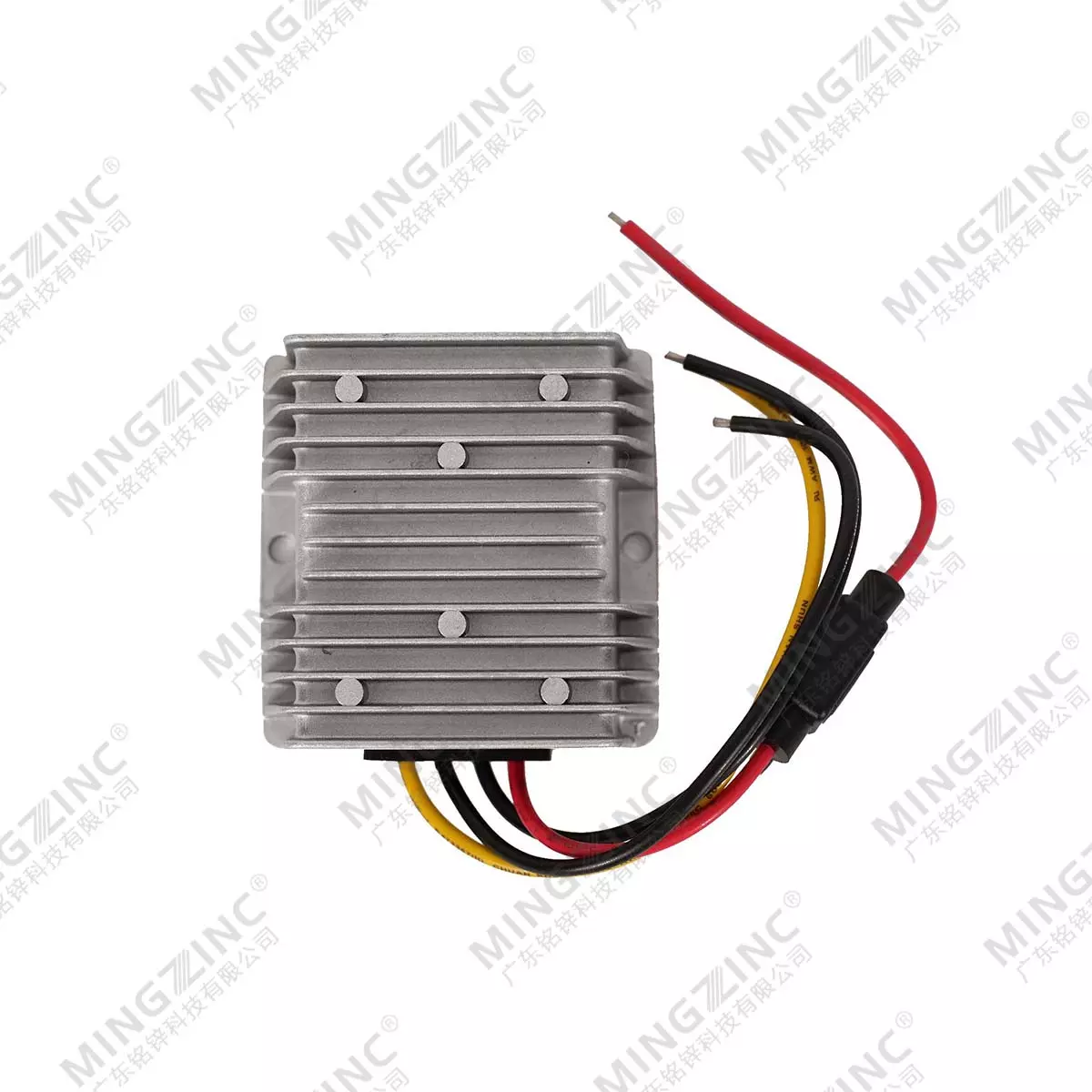

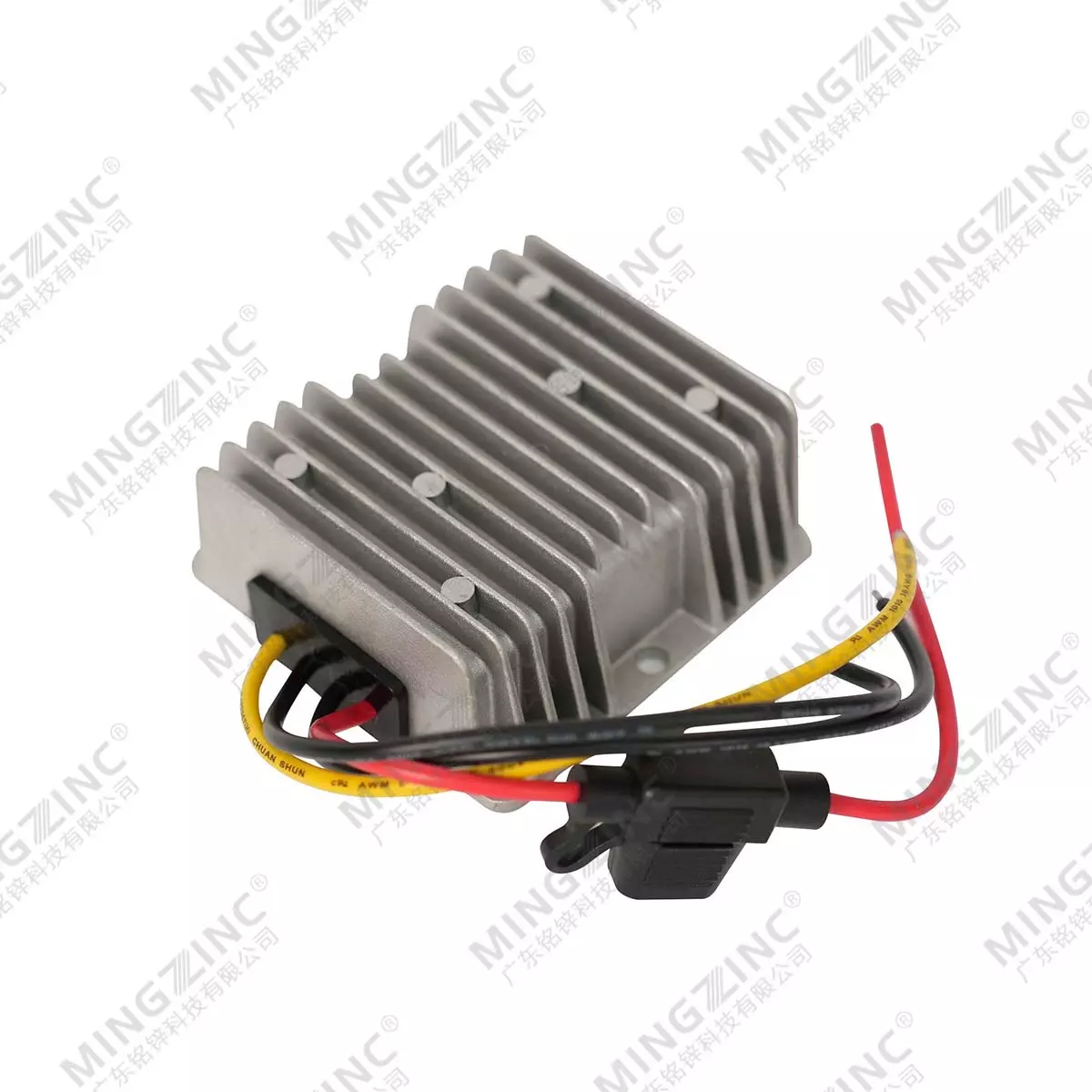

4、Product Display

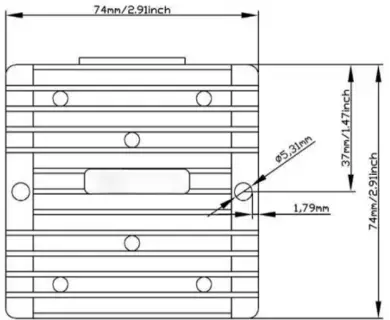

5、Boundary dimensions and wiring definitions
Wiring definition
OUTPUT-:negative load terminal
OUTPUT+:positive load terminal
INPUT-:negative electrode of battery
INPUT+:positive electrode of battery
