In modern industrial automation systems, 24VDC is the most widely used control voltage. PLCs, sensors, VFD control circuits, and HMI modules all depend on stable 24V DC power. Yet industrial environments are harsh — voltage fluctuations, EMI, and ground loops threaten system stability daily. Choosing the right DC-DC power module is a critical engineering decision.

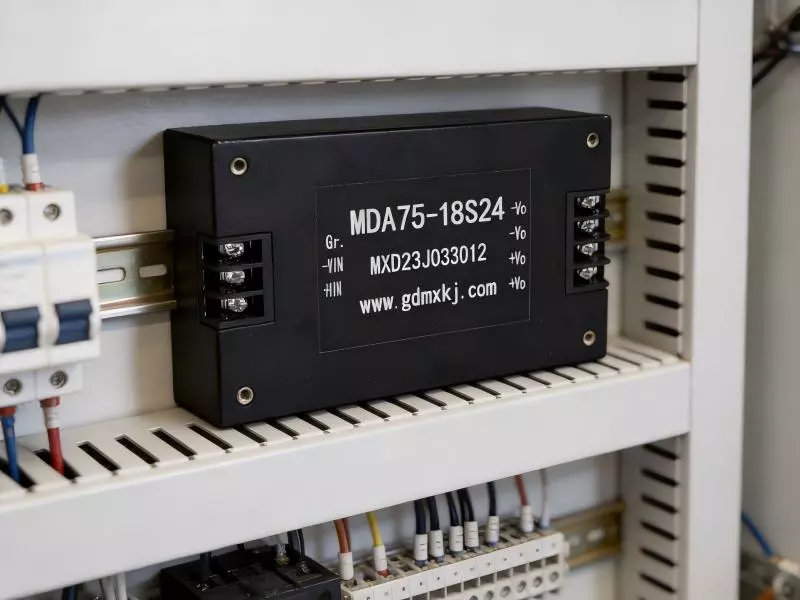

This article analyzes the power supply challenges in industrial automation and explains how the MDA75-18S24 isolated DC-DC converter addresses them with its key technical advantages.
1. Severe Input Voltage Fluctuations
Factory power distribution is far from ideal. Heavy motor starts, welding equipment, and sudden load changes cause 24V bus voltage to dip below 18V under load or spike above 28V at no-load. Standard non-wide-input DC-DC modules fail frequently in this environment.
2. Pervasive Electromagnetic Interference
Variable frequency drives, contactors, and motor drives generate strong conducted and radiated EMI during operation. Without proper filtering, this interference couples into control circuits, causing PLC misoperations, communication errors, or module damage.
3. Ground Loop-Induced Measurement Errors
Industrial equipment is widely distributed, creating ground potential differences. Without galvanic isolation, common-mode voltage degrades sensor accuracy and corrupts communication signals.
4. Space Constraints and Maintenance Difficulty
Control cabinets are densely packed. Once installed, power modules must operate reliably without frequent maintenance.
| Parameter |
Specification |
| Model |
MDA75-18S24 |
| Nominal Input Voltage |
18 VDC |
| Input Voltage Range |
9–36 VDC (2:1 wide range) |
| Output Voltage |
24 VDC |
| Output Current |
3.13 A |
| Output Power |
75 W |
| Ripple & Noise (PK-PK) |
200 mV |
| Efficiency (typical) |
84% |
| Isolation Voltage (Input-Output) |
>1500 VDC |
| Isolation Voltage (Input-Case) |
>1050 VDC |
| Isolation Voltage (Output-Case) |
>500 VDC |
| Operating Temp (Industrial) |
-25°C ~ +85°C |
| Operating Temp (Military Grade I) |
-40°C ~ +85°C |
| Operating Temp (Military Grade II) |
-55°C ~ +85°C |
| Dimensions |
116.4 × 65 × 22 mm |
| Switching Frequency |
100–200 KHz |
| Protection |
UVP, OVP, OTP, OCP, SCP |
Five-layer Protection:
- Input Under-voltage Protection (UVP): Prevents overheating at low input voltage
- Input Over-voltage Protection (OVP): Guards against supply surges
- Over-temperature Protection (OTP): Reduces output or shuts down when case temperature exceeds limits
- Output Over-current Protection (OCP): Limits current during overload, protecting downstream loads
- Output Short-circuit Protection (SCP): Auto-recovery after short circuit, minimizing maintenance costs
Key Features:
- π-type input filter: Effective conducted EMI suppression, meeting industrial EMC requirements
- 1500VDC high isolation: Completely eliminates ground loop interference
- 2:1 wide input range: Covers full 18V battery supply operating envelope without derating
- Compact metal housing: EMI shielding + efficient heat dissipation, easy PCB integration
- Dual temperature grades available: Standard industrial (-25°C) or military-grade (-40°C / -55°C)
PLCs typically require stable 24V power for I/O modules, communication modules, and expansion units. The MDA75-18S24's 9-36VDC wide input range covers the full voltage swing of 24V batteries during charge/discharge cycles, ensuring uninterrupted PLC operation. The 1500VDC isolation establishes a safety barrier between PLC CPU units and field devices.
Industrial pressure sensors, temperature transmitters, and level gauges operate on 24V loop power and are highly sensitive to supply noise. Power supply ripple directly adds to 4-20mA or 0-10V measurement signals, causing measurement errors. The MDA75-18S24's 200mV low-ripple output combined with π-type filtering ensures signal purity.
VFD main circuits operate at high voltage (380VAC-480VAC), while their control circuits typically require 24V isolated power. The MDA75-18S24's high isolation voltage (1500VDC) establishes reliable isolation between high-voltage and low-voltage circuits, preventing mains interference from coupling into control circuits.
RS-485, CAN, and Modbus RTU industrial bus systems have strict power quality requirements. The MDA75-18S24's low ripple and high isolation provide clean, stable power for communication gateways and protocol converters, extending communication distance and reducing bit error rates.
When selecting a 24VDC isolated power module for industrial automation systems, prioritize these specifications:
| Selection Criteria |
Recommended Value |
| Input Voltage Range |
9–36VDC to cover full 24V battery operating envelope |
| Isolation Voltage |
≥1500VDC to eliminate ground loop interference |
| Output Ripple |
≤200mV to protect sensitive measurement signals |
| Protection Features |
UVP, OCP, SCP minimum |
| Operating Temperature |
Industrial or military grade based on environment |
| Efficiency |
≥83% to reduce heat and improve long-term reliability |
The MDA75-18S24 meets or exceeds all recommended values — the ideal choice for 24V industrial automation power supply.
Power supply quality directly determines the stability and reliability of industrial automation control networks. The MDA75-18S24 delivers 75W isolated power conversion, 9-36VDC wide input, 1500VDC high isolation, and five-layer protection — providing stable, clean 24V power for PLCs, sensors, VFDs, and communication modules. It is the premier choice for high-reliability industrial environments.
