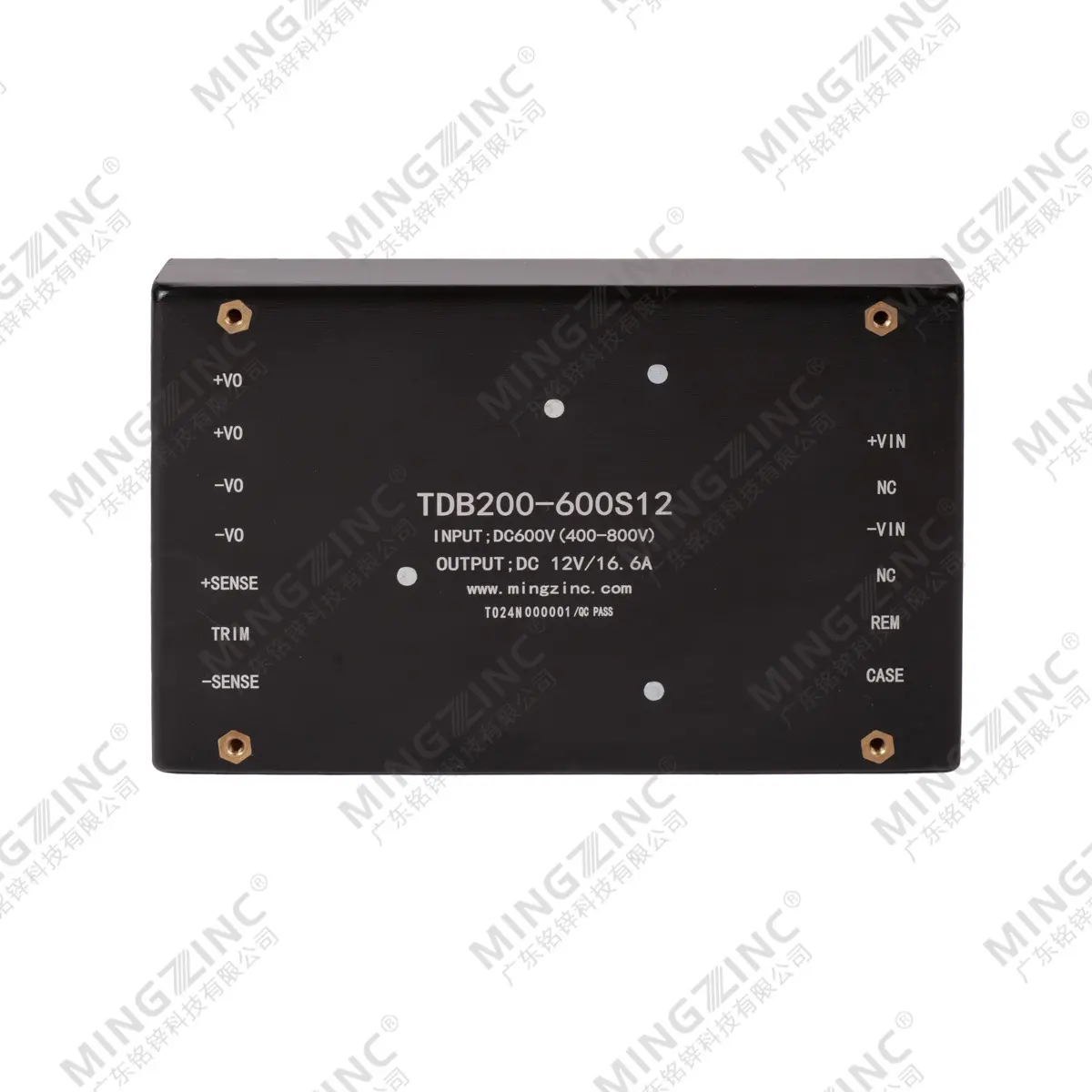

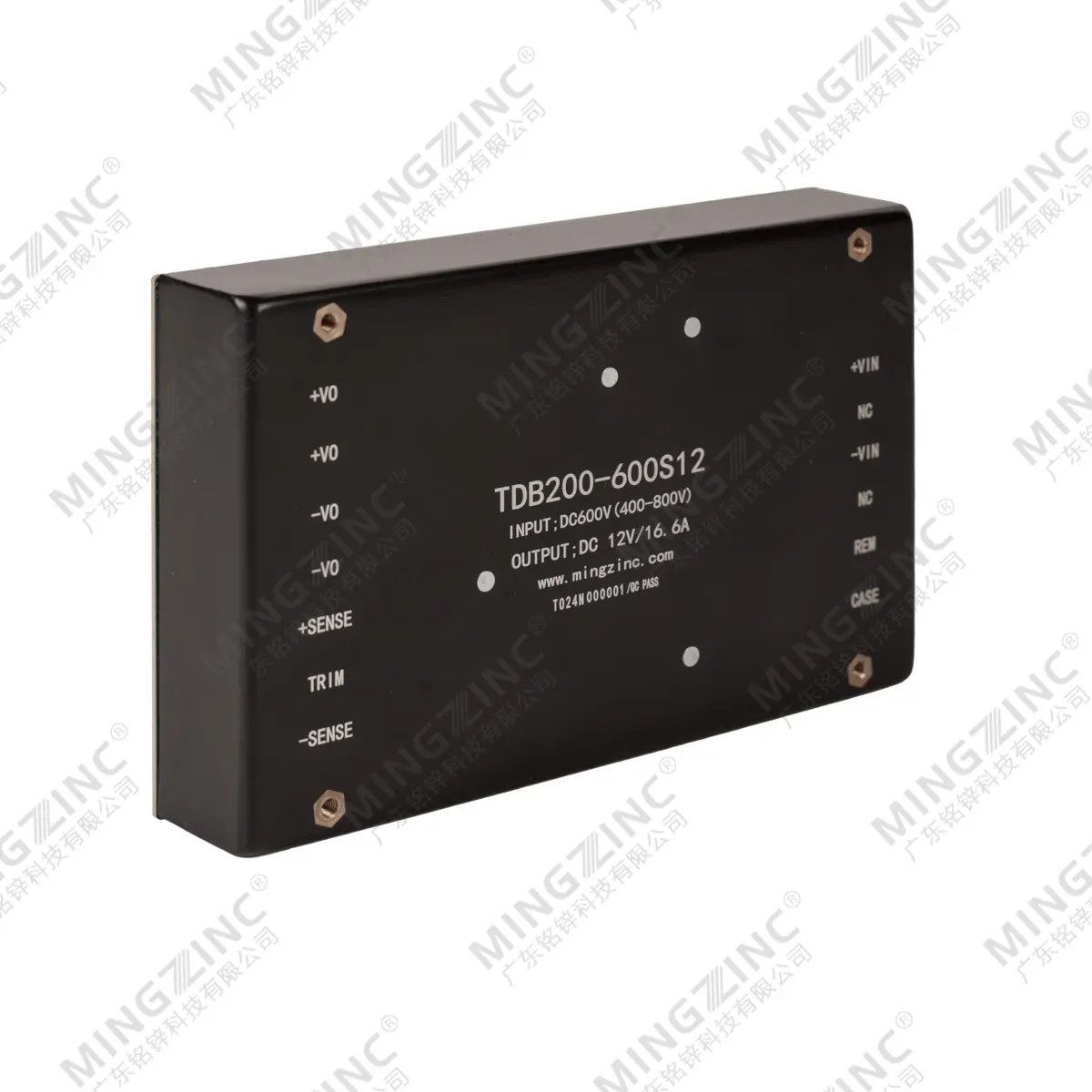

TDB 150-300W Series DC-DC Isolated Converter Module
Products
Latest News
Video Description
I.MODELS LIST
Single Channels Output
|
Models |
Input Voltage Range |
Input Voltage Ranting
|
Output Voltage |
Output Current |
Output Power |
Efficiency (Typ) |
|
TDB150-110S05 |
70-140VDC |
110VDC |
05VDC |
30A |
150W |
82% |
|
TDB240-110S12 |
70-140VDC |
110VDC |
12VDC |
20A |
240W |
86% |
|
TDB240-110S24 |
70-140VDC |
110VDC |
24VDC |
10A |
240W |
88% |
|
TDB150-300S05 |
200-400VDC |
300VDC |
05VDC |
30A |
150W |
82% |
|
TDB150-300S12 |
200-400VDC |
300VDC |
12VDC |
12.5A |
150W |
86% |
|
TDB300-300S12 |
200-400VDC |
300VDC |
12VDC |
25A |
300W |
85% |
|
TDB300-300S15 |
200-400VDC |
300VDC |
15VDC |
20A |
300W |
87% |
|
TDB200-300S24 |
200-400VDC |
300VDC |
24VDC |
8.33A |
200W |
88% |
|
TDB300-300S24 |
200-400VDC |
300VDC |
24VDC |
12.5A |
300W |
88% |
|
TDB300-300S48 |
200-400VDC |
300VDC |
48VDC |
6.25A |
300W |
92% |
|
TDB400-300S48 |
200-400VDC |
300VDC |
48VDC |
8.33A |
400W |
92% |
|
TDB150-600S05 |
400-800VDC |
600VDC |
05VDC |
30A |
150W |
87% |
|
TDB200-600S12 |
400-800VDC |
600VDC |
12VDC |
16.7A |
200W |
89% |
|
TDB300-600S24 |
400-800VDC |
600VDC |
24VDC |
12.5A |
300W |
91% |
Only typical models listed. If you need other models,please inform the power ,input voltage and output voltage, then feel freen to call us.
II. FEATURES
|
1 |
Wide range of input voltage |
|
2 |
Design for high reliability,long lifetime |
|
3 |
Under-&over-voltage protection for output |
|
4 |
Iag 92% Full load efficiency up to 92% |
|
5 |
Fast dynamic response |
|
6 |
26W/in³ UP to 26W/in³ power density |
|
7 |
High voltage input , high output power |
|
8 |
Wide range of power ,easy to upgrade |
INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
110 VDC |
70-140VDC |
|
300 VDC |
200-400VDC |
|
600VDC |
400-800VDC |
IV. OUTPUT CHARACTERISTIC
|
Power |
150-400W |
|
Output Current |
2-30A |
|
Output Voltage |
5-48VDC |
|
Voltage Set-point Accuracy |
±1% |
|
Voltage set-point Accuracy |
±10% |
|
Line Regulation |
±0.2% |
|
Load Regulation |
±0.4% |
|
rate of change of temperature |
±0.01%/℃ |
|
Output Current Limting |
120%(Typ) |
|
response time |
400μs |
GENERAL CHARACTERISTIC
|
Switching Frequency |
160-200KHz |
|
Isolation Resistance |
200MΩ |
|
MTBF |
>500000 h |
lsolation Voltage
|
Input-Output |
>2000VDC |
|
Input-Case |
>2000VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military l |
-55 – +105℃ |

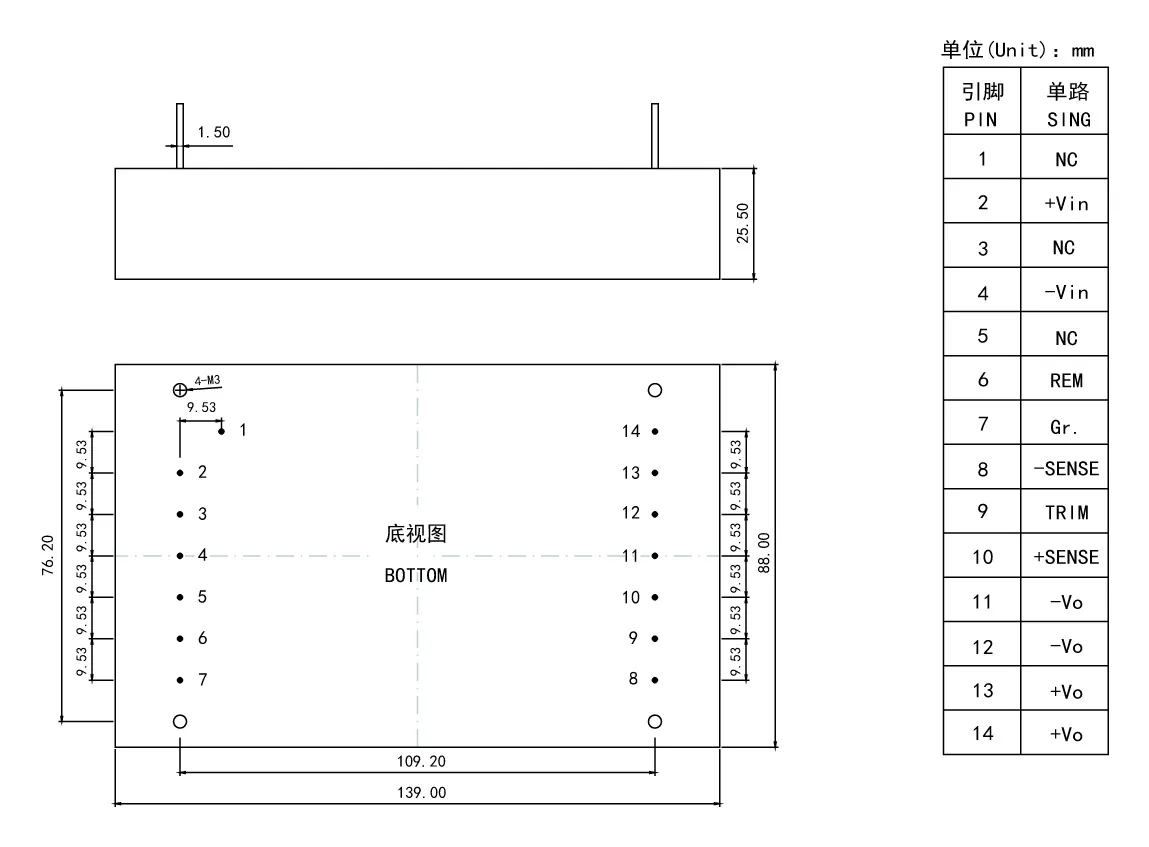

MECHANICAL DRAWING AND PIN DEFINITION
