XDB 480-1000W New Energy Batteries Power Series DC-DC Isolated Converters
Products
Latest News
Video Description
I.MODELS LIST
Single Channels Output
|
Model |
Input Voltage Range |
Input Voltage Ranting |
Output Voltage |
Output Current |
Output Power |
Efficiency (Typ) |
|
XDB480-12S12 |
18-36VDC |
24VDC |
12VDC |
40A |
480W |
83% |
|
XDB480-24S24 |
18-36VDC | 24VDC |
24VDC |
20A |
480W |
85% |
|
XDB560-24S28 |
18-36VDC | 24VDC |
28VDC |
20A |
560W |
88% |
|
XDB480-24S48 |
18-36VDC | 24VDC |
48VDC |
10A |
480W |
88% |
|
XDB480-48S12 |
36-72VDC | 48VDC |
12VDC |
40A |
480W |
83% |
|
XDB720-48S24 |
36-72VDC | 48VDC |
24VDC |
30A |
720W |
88% |
|
XDB480-48S48 |
36-72VDC | 48VDC |
48VDC |
10A |
480W |
88% |
|
XDB480-110S12 |
66-154VDC | 110VDC |
12VDC |
40A |
480W |
82% |
|
XDB720-110S24 |
66-154VDC | 110VDC |
24VDC |
30A |
720W |
83% |
Only the typical models are listed. If you need other models,please inform the power ,input voltage and output voltage, then feel free to call us.
II. FEATURES
|
1 |
II type input filter |
|
2 |
High and low voltage input is for option |
|
3 |
2X，voltage input |
|
4 |
Output short circuit protection |
|
6 |
Iag Easy installation |
|
5 |
Design for high reliability ,long lifetime |
INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
12VDC |
9-18VDC |
|
24VDC |
18-36VDC |
|
48VDC |
36-72VDC |
|
110V DC |
66-154VDC |
IV. OUTPUT CHARACTERISTIC
|
Power |
480-1000W |
|
Output Current |
5-40A |
|
Output Voltage |
5-48VDC |
|
Voltage Set-point Accuracy |
±2% |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
rate of change of temperature |
±0.01%/℃ |
|
Output Current Limting |
120%(Typ) |
|
response time |
400μs |
GENERAL CHARACTERISTIC
|
Switching Frequency |
160-200KHz |
|
Isolation Resistance |
200MΩ |
|
MTBF |
>500000 h |
lsolation Voltage
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Case Temperature |
Industry |
-25 ~ +85℃ |
|
Military l |
-40 ~ +85℃ |
|
|
Military II |
-55 ~ +85℃ |
|
|
Storage Temperature |
Industry |
-45 ~ +105℃ |
|
Military l |
-55 ~ +105℃ |

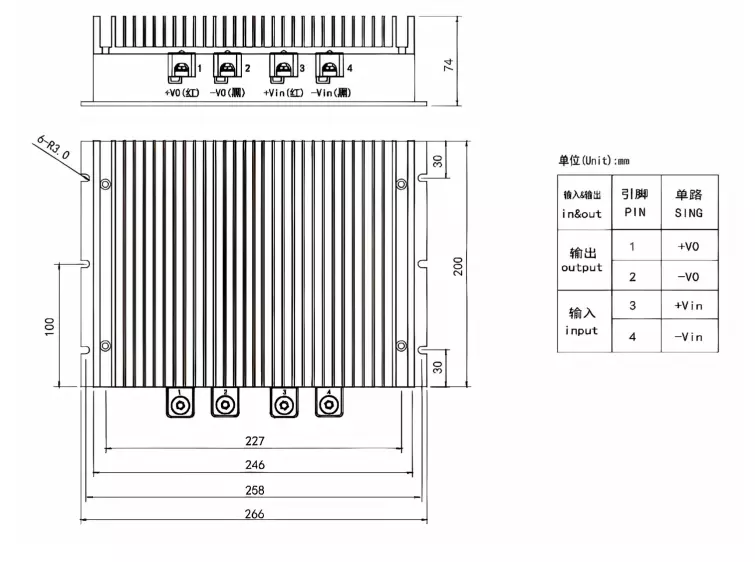

MECHANICAL DRAWING AND PIN DEFINITION
