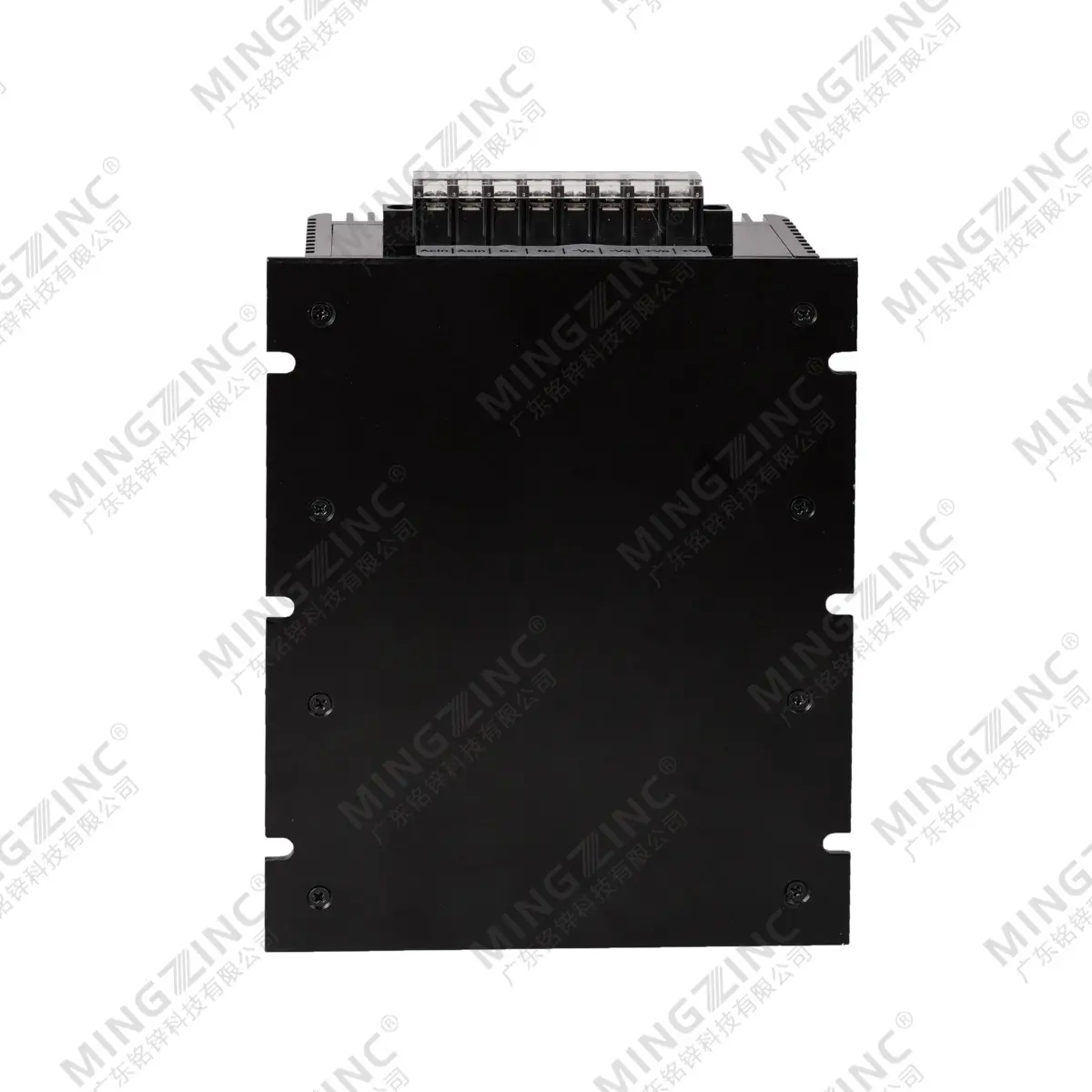

MAG300-500W Series Isolated AC-DC Converters Modules
Products
Latest News
Video Description
I. MODELS LIST
Single Channels Output
|
Models |
Input Voltage Range |
Input Voltage Rating |
Output Voltage |
Output Current |
Output Power |
Efficiency (Typ) |
|
MAG400-220S12 |
176-264VAC |
220VAC |
12VDC |
33.3A |
400W |
88% |
|
MAG450-220S15 |
176-264VAC |
220VAC |
15VDC |
30A |
450W |
88% |
|

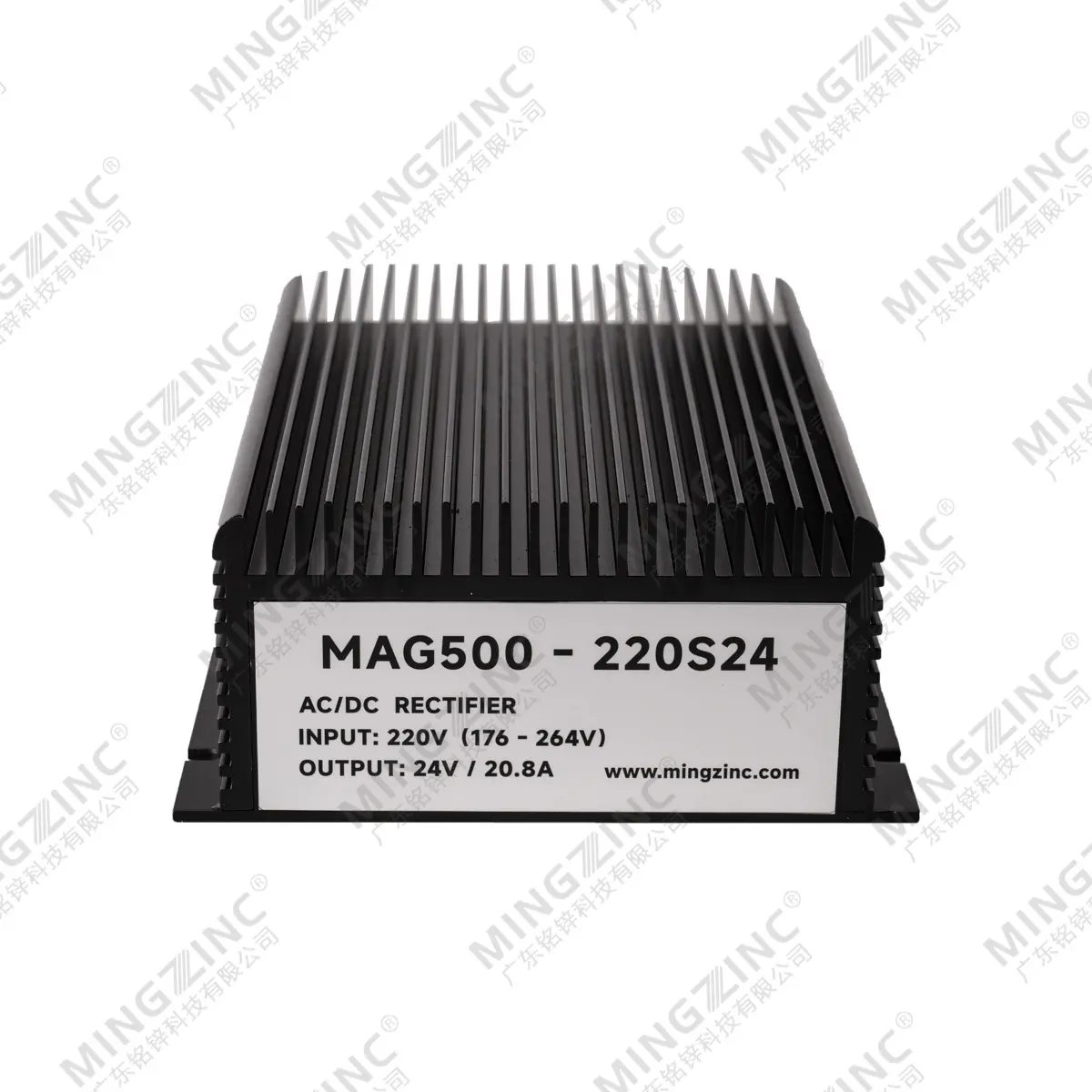

MAG500-220S24 |
176-264VAC |
220VAC |
24VDC |
20.8A |
500W |
89% |
|
MAG500-220S28 |
176-264VAC |
220VAC |
28VDC |
17.8A |
500W |
89% |
Dual Channels Output
|
Models |
Input voltage Range |
Input voltage Rating |
Output voltage |
Output current |
Output Power |
Efficiency (Typ) |
|
MAG330-220D05&28 |
176-264VAC |
220VAC |
05&28VDC |
10&10A |
330W |
82% |
|
MAG300-220D05&19 |
176-264VAC |
220VAC |
05&19VDC |
10&12A |
300W |
82% |
II. FEATURES
|
1 |
Broadband noise filter of input |
|
2 |
Surge suppress circuit of input |
|
3 |
Comply with UL 1950,IEC950 safety regulation |
|
4 |
Attractive outline design |
|
5 |
Terminal connection method |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VAC) |
Voltage Range(VAC) |
|
220 VAC |
176-264 VAC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
300-500W |
|
Output Voltage |
12-48VDC |
|
Output Current |
3-50A |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
Switching Frequency |
100-200KHz |
|
lsolation Resistance |
200MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>1500VAC/1 min leakage current ＜5mA |
|
Input-Case |
＞1500VAC/1 min leakage current ＜5mA |
|
Output-Case |
＞500VDC/1 min |
|
Main-Vice |
＞500VDC/1 min |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military l |
-55 – +105℃ |
|
VI. MECHANICAL DRAWING AND PIN DEFINITION
