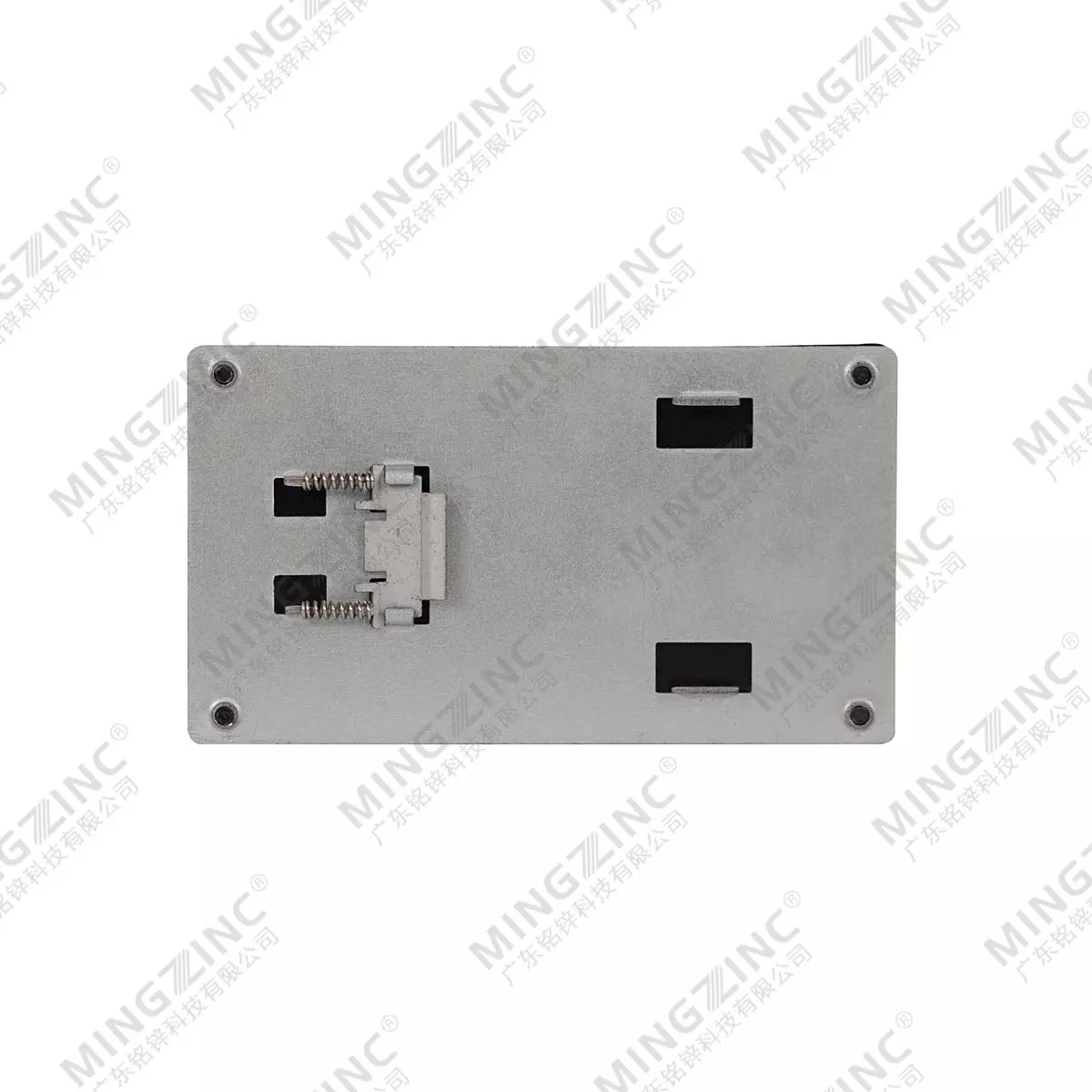

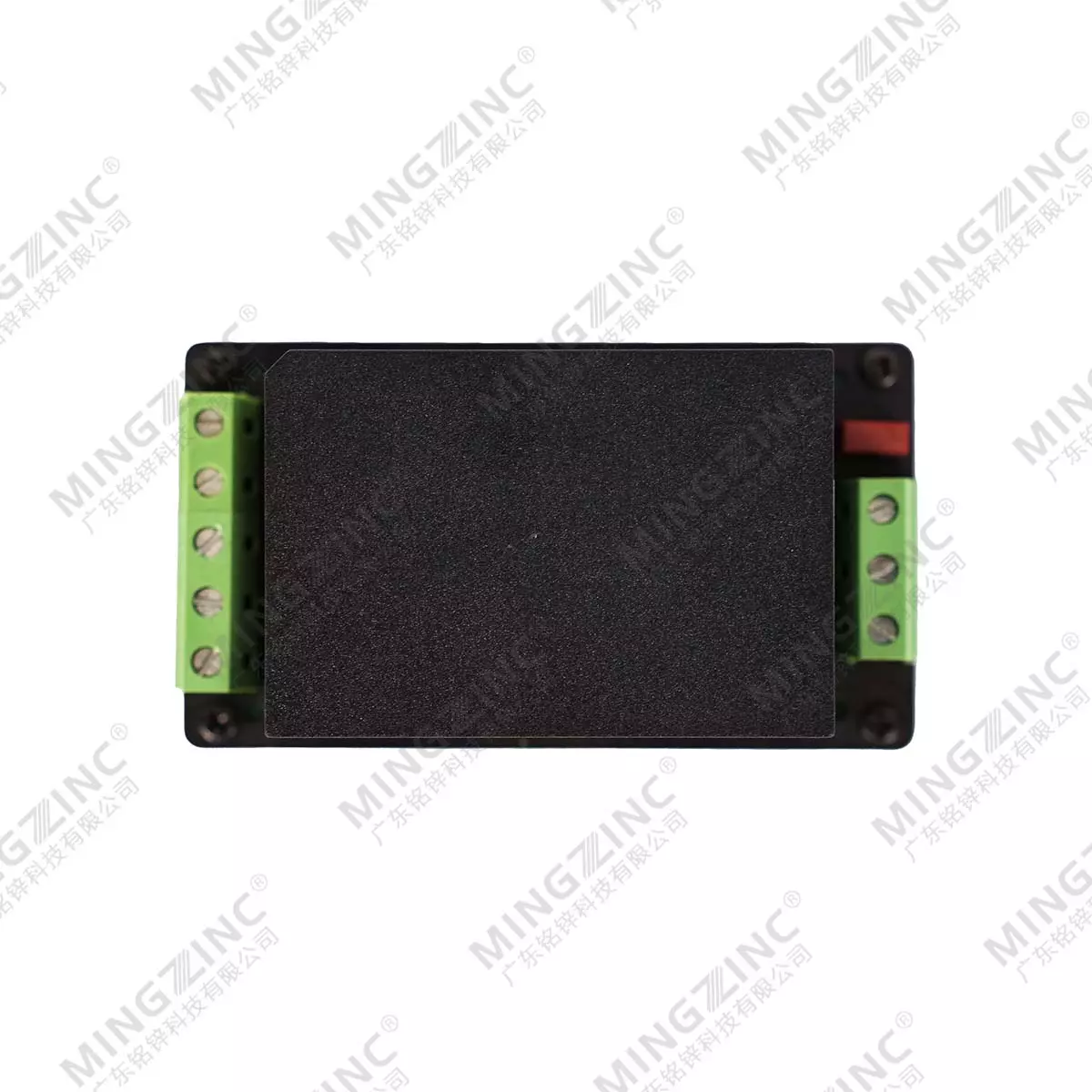

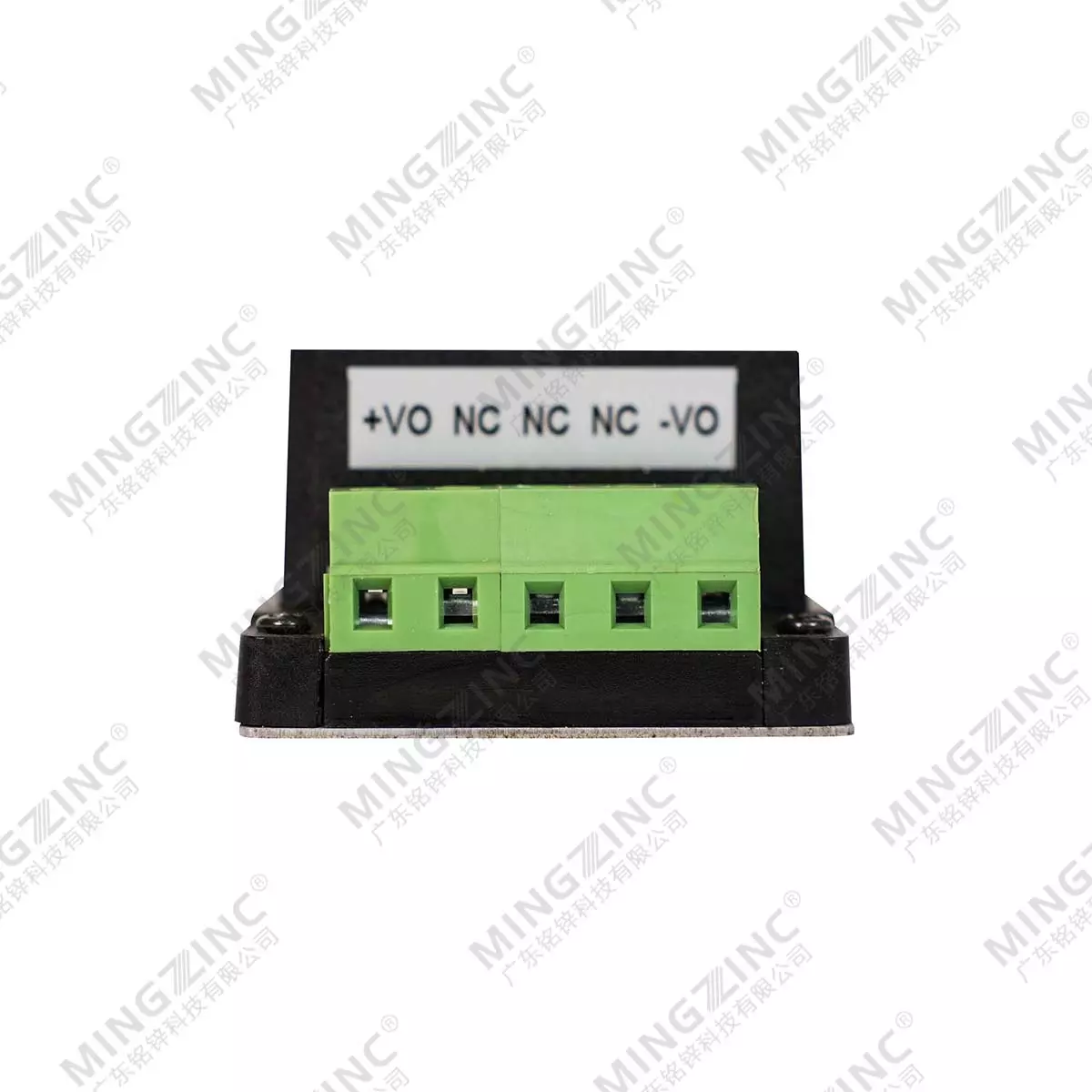

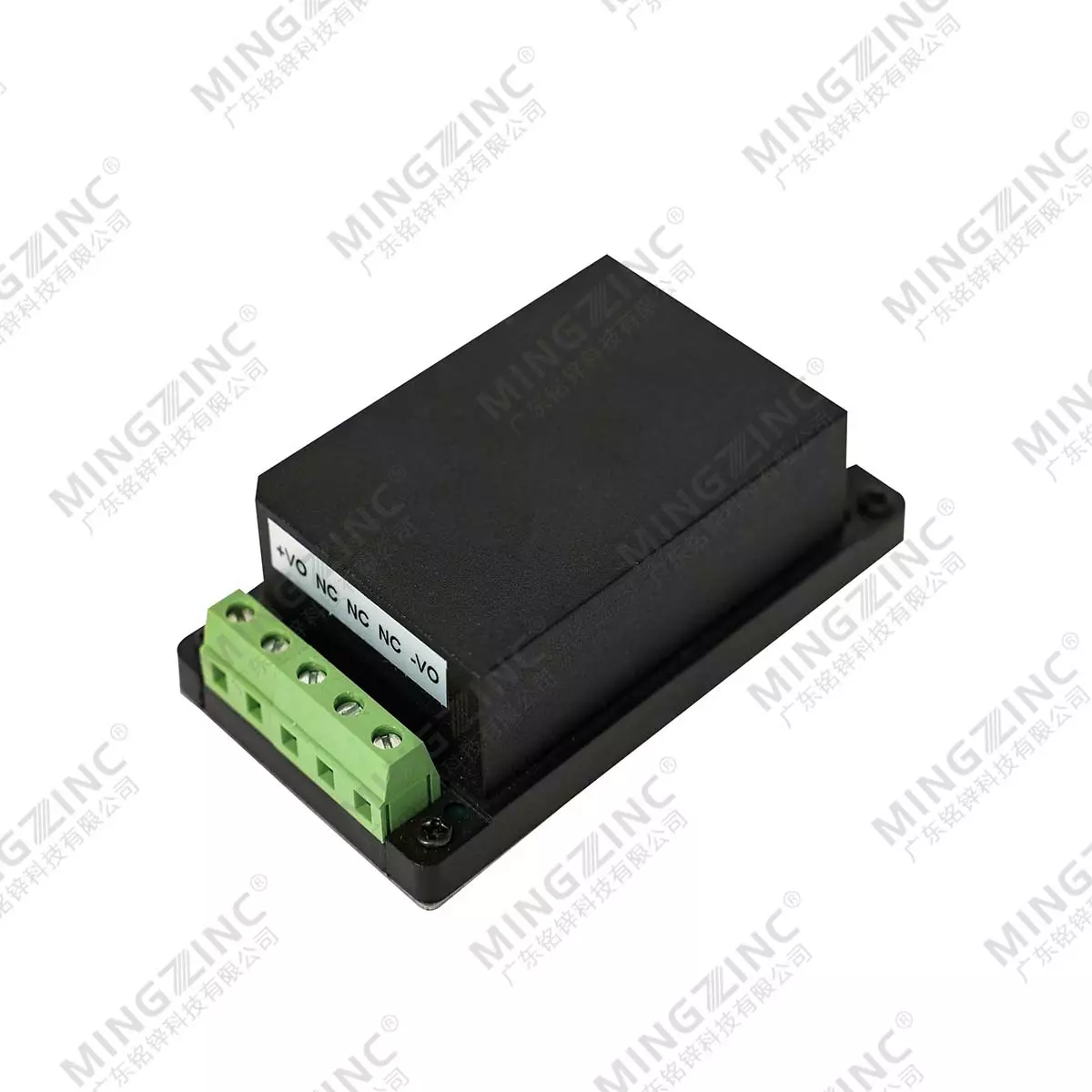

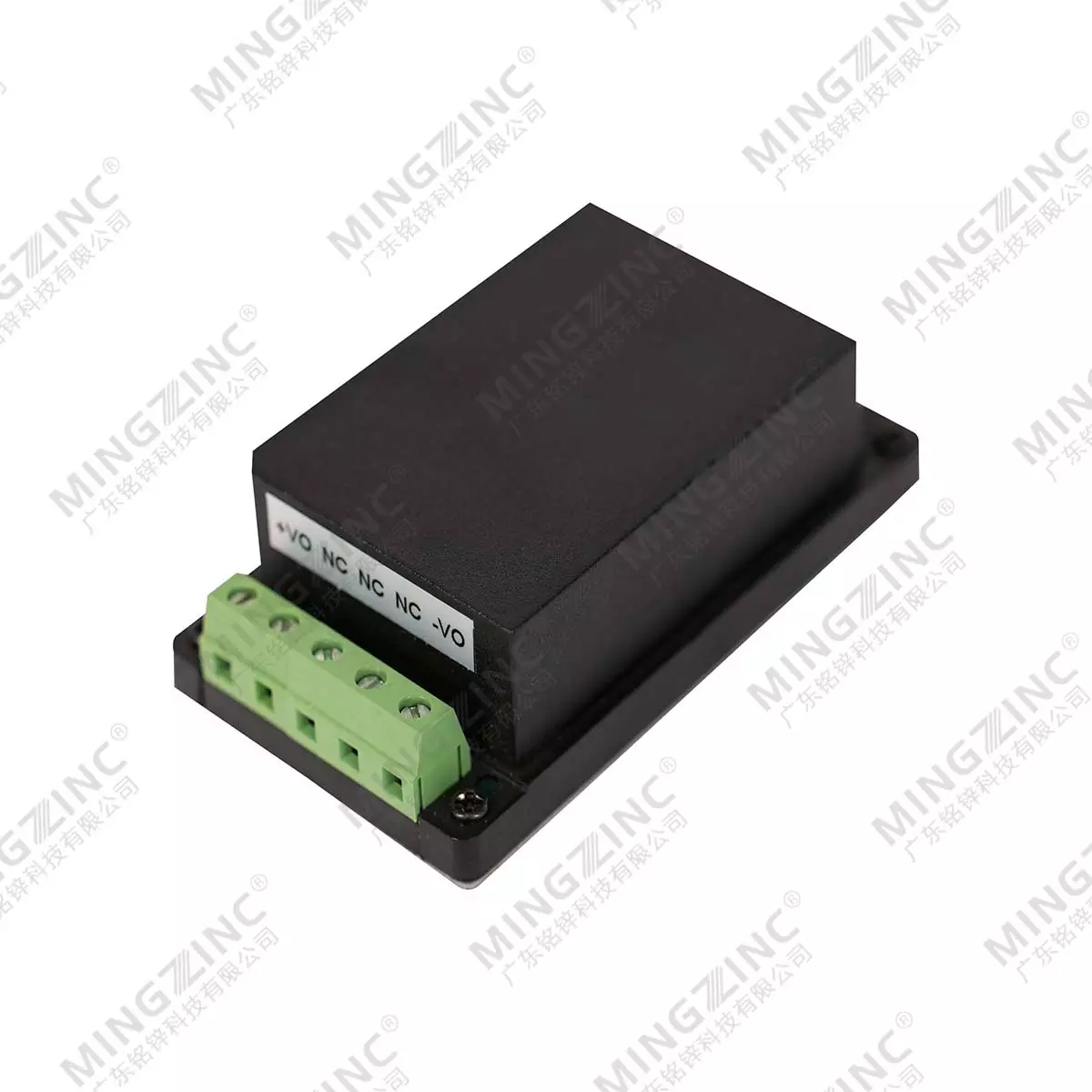

MDGD 10-40W DC-DC Isolation Converter Guide Rail Power Module
Products
Latest News
Video Description
I. MODELS LIST
Single Channels Ouput
|
Models |
Input Voltage(VDC)
|
Input Voltage Range(VDC) |
Output Voltage(VDC) |
Output Current(A) |
PK-PK（MV) Ripple and noise |
|
MDGD15-700S5 |
700VDC |
100-1200VDC |
5VDC |
3000MA |
50 |
|
MDGD15-700S12 |
700VDC |
100-1200VDC |
12VDC |
1250MA |
100 |
|
MDGD15-700S24 |
700VDC |
100-1200VDC |
12VDC |
630MA |
100 |
|
MDGD20-900S05 |
900VDC |
300-1500VDC |
5VDC |
4000MA |
50 |
|
MDGD20-900S12 |
900VDC |
300-1500VDC |
12VDC |
1660MA |
100 |
|
MDGD20-900S24 |
900VDC |
300-1500VDC |
24VDC |
833MA |
200 |
|
MDGD30-24S24 |
24VDC |
18-36VDC |
24VDC |
1.25A |
200 |
|
MDGD30-110S24 |
110VDC |
66-154VDC |
24VDC |
1.25A |
200 |
II. FEATURES
|
1 |
100% full-load burn-in test |
|
2 |
Input and output isolation |
|
3 |
Input under-voltage protection, input reverse polarity protection |
|
4 |
Output overcurrent protection, output short circuit protection |
|
5 |
Ultra-wide voltage input: 18-36/66-154/100-1200/300-1500VDC optional |
|
6 |
Self-recovery function for short circuit protection |
|
7 |
Low power consumption, high cost-effectiveness |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
24VDC |
18-36VDC |
|
110VDC |
66-154VDC |
|
700VDC |
100-1200VDC |
|
900VDC |
300-150VDC |
IV. OUTPUT CHARACTERISTIC
|
Power |
10-40W |
|
Output Current |
0-5A |
|
Output Voltage |
5-48VDC |
|
Output voltage Range |
±10% |
|
Voltage Set-point Accuracy |
±2% |
|
Line Regulation
|
±0.5% |
|
Load Regulation
|
±0.5% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Switching Frequency |
100-200KHz |
|
Isolation resistance |
200MΩ |
Isolation Voltage
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military |
-55 – +105℃ |
