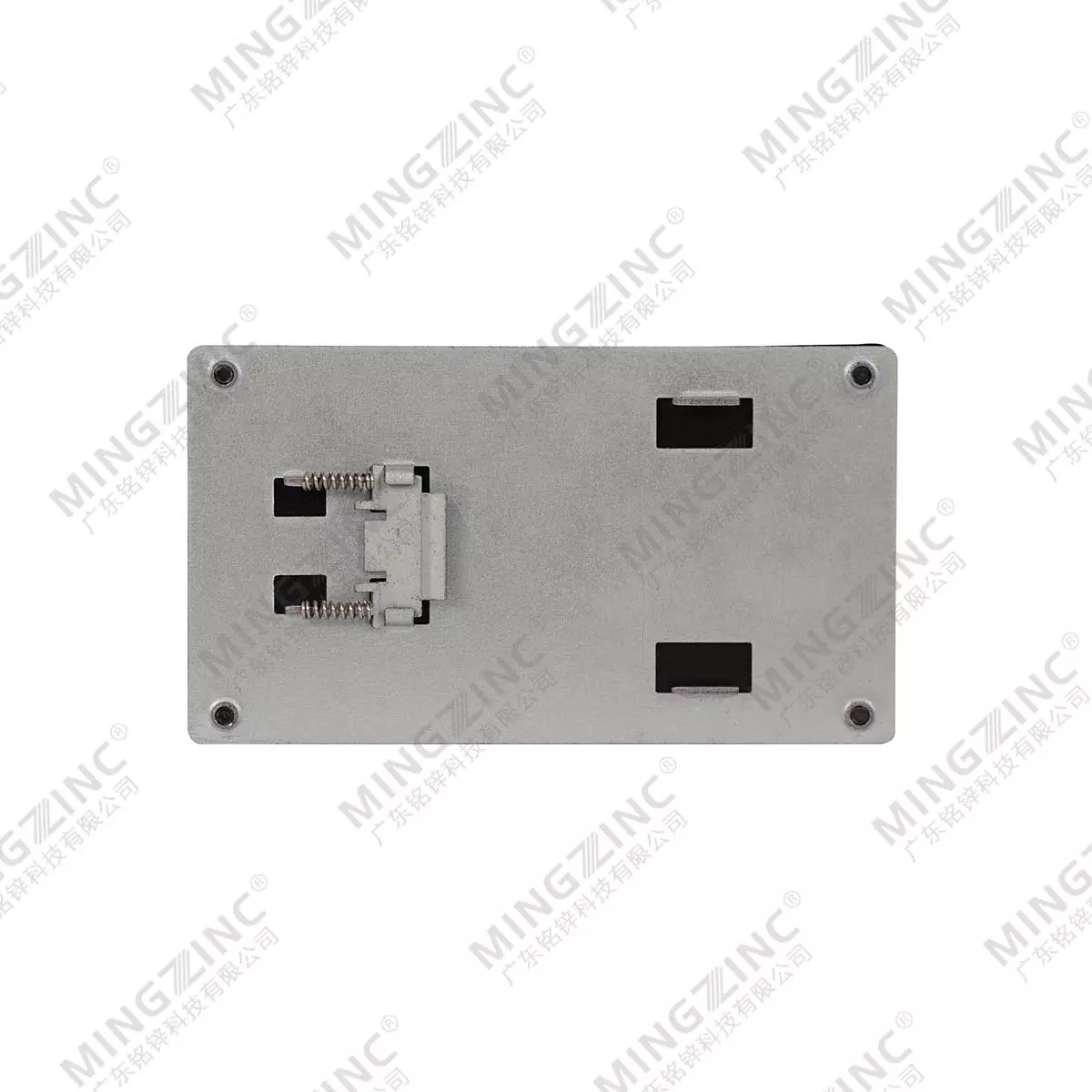

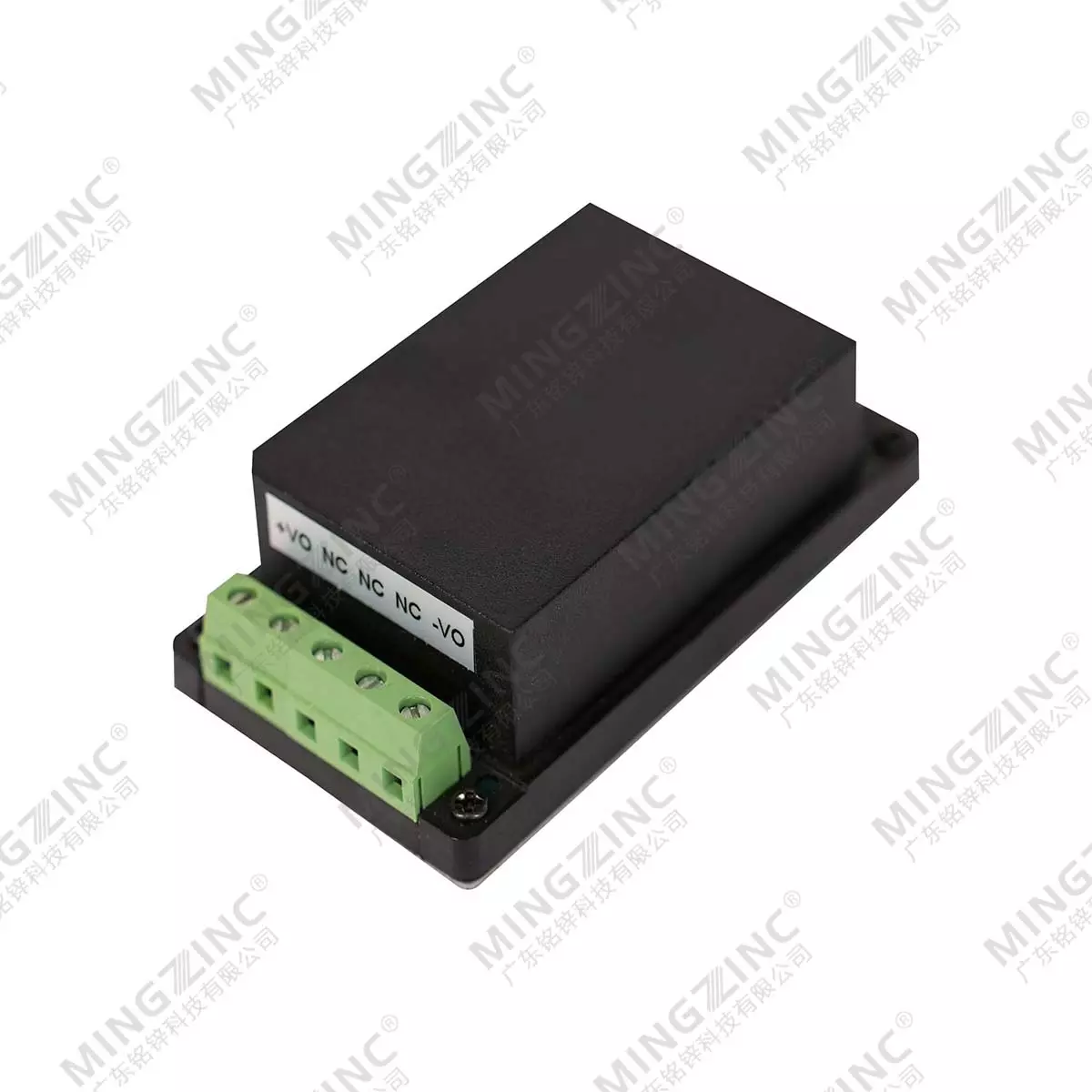

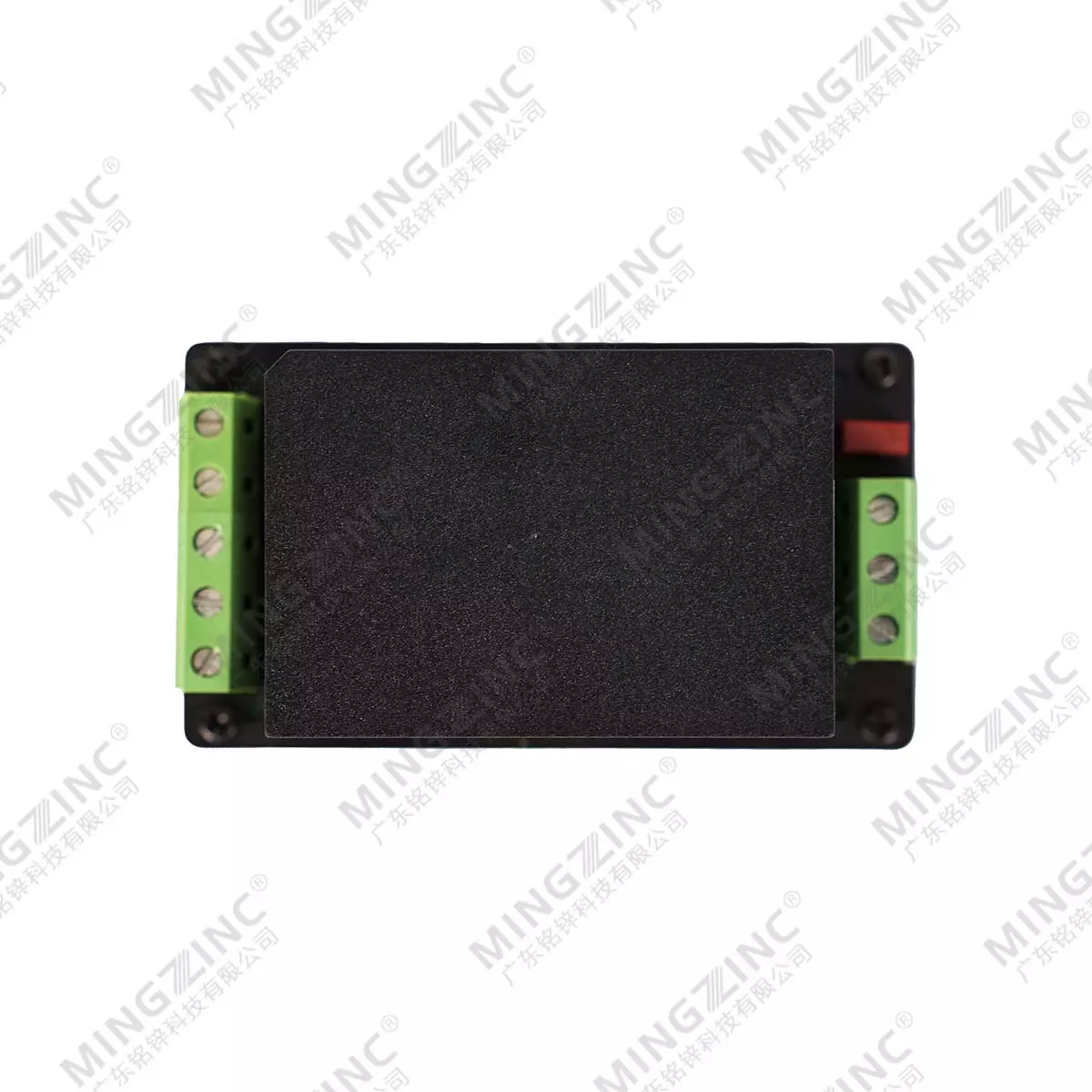

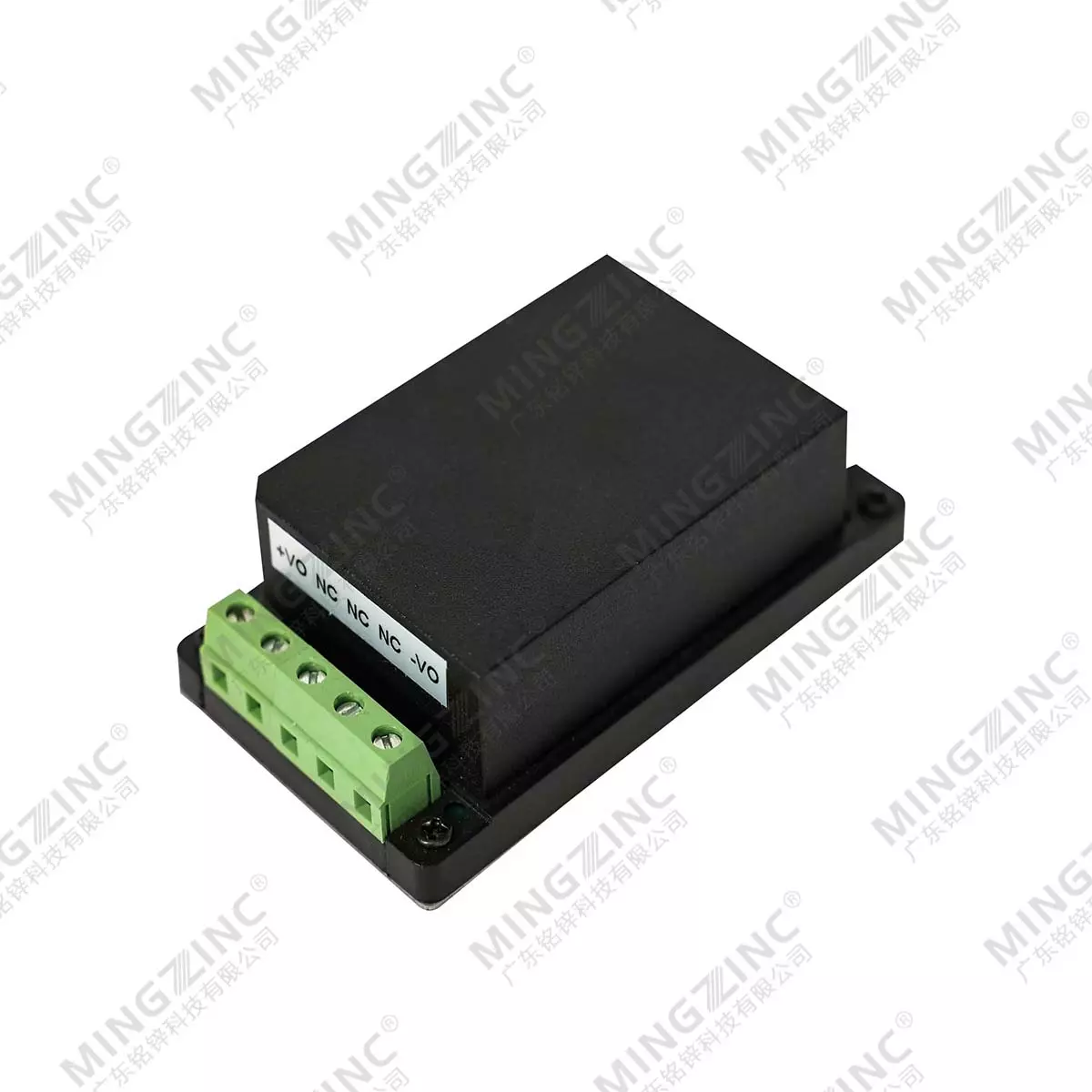

MDGA 10-40W AC-DC Isolation Converter Guide Rail Power Module
Products
Latest News
Video Description
I. MODELS LIST
Single Channels Ouput
|
Models |
Input Voltage（VAC）
|
Input Voltage Range(VAC) |
Output Voltage(VAC) |
Output Current(A) |
PK-PK（MV) Ripple and noise |
|
MDGA15-220S12 |
220VAC |
85-265VAC 165-265VAC 100-460VAC （For optional） |
12VDC |
1.25A |
120 |
|
MDGA20-220S24 |
220VAC |
24VDC |
0.83A |
200 |
|
|
MDGA25-220S48 |
220VAC |
48VDC |
0.52A |
300 |
|
|
MDGA40-220S15 |
220VAC |
15VDC |
2.66A |
120 |
II. FEATURES
|
1 |
100% full-load burn-in test |
|
2 |
Input and output isolation |
|
3 |
Temperature protection function |
|
4 |
Long lifespan and high reliability |
|
5 |
Ultra-wide voltage input: 85-265V/165-265V/100-460VAC optional |
|
6 |
Self-recovery function of short circuit protection |
|
7 |
Low power consumption, high cost-effectiveness |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VAC) |
Voltage Range(VAC) |
|
220VAC |
85-265VAC |
|
220VAC |
165-265VAC |
|
220VAC |
100-460VAC |
IV. OUTPUT CHARACTERISTIC
|
Power |
10-40W |
|
Output Current |
0-5A |
|
Output Voltage |
5-48VDC |
|
Output voltage Range |
±10% |
|
Voltage Set-point Accuracy |
±2% |
|
Line Regulation
|
±0.5% |
|
Load Regulation
|
±0.5% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Switching Frequency |
100-200KHz |
|
Isolation resistance |
200MΩ |
Isolation Voltage
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military |
-55 – +105℃ |

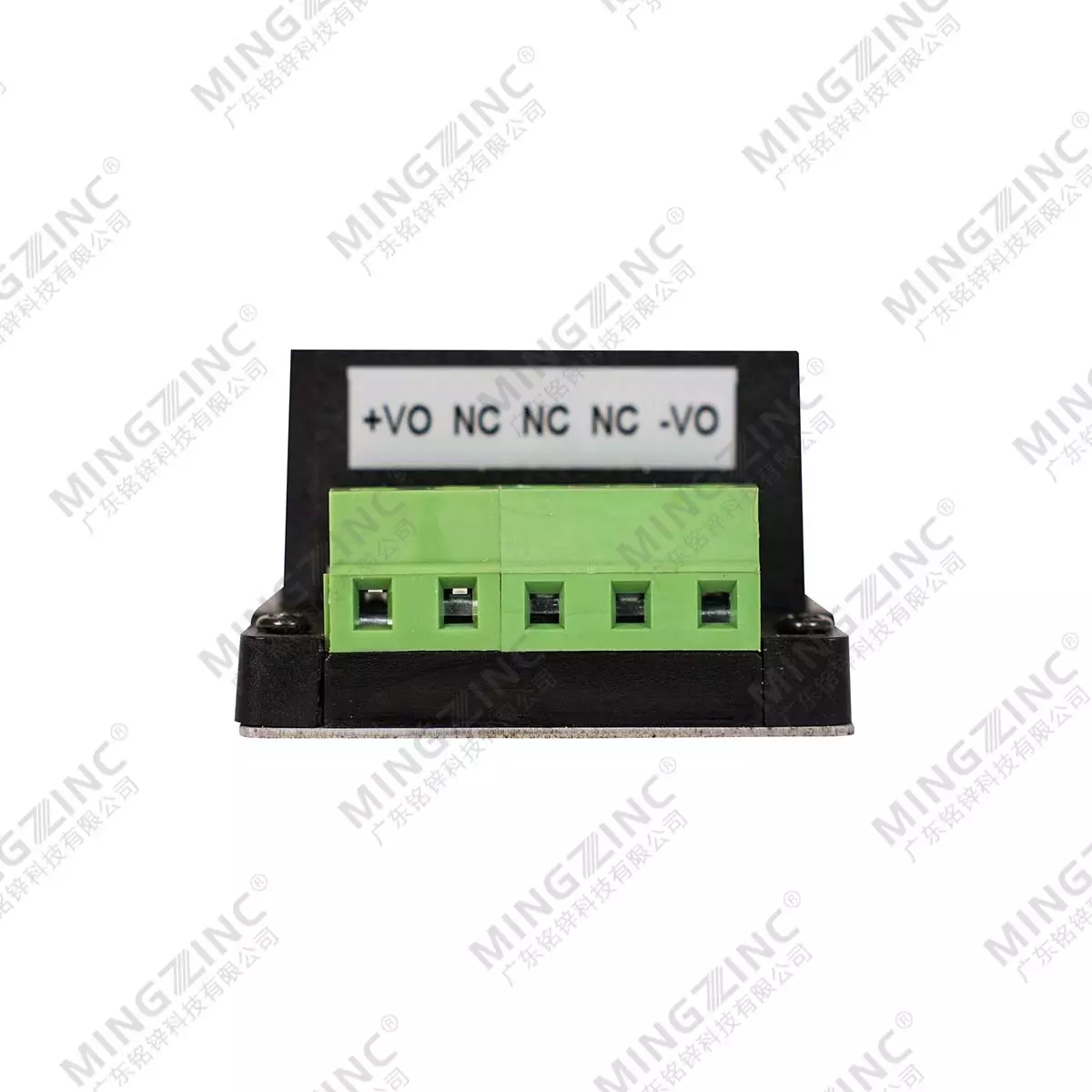

MECHANICAL DRAWING AND PIN DEFINITION
VI. MECHANICAL DRAWING AND PIN DEFINITION
