TDB15-50W Series DC-DC Isolated converter module
Products
Video Description
I.MODELS LIST
Single Channels Output
|
Models |
Input Voltage Range |
Input Voltage Rating |
Output Voltage |
Output Current |
Output Power |
Efficiency (Typ) |
|
TDB15-110S05 |
70-140VDC |
110VDC |
05VDC |
3A |
15W |
70% |
|
TDB20-110S12 |
70-140VDC |
110VDC |
12VDC |
1.66A |
20W |
75% |
|
TDB30-110S24 |
70-140VDC |
110VDC |
24VDC |
1.25A |
30W |
78% |
|
TDB15-300S05 |
200-400VDC |
300VDC |
05VDC |
3A |
15W |
70% |
|
TDB15-300S12 |
200-400VDC |
300VDC |
12VDC |
1.25A |
15W |
75% |
|
TDB30-300S15 |
200-400VDC |
300VDC |
15VDC |
2A |
30W |
78% |
|
TDB30-300S24 |
200-400VDC |
300VDC |
24VDC |
1.25A |
30W |
70% |
|
TDB15-600S05 |
400-800VDC |
600VDC |
05VDC |
3A |
15W |
75% |
|
TDB20-600S12 |
400-800VDC |
600VDC |
12VDC |
1.66A |
20W |
78% |
|
TDB25-600S24 |
400-800VDC |
600VDC |
24VDC |
1.04A |
25W |
70% |
|

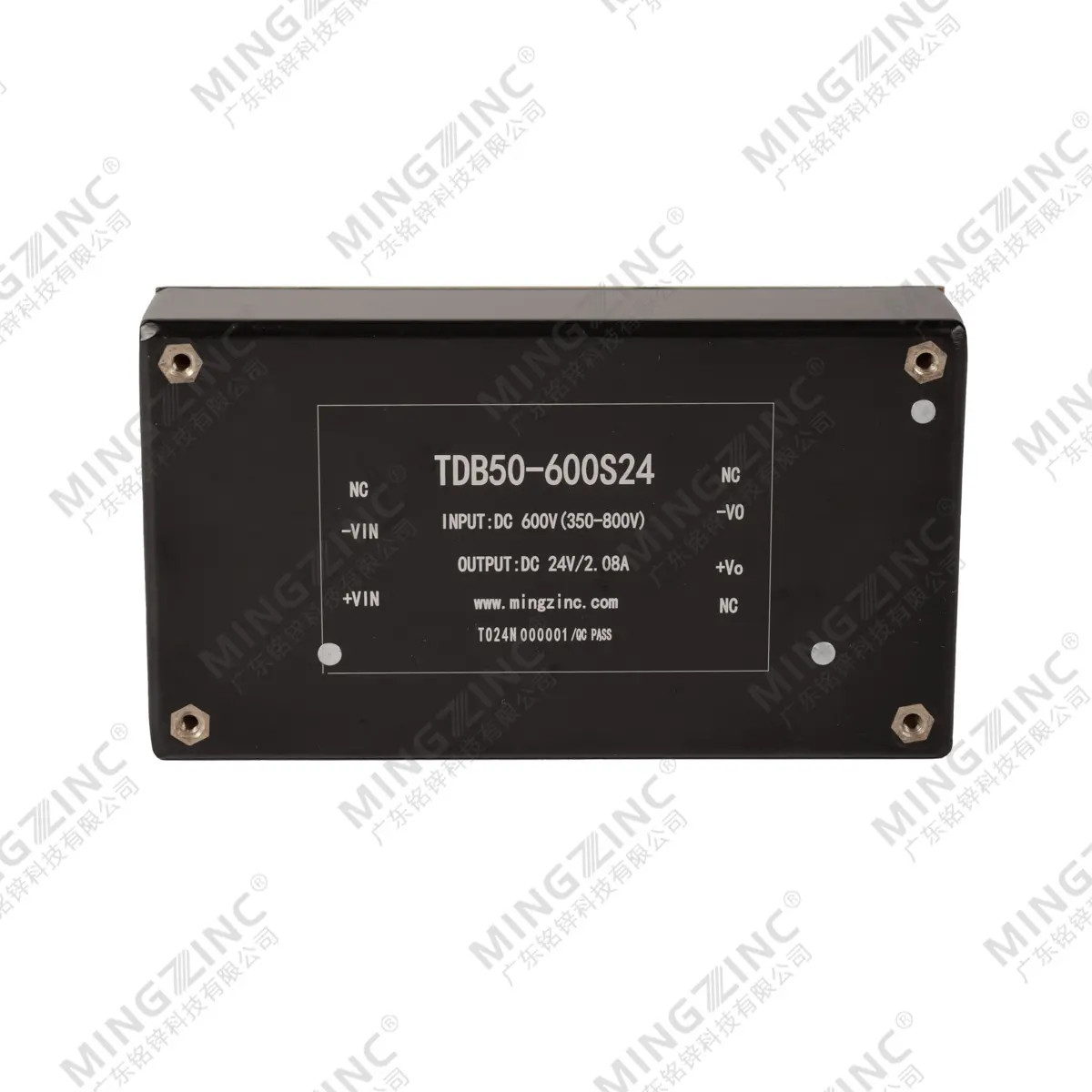

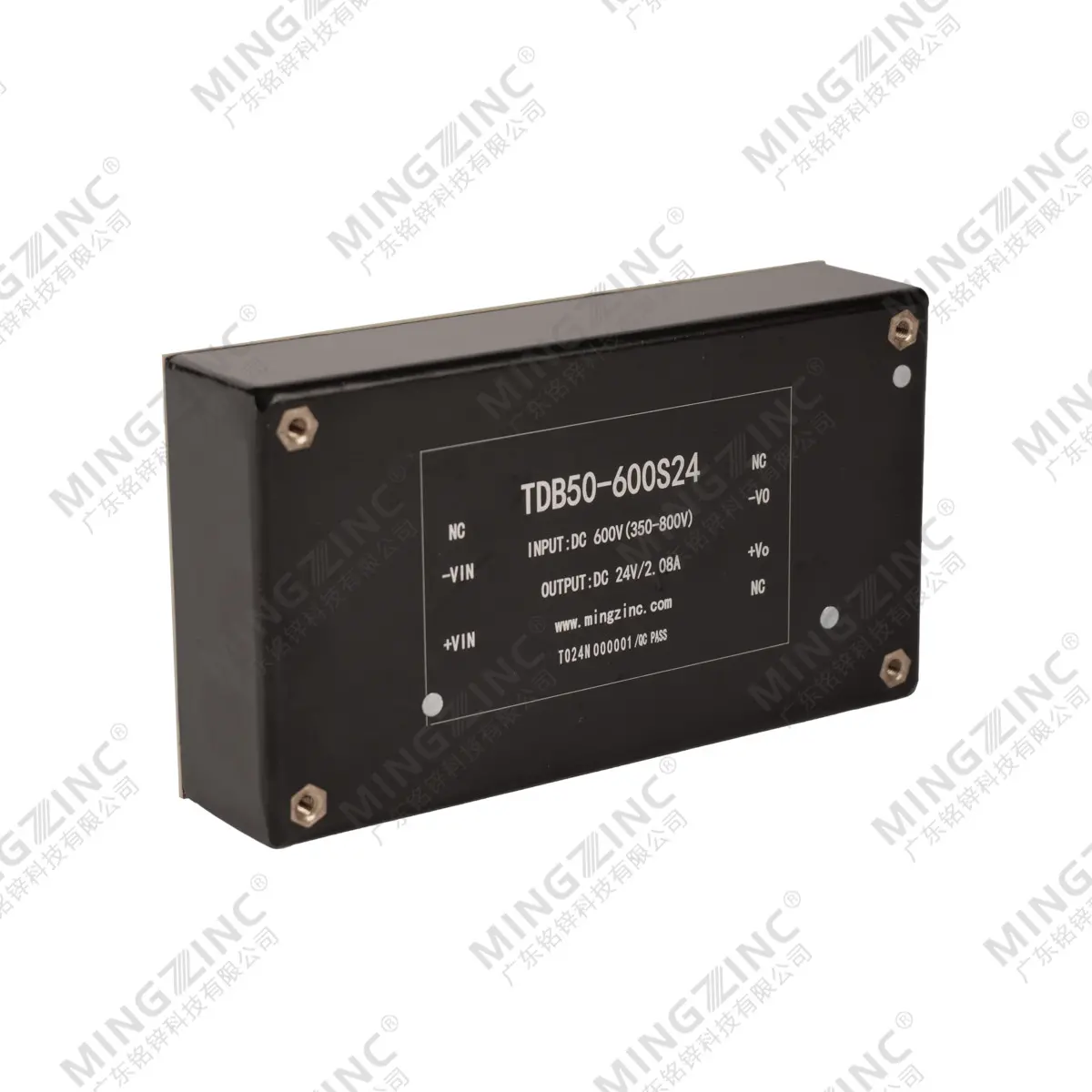

TDB50-600S24 |
400-800VDC |
600VDC |
24VDC |
2.08A |
50W |
70% |
|
TDB20-800S05 |
100-1000VDC |
800VDC |
05VDC |
4A |
20W |
75% |
Only typical models listed. If you need other models,please conform the power ,input voltage and output voltage, then feel free to call us.
II. FEATURES
|
1 |
Wide range of input voltage |
|
2 |
Design for high reliability,long lifetime |
|
3 |
Under-&over-voltage protection for output |
|
4 |
Iag 92% Full load efficiency up to 92% |
|
5 |
Fast dynamic response |
|
6 |
26W/in³ UP to 26W/in³ power density |
|
7 |
High voltage input , high output power |
|
8 |
Wide range of power ,easy to upgrade |
INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
110 VDC |
70-140VDC |
|
300 VDC |
200-400VDC |
|
600VDC |
400-800VDC |
|
800VDC |
100-1000VDC |
IV. OUTPUT CHARACTERISTIC
|
Power |
15-50W |
|
Output Current |
0-4A |
|
Output Voltage |
5-24VDC |
|
Voltage Set-point Accuracy |
±0.2% |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.4% |
|
rate of change of temperature |
±0.01%/℃ |
|
Output Current Limting |
120%(Typ) |
|
response time |
400μs |
GENERAL CHARACTERISTIC
|
Switching Frequency |
160-200KHz |
|
Isolation Resitstance |
200MΩ |
|
MTBF |
>500000 h |
lsolation Voltage
|
Input-Output |
>2000VDC |
|
Input-Case |
>2000VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military l |
-55 – +105℃ |

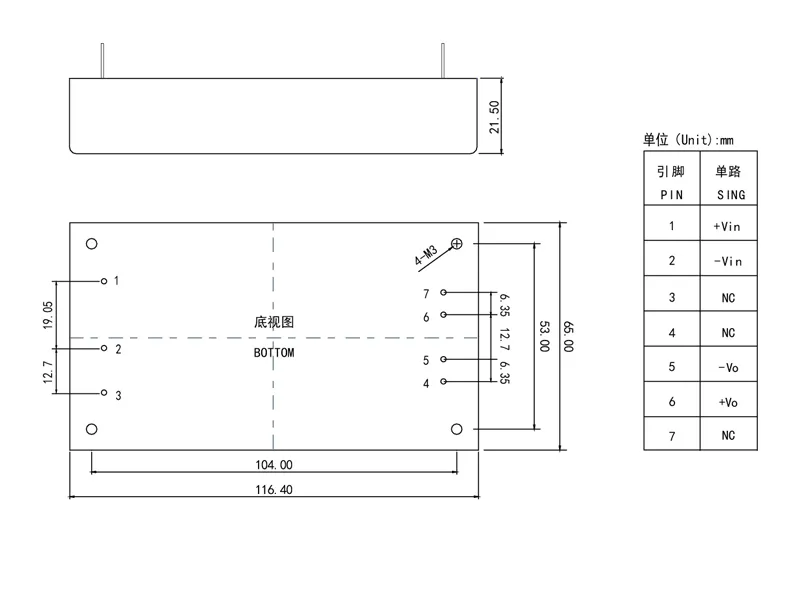

MECHANICAL DRAWING AND PIN DEFINITION
