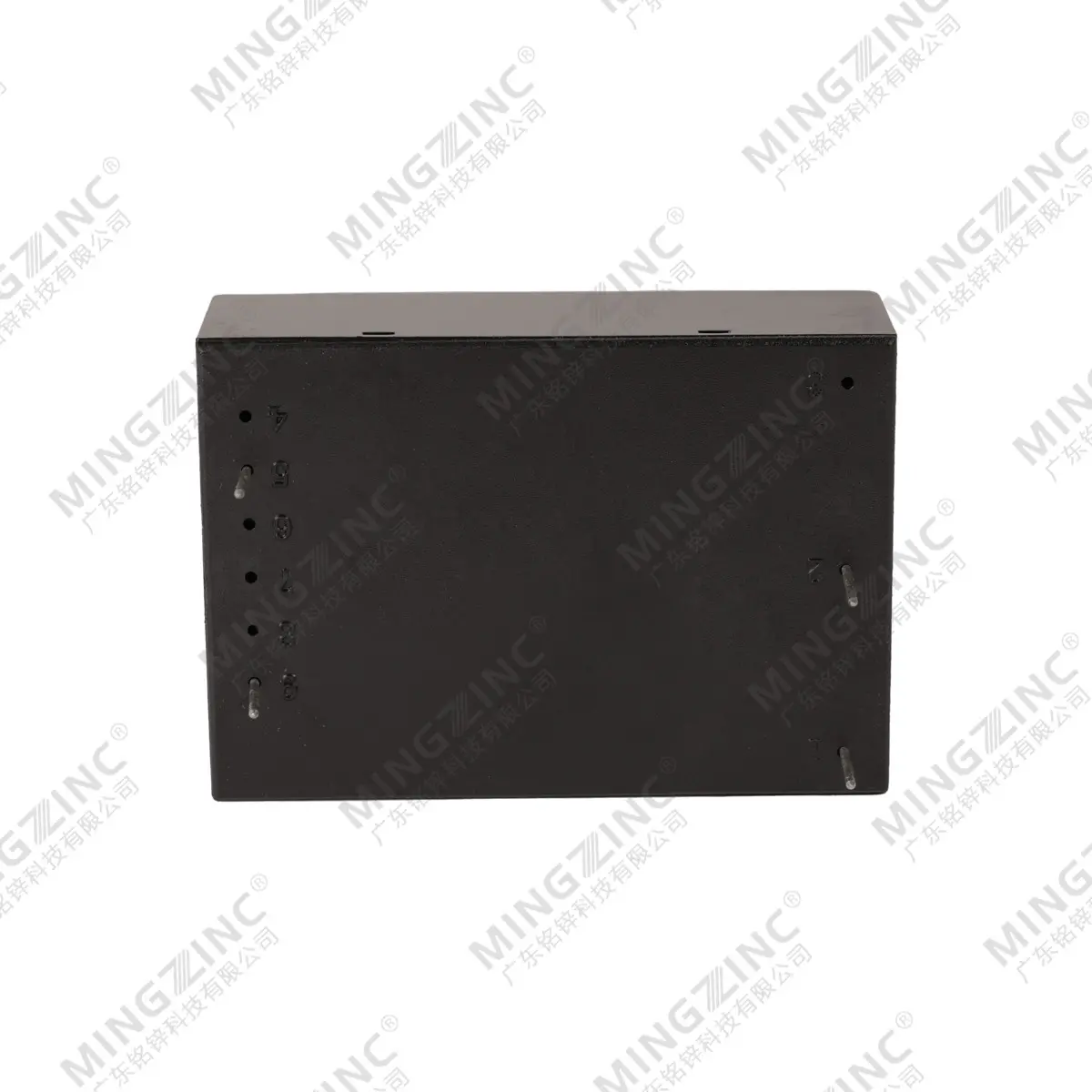

TDB5-25W Series DC-DC Isolated converter module
Products
Video Description
I.MODELS LIST
Single Channels Output
|
Model |
Input Voltage Range |
Input Voltage Rating |
Output Voltage |
Output Current |
Output Power |
Efficiency (Typ) |
|
TDB5-600S05 |
100-1000VDC |
600VDC |
05VDC |
1A |
5W |
70% |
|
TDB5-600S12 |
100-1000VDC |
600VDC |
12VDC |
0.42A |
5W |
75% |
|
TDB5-600S24 |
100-1000VDC |
600VDC |
24VDC |
0.23A |
5W |
78% |
|
TDB10-600S05 |
100-1000VDC |
600VDC |
05VDC |
2A |
10W |
70% |
|
TDB10-600S12 |
100-1000VDC |
600VDC |
12VDC |
0.9A |
10W |
75% |
|
TDB10-600S24 |
100-1000VDC |
600VDC |
24VDC |
0.45A |
10W |
78% |
|
TDB15-600S05 |
100-1000VDC |
600VDC |
05VDC |
3A |
15W |
70% |
|
TDB15-600S12 |
100-1000VDC |
600VDC |
12VDC |
1.25A |
15W |
75% |
|
TDB15-600S24 |
100-1000VDC |
600VDC |
24VDC |
0.625A |
15W |
78% |
|
TDB20-600S05 |
100-1000VDC |
600VDC |
05VDC |
4A |
20W |
70% |
|
TDB20-600S12 |
100-1000VDC |
600VDC |
12VDC |
1.66A |
20W |
75% |
|

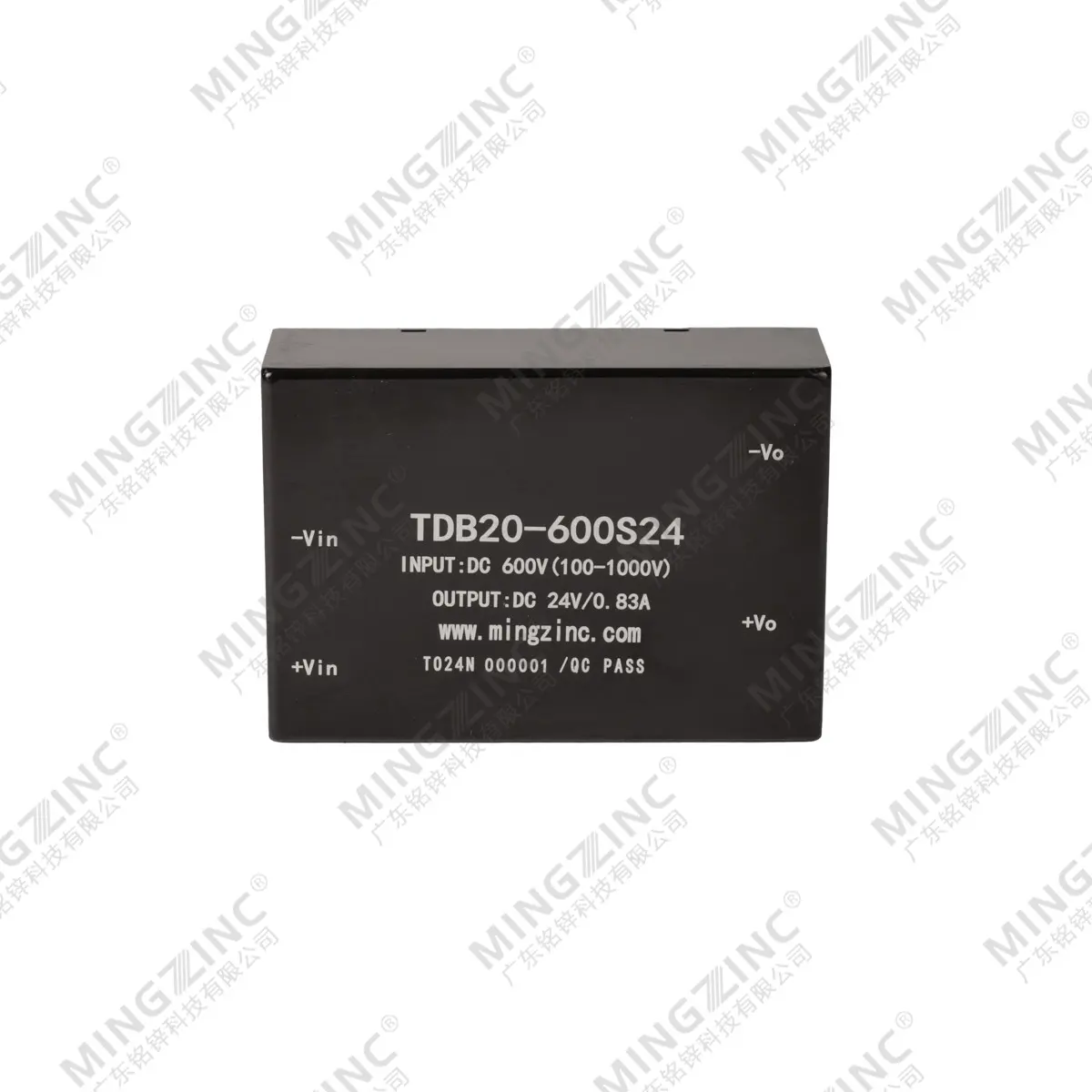

TDB20-600S24 |
100-1000VDC |
600VDC |
24VDC |
0.83A |
20W |
78% |
|
TDB25-600S05 |
100-1000VDC |
600VDC |
05VDC |
5.0A |
25W |
70% |
|
TDB25-600S12 |
100-1000VDC |
600VDC |
12VDC |
2.0A |
25W |
75% |
|
TDB25-600S24 |
100-1000VDC |
600VDC |
24VDC |
1.0A |
25W |
78% |
Only the typical models are listed. If you need another models , please inform the power , input and output voltage, then feel free to call us.
II. FEATURES
|
1 |
100-1000VDC Wide voltage input range 100-1000VDC |
|
2 |
High reliability, long life design |
|
3 |
high efficiency |
|
4 |
Industrial-grade technical product design |
|
5 |
Output short-circuit, over-temperature protection |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
600VDC |
100-1000VDC |
IV. OUTPUT CHARACTERISTIC
|
Power |
5-25W |
|
Output Current |
0-5A |
|
Output Voltage |
5-24VDC |
|
Voltage Accuracy |
±1% |
|
Source Effect |
±0.5% (typ) |
|
Load Adjustment Rate (10%~100%) |
±2% |
|
Minimum Load |
0% |
|
Output Ripple + Noise (peak-to-peak) |
100mv(typ)(20MHz Bandwidth) |
|
Output Overcurrent Protection |
≥1.1x |
|
Note: Ripple and noise are tested with the parallel line test method. |
|
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Switching Frequency |
65-100KHz |
|
lsolation Resitstance |
200MΩ |
|
MTBF |
>500000 h |
lsolation Voltage
|
Input-Output |
>2000VDC |
|
Input-Case |
>2000VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military l |
-55 – +105℃ |
MECHANICAL DRAWING AND PIN DEFINITION
