MDE 200-300W Series Isolated DC-DC Converters Modules
Products
Latest News
Video Description
I. MODELS LIST
Single Channels Output
|
Model |
Input Voltage (VDC) |
Input Voltage Range(VDC) |
Output Voltage(VDC) |
Output Current(A) |
Output Power(W) |
Ripple And Noise(mv) |
Efficiency (Typ) |
|
MDE240-24S12 |
24VDC |
18-36VDC |
12VDC |
20A |
240W |
120 |
88% |
|
MDE300-24S24 |
24VDC |
18-36VDC |
24VDC |
12.5A |
240W |
200 |
89% |
|
MDE250-48S12 |
48VDC |
36-72VDC |
12VDC |
20.8A |
250W |
120 |
88% |
|
MDE300-48S24 |
48VDC |
36-72VDC |
24VDC |
12.5A |
300W |
200 |
89% |
|
MDE240-110S12 |
110VDC |
66-154VDC |
12VDC |
20A |
240W |
120 |
88% |
|
MDE300-110S24 |
110VDC |
66-154VDC |
24VDC |
12.5A |
300W |
200 |
89% |
|
MDE300-110S48 |
110VDC |
66-154VDC |
48VDC |
6.25A |
300W |
300 |
89% |
Dual Channels Output
|
Model |
Input Voltage (VDC) |
Input Voltage Range(VDC) |
Output Voltage(VDC) |
Output Current(A) |
Output Power(W) |
Ripple And Noise(mv) |
Efficiency (Typ) |
|
MDE175-24D05&24 |
24VDC |
18-36VDC |
05&24VDC |
15A&4.16A |
175W |
100&200 |
84% |
|
MDE175-24D12&24 |
24VDC |
18-36VDC |
12&24VDC |
6.25A&4A |
175W |
120&200 |
84% |
Only the typical models are listed. If you need another models, please inform the power,Input and output voltage,then feel free to call us.
II. FEATURES
|
1 |
High and low voltage input if for option |
|
2 |
2times 4times input voltage |
|
3 |
Easy installation |
|
4 |
Design for high reliability ,long lifetime |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
12 VDC |
9-18 VDC |
|
24 VDC |
18-36 VDC |
|
48 VDC |
36-72 VDC |
|
110 VDC |
66-154 VDC |
|
(4 Times Input)18 VDC |
9-36 VDC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
200-300W |
|
Output Voltage |
5-48VDC |
|
Output Current |
3-30A |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Output over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
Switching Frequency |
100-200KHz |
|
lsolation Resistance |
200MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military |
-55 – +105℃ |
|

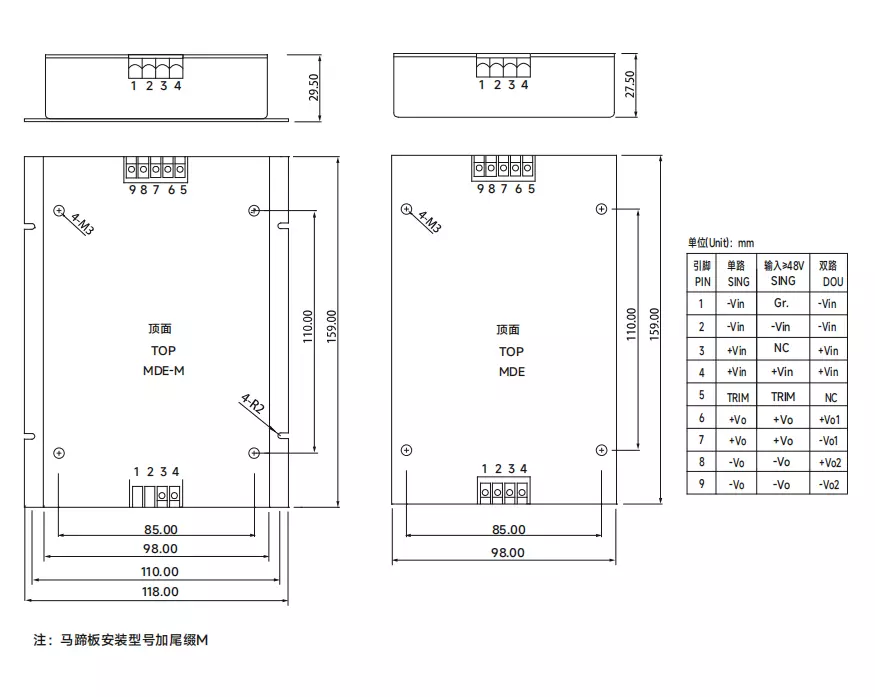

VI. MECHANICAL DRAWING AND PIN DEFINITION
