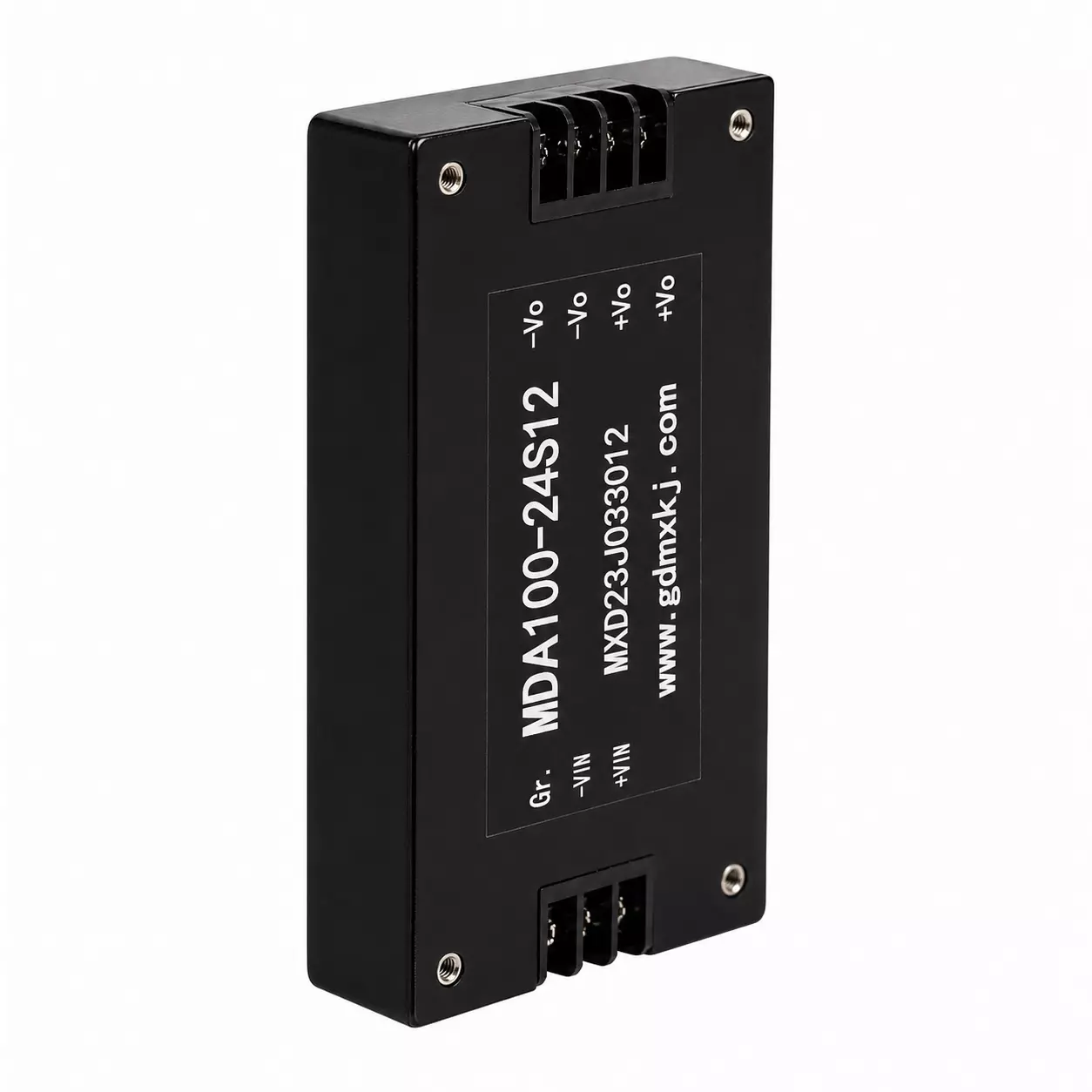

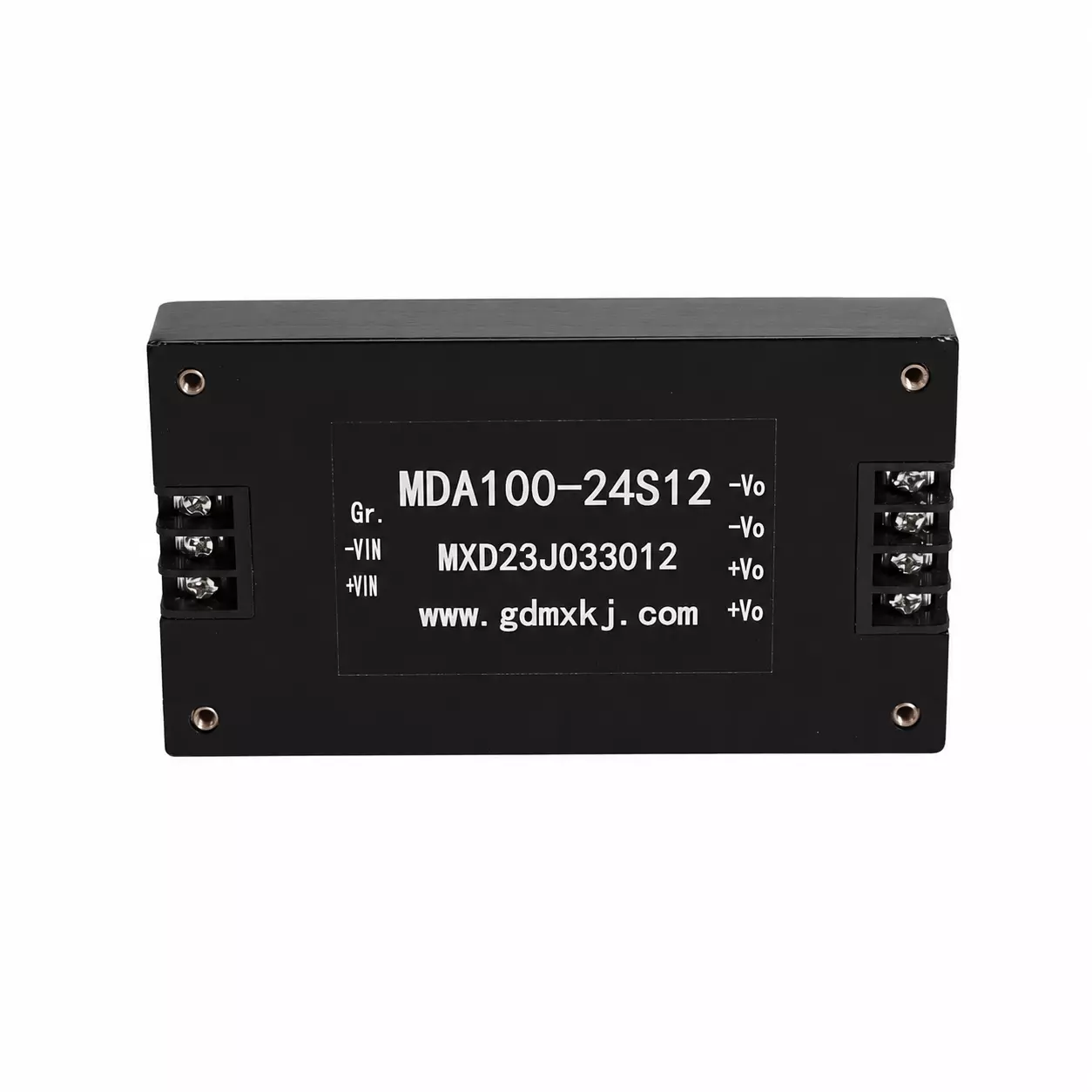

100W 18-36VDC to 12VDC Isolated DC-DC Converter for PLC Control Cabinets | MDA100-24S12 | MINGZINC
Products
Latest News
The MINGZINC MDA100-24S12 is a 100W isolated DC-DC converter designed to provide reliable 12VDC auxiliary power for PLC control cabinets, industrial automation equipment, I/O modules, relay systems, sensors and industrial communication devices.
Featuring a wide 18-36VDC input, regulated 12VDC output, galvanic isolation, EMI-resistant design, and comprehensive industrial protection, it ensures stable power delivery even in environments with voltage fluctuations, electrical noise, vibration and harsh operating conditions.
As a professional DC-DC converter manufacturer, MINGZINC provides reliable industrial power modules for equipment manufacturers, system integrators and power distributors worldwide. In addition to standard products, we support OEM & ODM power supply customization, helping customers develop custom power solutions for industrial automation, control systems and smart manufacturing projects.
Video Description
I. MODELS LIST
Single Channels Output
|
Model |
Input Voltage (VDC) |
Input Voltage Range(VDC) |
Output voltage(VDC) |
Output Current(A) |
Output Power(W) |
Ripple And Noise（mv） |
Efficiency (Typ) |
|
MDA100-24S12 |
24VDC |
18-36VDC |
12VDC |
8.33A |
100W |
120 |
84% |
II. FEATURES
|
1 |
Π type input filter |
|
2 |
High power density |
|
3 |
2times 4times voltage input |
|
4 |
Design for high reliability, long lifetime |
|
5 |
Easy installation, dual side pin out |
|
6 |
Attractive outline design |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
24 VDC |
18-36 VDC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
100 W |
|
Output Voltage |
12VDC |
| Output Current | 8.33A |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
Switching Frequency |
100-200KHz |
|
lsolation Resistance |
200MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military |
-55 – +105℃ |
|
VI. MECHANICAL DRAWING AND PIN DEFINITION
MINGZINC is a professional DC-DC converter manufacturer specializing in industrial power modules for industrial automation, PLC control systems, renewable energy, battery systems and communication equipment.
We work closely with power distributors, power supply distributors, OEM manufacturers and system integrators, providing reliable OEM power supply, ODM power supply and custom power supply solutions for industrial applications worldwide.
Whether you are looking for a DC-DC converter supplier, an industrial power solution partner or a long-term energy storage power solution provider, MINGZINC offers flexible engineering support, stable production capacity and fast customization services to help accelerate your projects.
