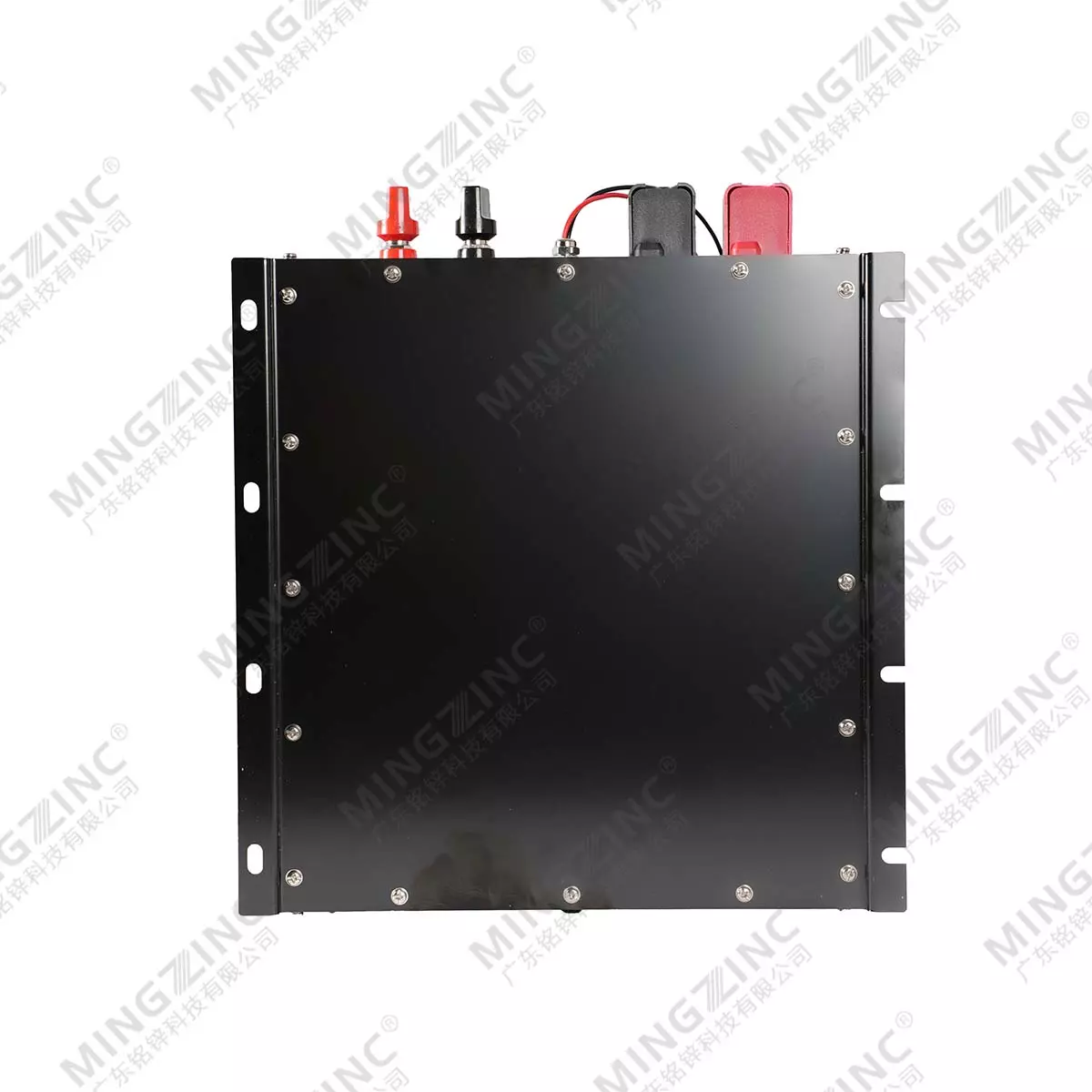

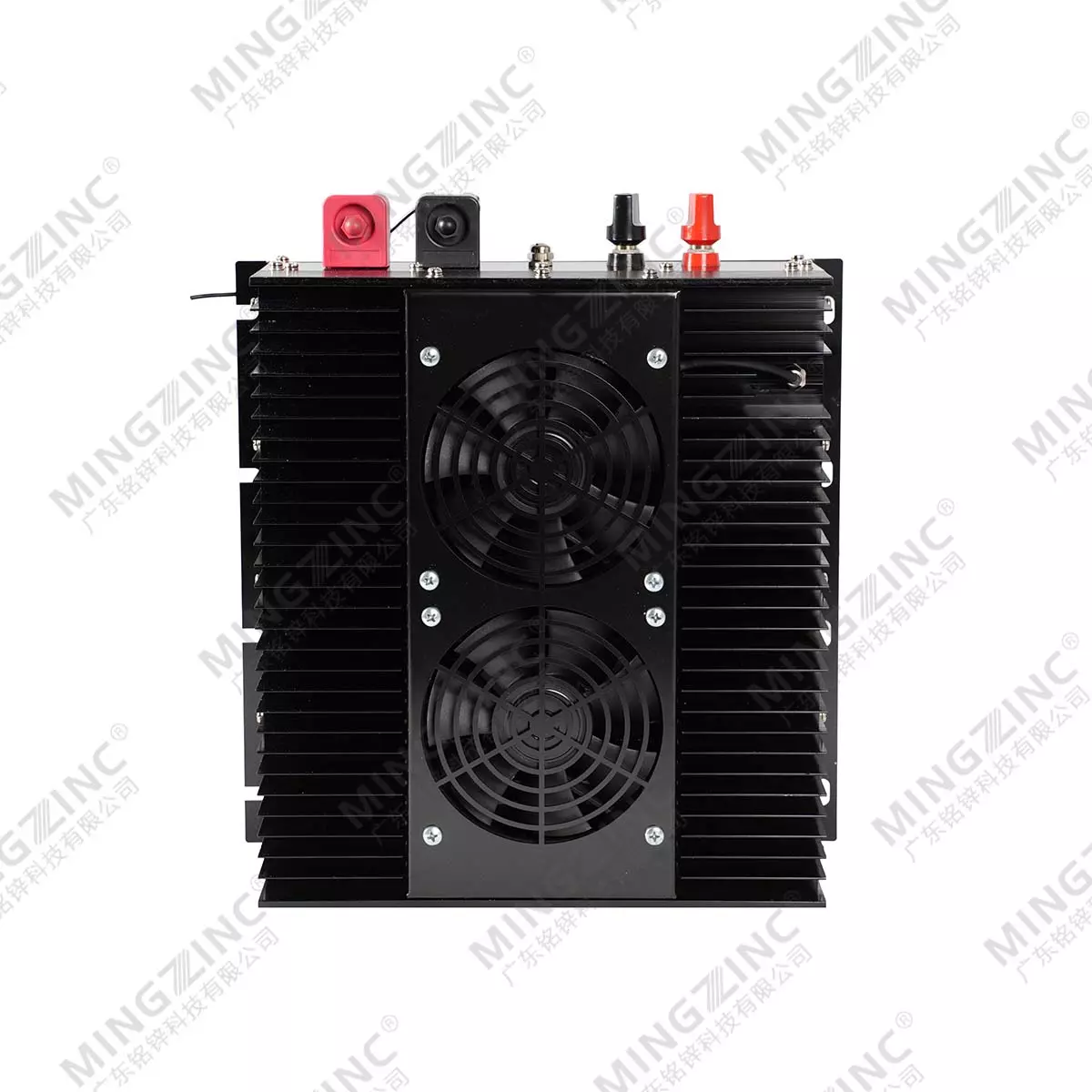

MAK 3000-4000W Isolated AC-DC Converters Modules
Products
Latest News
Video Description
I. MODELS LIST
Single Channels Output
|
Models |
Input Voltage (VAC) |
Input Voltage Range(VAC) |
Output Voltage(VDC) |
Output Current(A) |
Output Power(W) |
Ripple And Noise(mv) |
Efficiency (Typ) |
|
MAK2880-220WS24 |
220VAC |
90-264VAC |
24VDC |
120A |
2880W |
200 |
90% |
|
MAK3000-220WS24 |
220VAC | 90-264VAC |
24VDC |
125A |
3000W |
200 |
90% |
|
MAK4000-220WS48 |
220VAC | 90-264VAC |
48VDC |
83A |
4000W |
300 |
91% |
|
MAK4000-220WS72 |
220VAC | 90-264VAC |
72VDC |
55A |
4000W |
500 |
92% |
|
MAK4000-220WS110 |
220VAC |
90-264VAC |
110VDC |
36A |
4000W |
600 |
92% |
II. FEATURES
|
1 |
Broadband noise filter of input |
|
2 |
Surge suppress circuit of input |
|
3 |
Refer to UL 1950,IEC950 safety regulation |
|
4 |
Attractive outline design |
|
5 |
Good heat dissipation |
|
6 |
CAN communication |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VAC) |
Voltage Range(VAC) |
|
220 VAC |
90-264VAC(110VAC input, output power halved) |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
3000-4000W |
|
Output Voltage |
24-110VDC |
|
Output Current |
36-120A |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current Limiting |
0.5-1A greater than the rated output current. |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
lsolation Resistance |
50MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>2000VAC/1 min |
|
Input-Case |
＞1500VAC/1 min |
|
Output-Case |
＞500VDC/1 min |
Environmental Characteristics
|
Parameter |
Value |
|
Operating Temperature |
-40 – +50℃ |
|
Storage Temperature |
-40 – +95℃ |
VI. MECHANICAL DRAWING AND PIN DEFINITION
