I. MODELS LIST
Single Channels Output
|
Models |
Input Voltage (VAC) |
Input Voltage Range(VAC) |
Output Voltage(VDC) |
Output Current(A) |
Output Power(W) |
Ripple And Noise(mv) |
Efficiency (Typ) |
|
MAH-H 600-220S12 |
220VAC |
176-264VAC |
12VDC |
50A |
600W | 150 |
91% |
|
MAH-H 1000-220S24 |
220VAC | 176-264VAC | 24VDC |
41.6A |
1000W | 300 |
92% |
|
MAH-H 1000-220S48 |
220VAC | 176-264VAC |
48VDC |
20.8A |
1000W | 300 |
92% |
|
MAH-H 1000-220S110 |
220VAC | 176-264VAC |
110VDC |
9A |
1000W | 600 |
92% |
II. FEATURES
|
1 |
Broadband noise filter of input |
|
2 |
Surge suppress circuit of input |
|
3 |
Refer to UL 1950,IEC950 safety regulation |
|
4 |
High power factor |
|
5 |
Aviation connector outlet mode |
|
6 |
Good heat dissipation |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VAC) |
Voltage Range(VAC) |
|
220 VAC |
176-264 VAC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
600-1000W |
|
Output Voltage |
12-110VDC |
|
Output Current |
6-50A |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
Switching Frequency |
100-200KHz |
|
lsolation Resistance |
200MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>1500VAC/1 min leakage current ＜5mA |
|
Input-Case |
＞1500VAC/1 min leakage current ＜5mA |
|
Output-Case |
＞500VDC/1 min |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military l |
-55 – +105℃ |
|

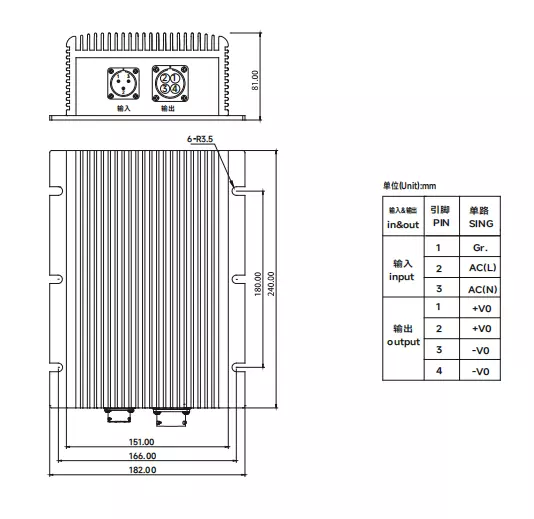

VI. MECHANICAL DRAWING AND PIN DEFINITION
