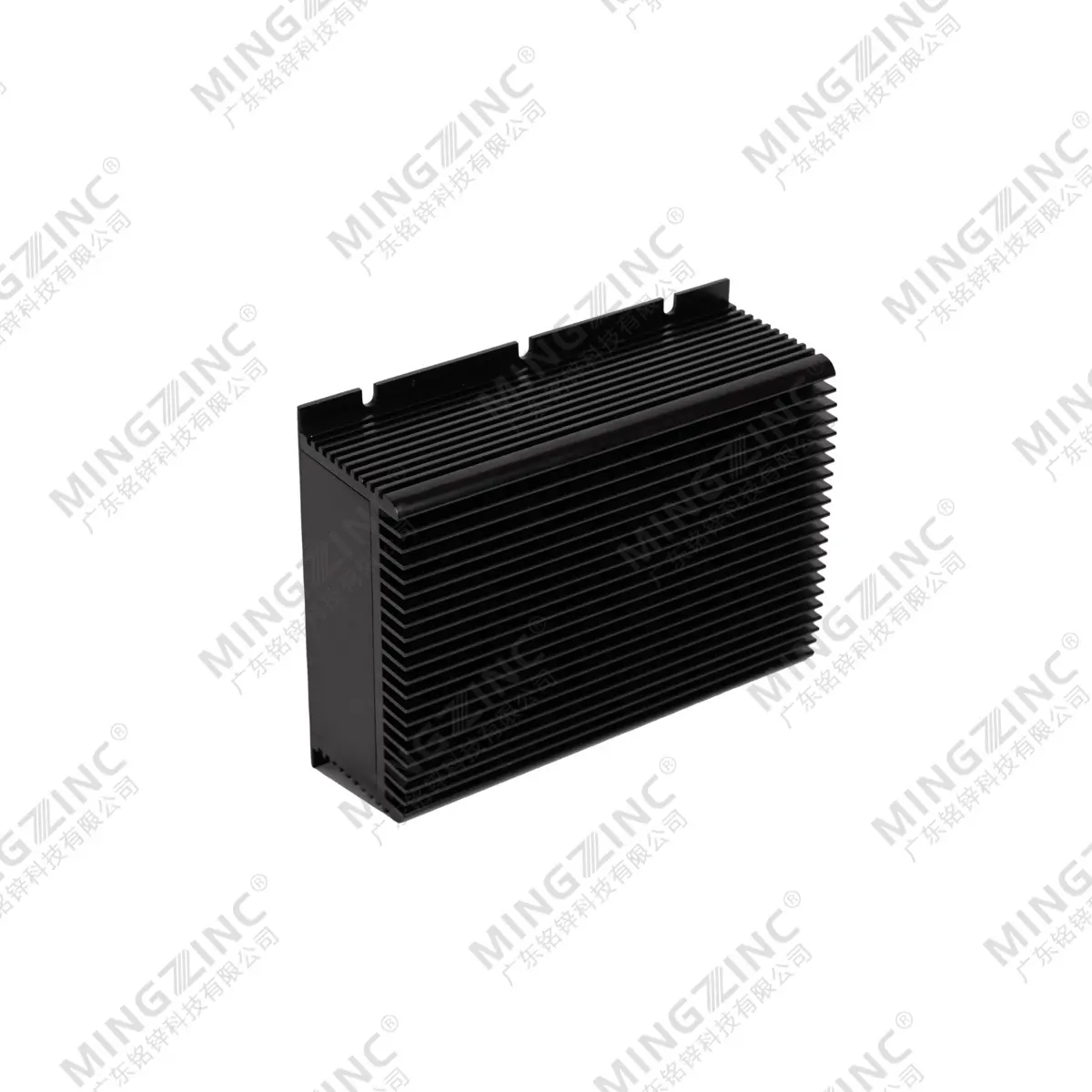

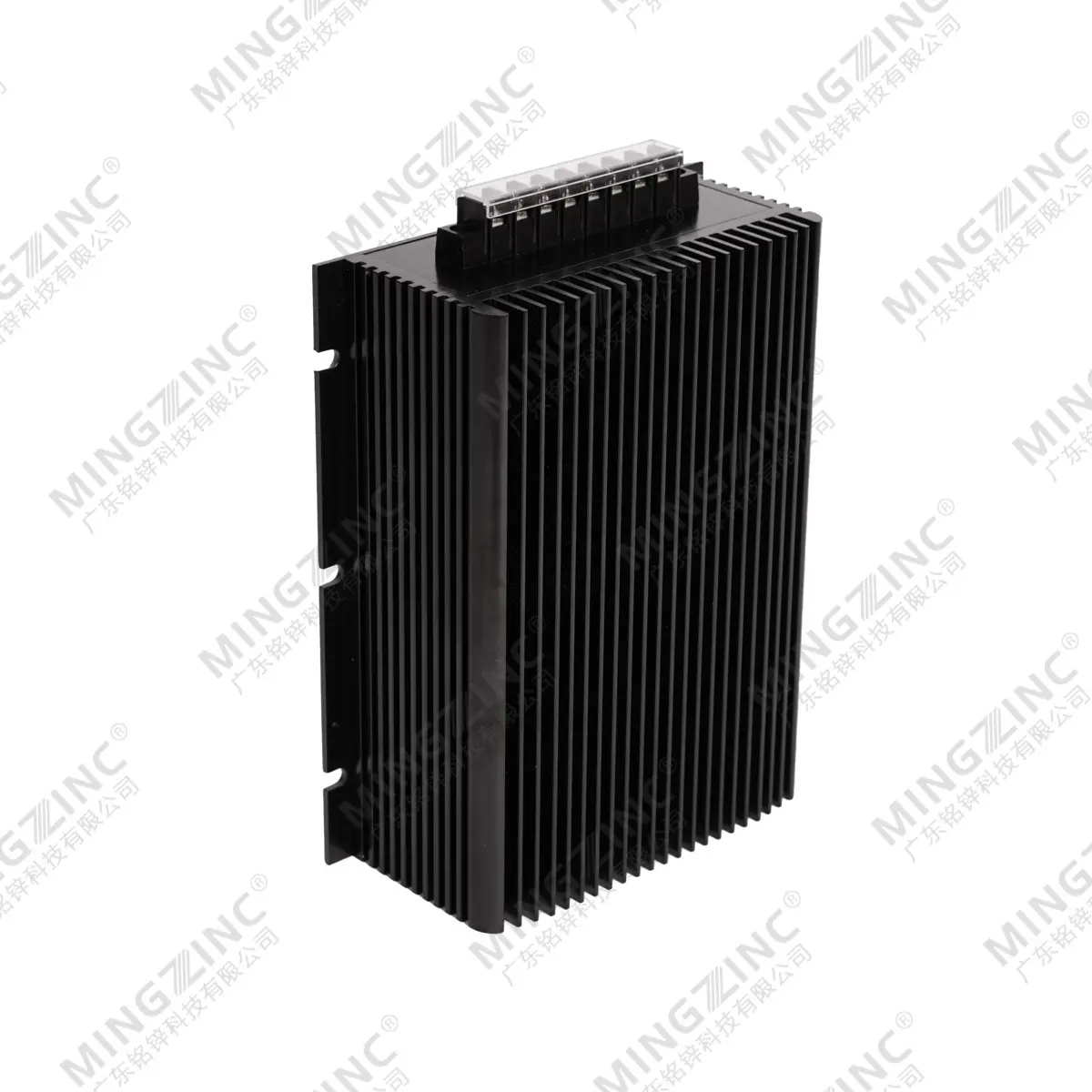

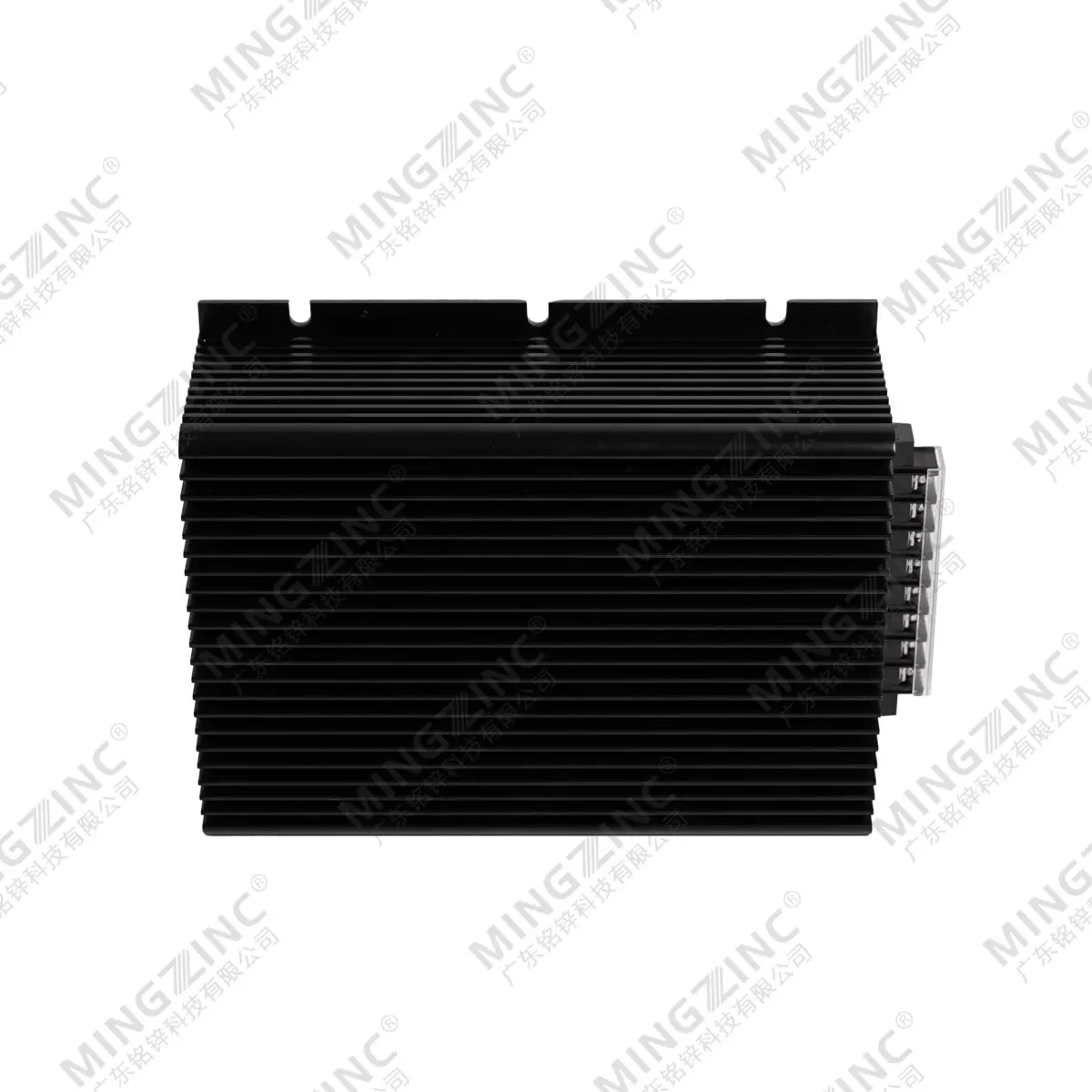

MDH400-500W Series Isolated DC-DC Converters Modules
Products
Video Description
I. MODELS LIST
Single Channels Output
|
Model |
Input voltage Range |
Input voltage Rating |
Output voltage |
Output current |
Output Power |
Efficiency (Typ) |
|
MDH500-24S12 |
18-36VDC |
24VDC |
12VDC |
41.6A |
500W |
88% |
|
MDH500-24S24 |
18-36VDC |
24VDC |
24VDC |
20.8A |
500W |
89% |
|

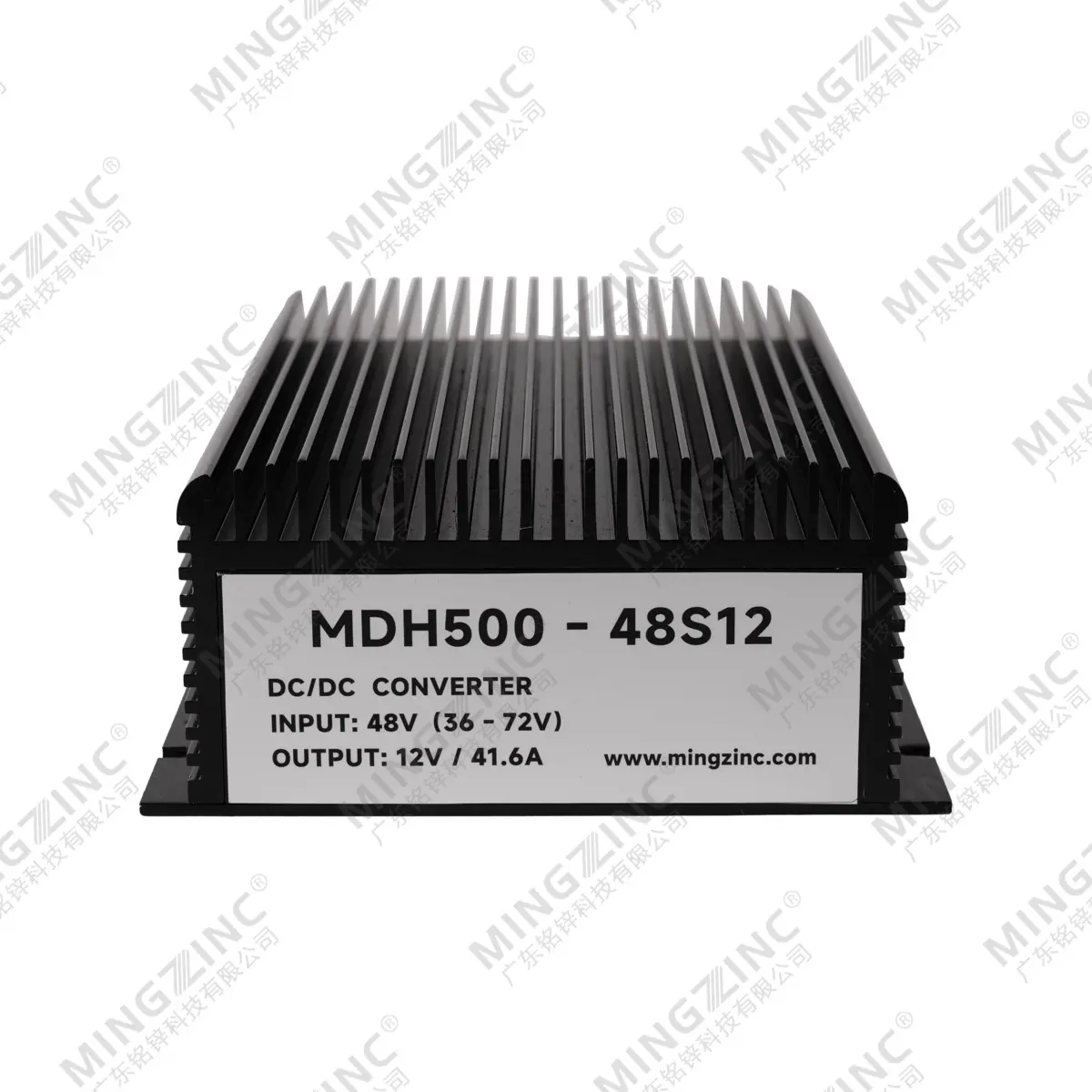

MDH500-48S12 |
36-72VDC |
48VDC |
12VDC |
41.6A |
500W |
88% |
|
MDH500-48S24 |
36-72VDC |
48VDC |
24VDC |
20.8A |
500W |
89% |
|
MDH500-110S12 |
66-154VDC |
110VDC |
12VDC |
41.6A |
500W |
89% |
|
MDH500-110S24 |
66-154VDC |
110VDC |
24VDC |
20.8A |
500W |
89% |
|
MDH500-600S12 |
400-800VDC |
600VDC |
12VDC |
41.6A |
500W |
88% |
|
MDH500-600S24 |
400-800VDC |
600VDC |
24VDC |
20.8A |
500W |
89% |
|
MDH500-600S110 |
400-800VDC |
600VDC |
110VDC |
4.5A |
500W |
89% |
Only the typical models are listed. If you need another moders,please inform the power,input and output voltage, then feel free to call us.
II. FEATURES
|
1 |
Fast dynamic response |
|
2 |
Good heat dissipation with beautiful appearance |
|
3 |
High efficiency |
|
4 |
Natural cooling Additional radiator available |
|
5 |
High and low voltage inputs selectable |
|
6 |
Attractive outline design |
|
7 |
Can be used in the solar photovoltaic industry |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
24VDC |
18-36 VDC |
|
48VDC |
36-72VDC |
|
110VDC |
66-154VDC |
|
600VDC |
400-800VDC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
400-500W |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current |
5-60A |
|
Output Voltage |
12-110VDC |
|
Output Voltage Range |
±10% |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
Switching Frequency |
100-200KHz |
|
lsolation Resistance |
200MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military l |
-55 – +105℃ |
|

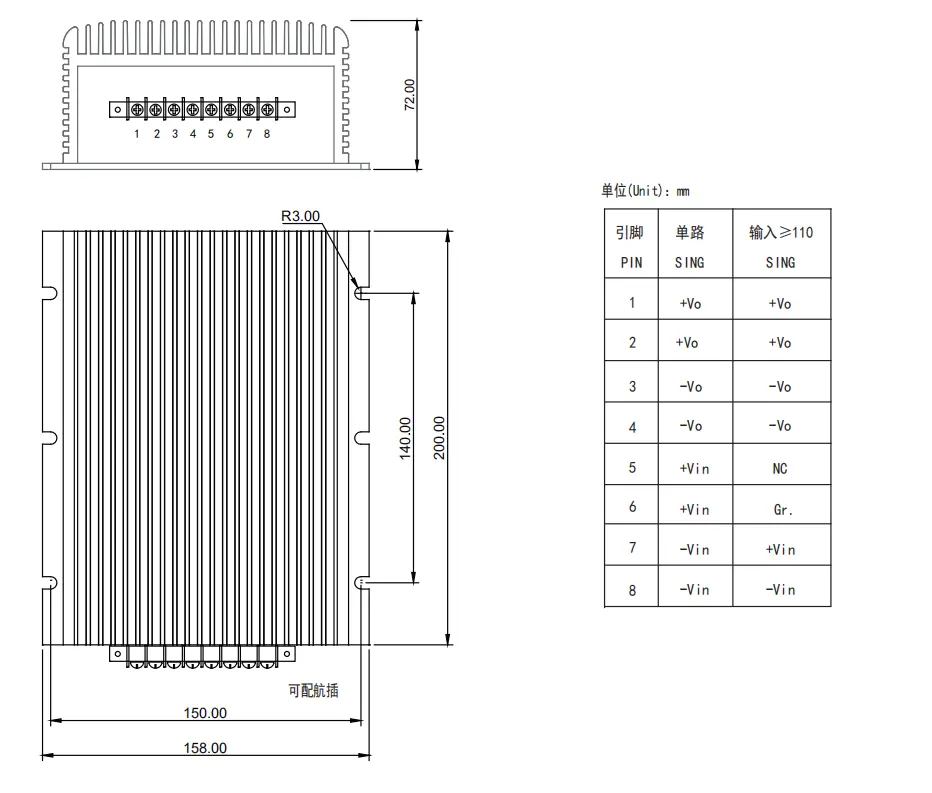

VI. MECHANICAL DRAWING AND PIN DEFINITION
