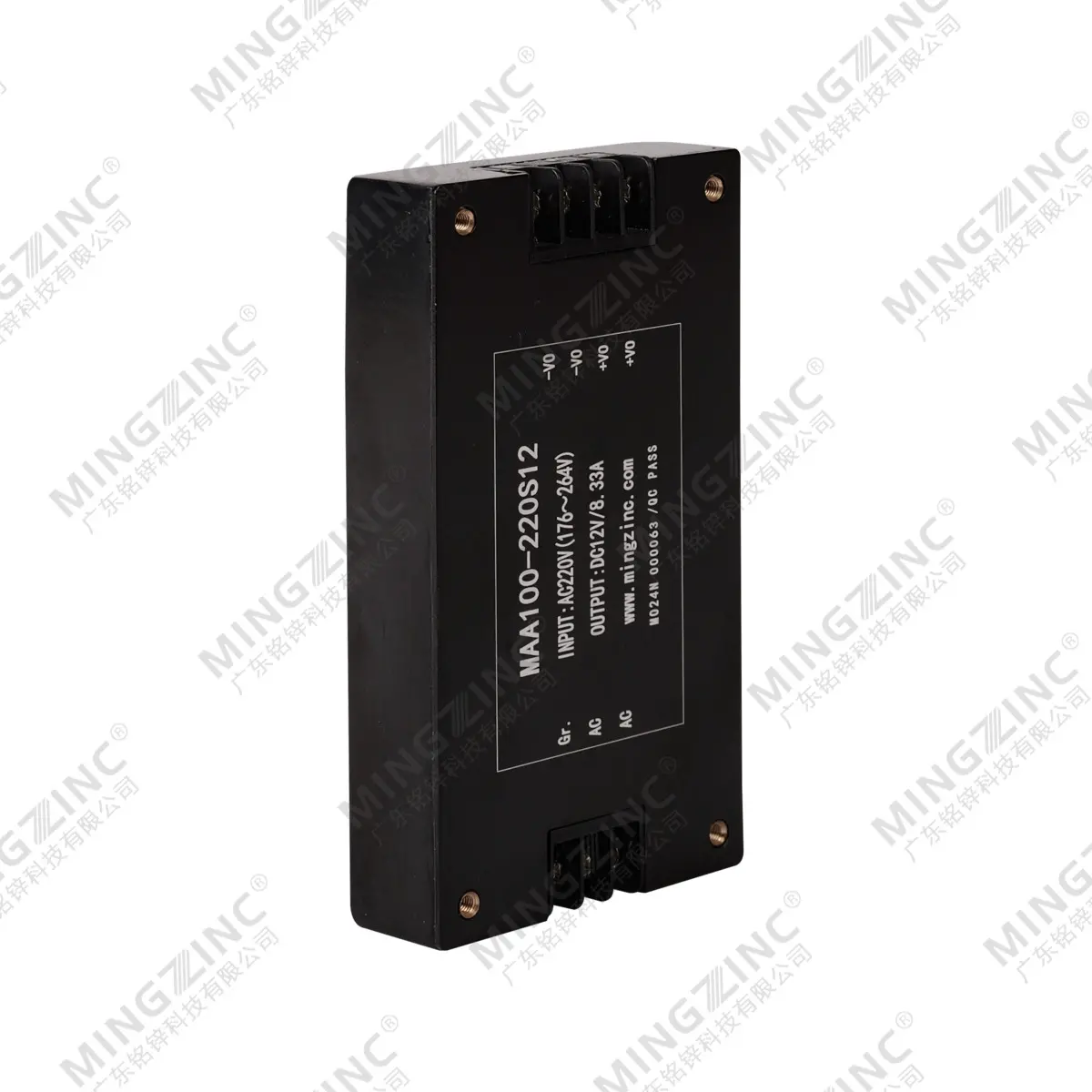

MAA30-100W Series Isolated AC-DC Converters Modules
Products
Video Description
I. MODELS LIST
Single Channels Output
|
Model |
Input Voltage Range |
Input Voltage Rating |
Output Voltage |
Output Current |
Output Power |
Efficiency (Typ) |
|
MAA75-220S05 |
176-264VAC |
220VAC |
05VDC |
15A |
75W |
83% |
|

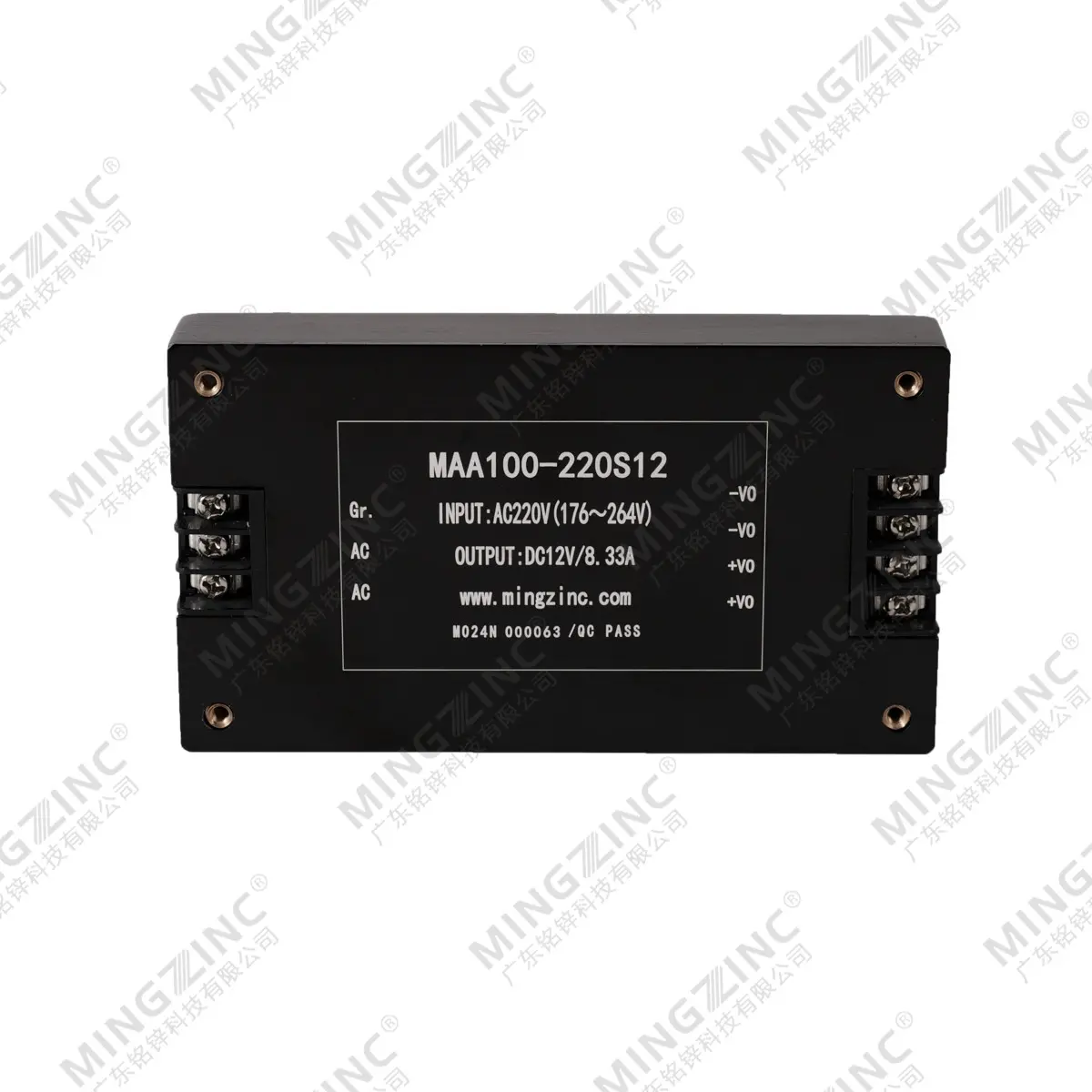

MAA100-220S12 |
176-264VAC |
220VAC |
12VDC |
8.3A |
100W |
84% |
|
MAA100-220S24 |
176-264VAC |
220VAC |
24VDC |
4.16A |
100W |
85% |
|
MAA100-220S48 |
176-264VAC |
220VAC |
48VDC |
2A |
100W |
85% |
Dual Channels Output
|
Model |
Input Voltage Range |
Input Voltage Rating |
Output Voltage |
Output Current(A) |
Output Power |
Efficiency (Typ) |
|
MAA30-220D05&12 |
176-264VAC |
220VAC |
05&12VDC |
3A&1.25A |
30W |
83% |
Only the typical models are listed. If you need other models. please inform the power . input voltage and output voltage ,then feel free to call us.
II. FEATURES
|
1 |
Broadband noise filter of input |
|
2 |
Surge suppress circuit of input |
|
3 |
Comply with UL 1950,IEC950 safety regulation |
|
4 |
Attractive outline design |
|
5 |
Terminal connection method |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VAC) |
Voltage Range(VAC) |
|
220 VAC |
176-264 VAC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
30-100W |
|
Output Voltage |
5-48VDC |
|
Output Current |
2-15A |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
Switching Frequency |
100-200KHz |
|
Isolation Resistance |
200MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>1500VAC/1 min leakage current ＜5mA |
|
Input-Case |
＞1500VAC/1 min leakage current ＜5mA |
|
Output-Case |
＞500VDC/1 min |
|
Main-Vice |
＞500VDC/1 min |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military l |
-55 – +105℃ |
|

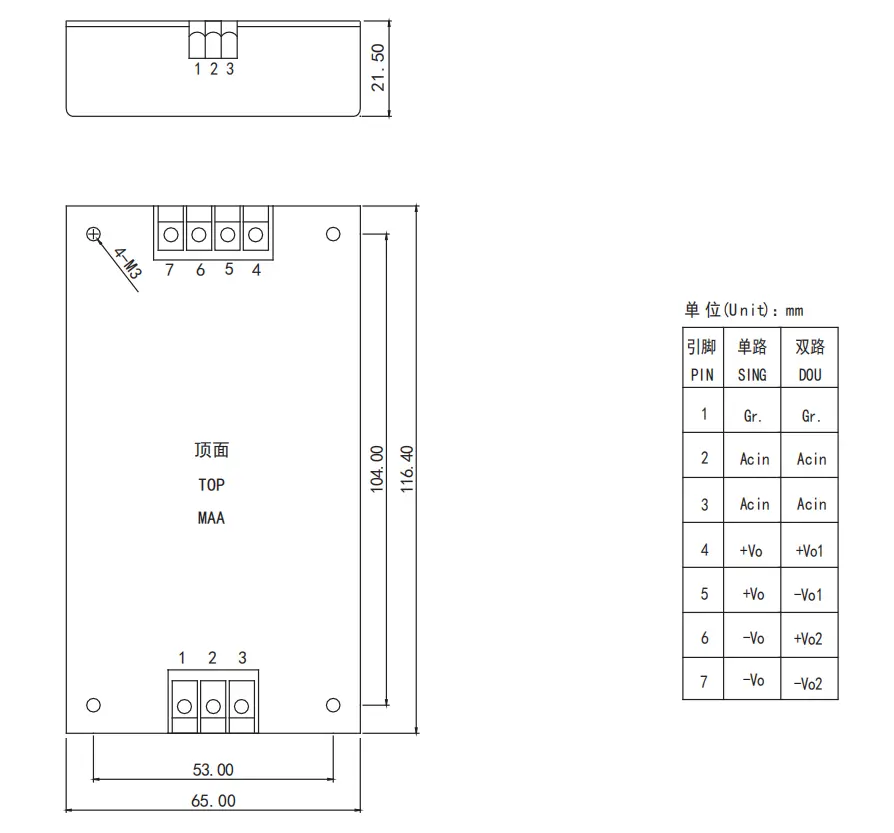

VI. MECHANICAL DRAWING AND PIN DEFINITION
