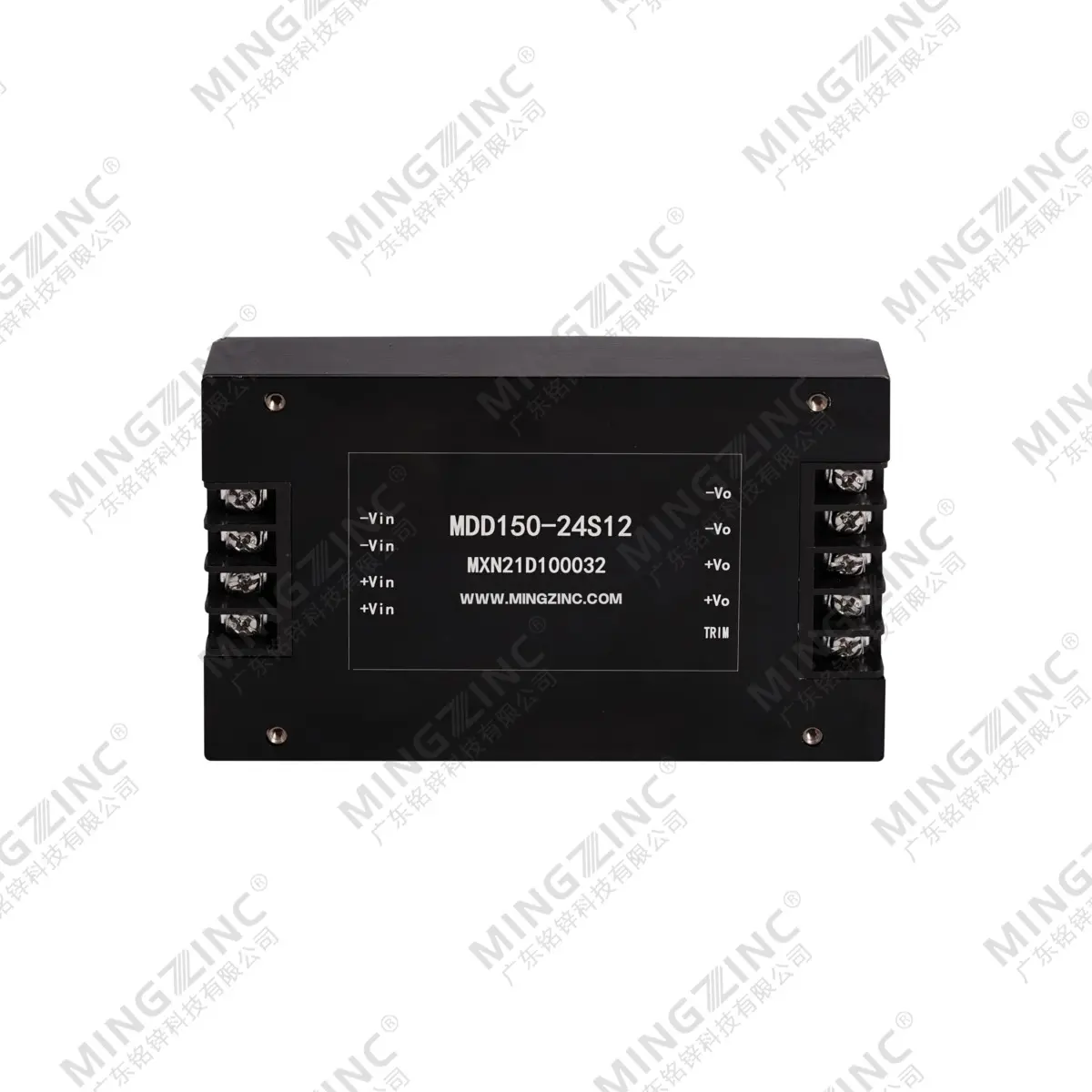

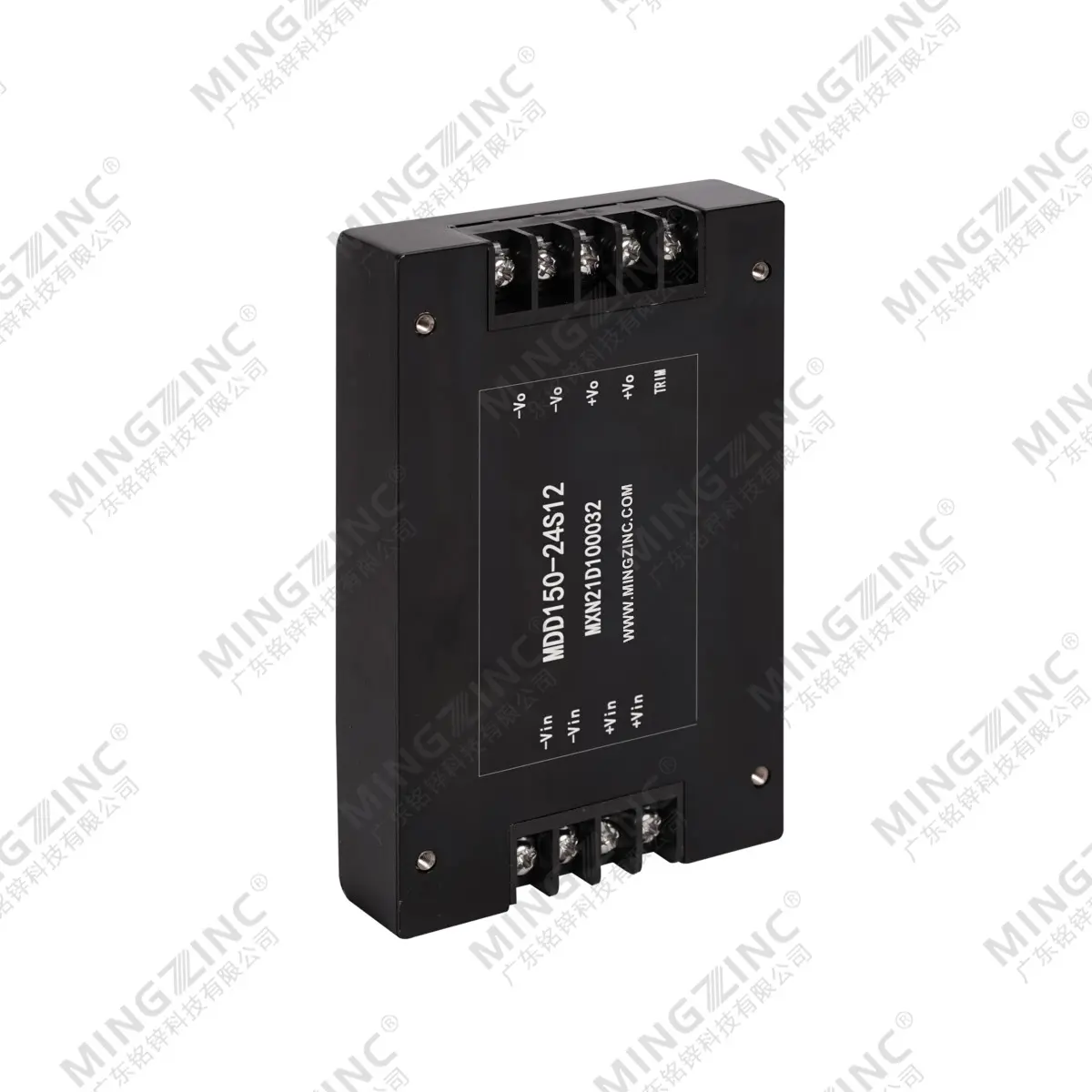

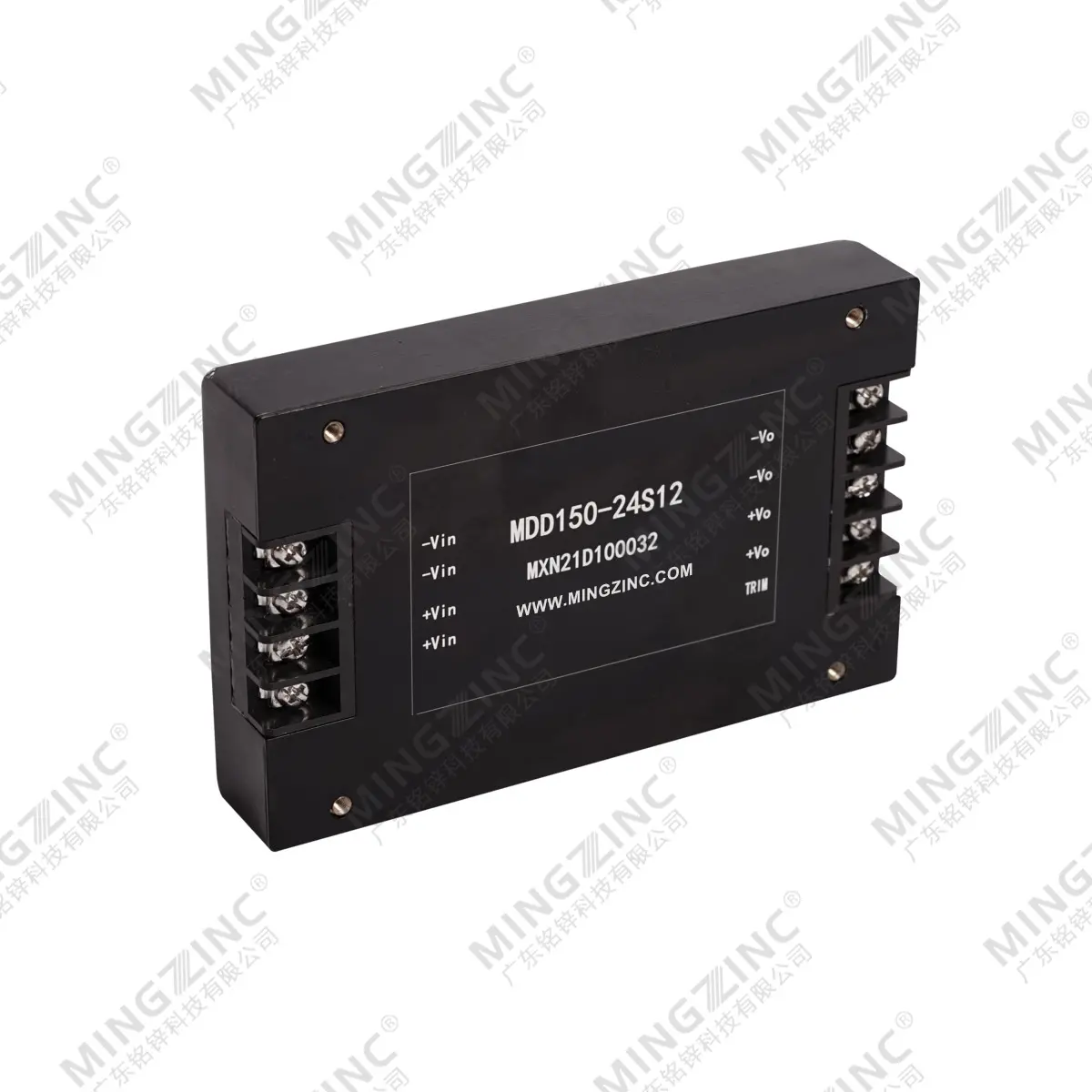

MDD40-200W Series Isolated DC-DC Converters Modules
Products
Latest News
Video Description
I. MODELS LIST
Single Channels Output
|
Model |
Input Voltage Range |
Input Voltage Rating |
Output Voltage |
Output Current |
Output Power |
Efficiency (Typ) |
|
MDD75-550S24 |
200-800VDC |
500VDC |
24VDC |
3.13A |
75W |
78% |
|
MDD100-600S12 |
400-800VDC |
600VDC |
12VDC |
8.33A |
100W |
80% |
|
MDD40-650S15 |
100-1200VDC |
650VDC |
15VDC |
2.67A |
40W |
76% |
|
MDD100-800S24 |
300-1300VDC |
800VDC |
24VDC |
4.16A |
100W |
86% |
Only the typical models are listed. If you need another models, Please inform the power, Input and output voltage,then feel free to call us.
II. FEATURES
|
1 |
Fast dynamic response |
|
2 |
Good heat dissipation with beautiful appearance |
|
3 |
High efficiency |
|
4 |
Natural cooling Additional radiator available |
|
5 |
High and low voltage inputs selectable |
|
6 |
Attractive outline design |
|
7 |
Can be used in the solar photovoltaic industry |
Condition: All specifications are tested under the room temperature 25 ℃, Normal input voltage and Pure Negative Normal Load
III. INPUT CHARACTERISTIC
|
Rated value(VDC) |
Voltage Range(VDC) |
|
550 VDC |
200-800 VDC |
|
600VDC |
400-800 VDC |
|
650VDC |
100-1200 VDC |
|
800VDC |
300-1300VDC |
IV. OUTPUT CHARACTERISTIC
|
Parameter |
Value |
|
Power |
40-200W |
|
Voltage Set-point Accuracy |
±2% |
|
Output Current |
2-20A |
|
Output Voltage |
5-48VDC |
|
Output Voltage Range |
±10% |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Output Current Limiting |
120%(Typ) |
V. PROTECTIVE CHARACTERISTIC
|
1 |
Input under voltage protection |
|
2 |
Input over voltage protection |
|
3 |
Over temperature protection |
|
4 |
Output over current protection |
|
5 |
Output short circuit protection |
GENERAL CHARACTERISTIC
|
Parameter |
Value |
|
Switching Frequency |
100-200KHz |
|
lsolation Resistance |
200MΩ |
lsolation Voltage
|
Parameter |
Value |
|
Input-Output |
>1500VDC |
|
Input-Case |
>1050VDC |
|
Output-Case |
>500VDC |
Environmental Characteristics
|
Parameter |
Value |
|
|
Case Temperature |
Industry |
-25 – +85℃ |
|
Military l |
-40 – +85℃ |
|
|
Military II |
-55 – +85℃ |
|
|
Storage Temperature |
Industry |
-45 – +105℃ |
|
Military l |
-55 – +105℃ |
|

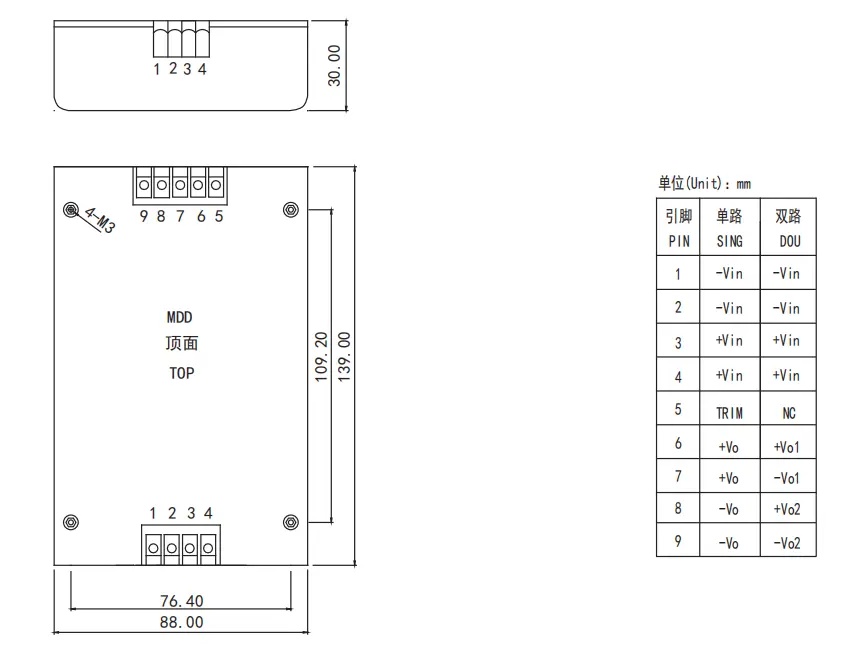

VI. MECHANICAL DRAWING AND PIN DEFINITION
